神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-049) - VALVE ASSY, SHUTTLE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
502 次

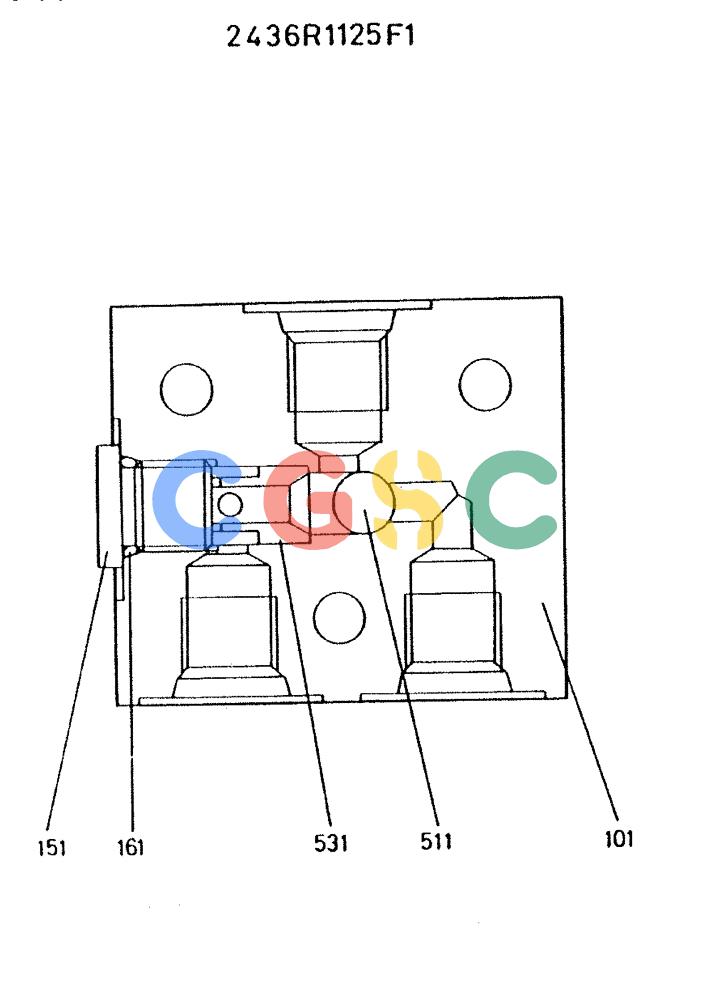

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R1125F1 | [1] | VALVE, SHUTTLE ASSY,CONSISTS OF THE FOLLOWING PARTS | VALVE, SHUTTLE ASSY,CONSISTS OF THE FOLLOWING PARTS |
| 101. | 2436R1125S101 | [1] | CASING | |
| 151. | 2436U585S651 | [1] | PLUG | KOB Superseded by part number: YT30V00009S153 |
| 161. | ZD12P01000 | [1] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 511. | 2483U172S19 | [1] | BALL | KOB |
| 531. | 2436R1125S531 | [1] | SEAT | KOB |
