神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-050) - JOINT ASSY, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
117 次

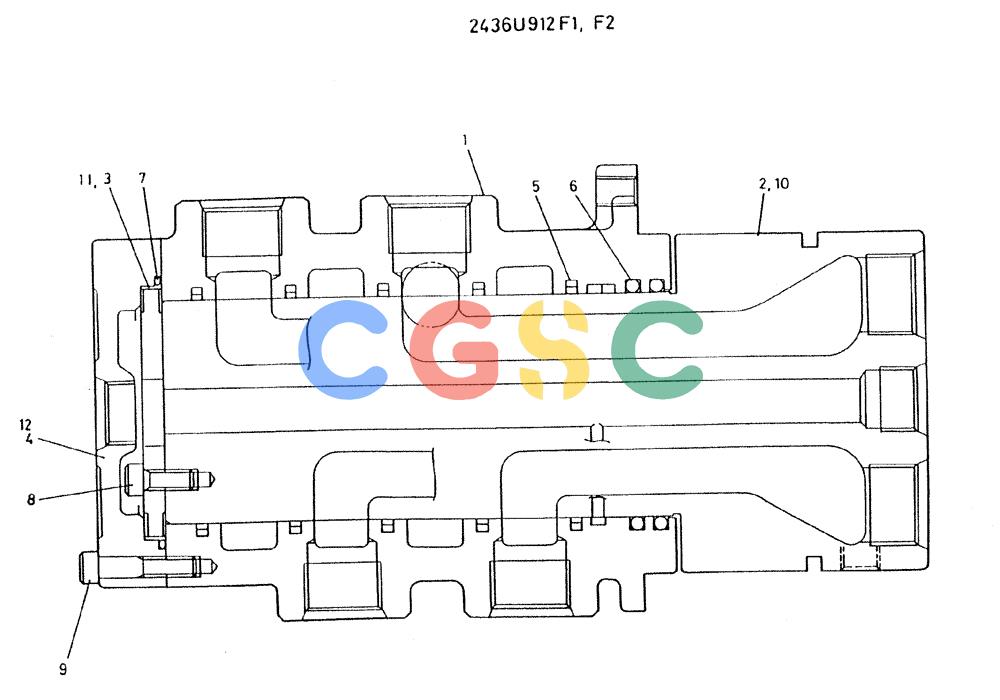

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U912F1 | [1] | JOINT ASSY, SWIVEL, CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436U912F2 | [1] | JOINT, SWIVEL ASSY, CONSISTS OF THE FOLLOWING PARTS | JOINT, SWIVEL ASSY, CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2436U912S1 | [1] | BODY | |
| 2. | 2436U912S2 | [1] | STEM F2 ONLY | STEM F2 ONLY |
| 3. | 2436U912S3 | [1] | PLATE, THRUST F2 ONLY | PLATE, THRUST F2 ONLY |
| 4. | 2436U912S4 | [1] | COVER, F2 ONLY | |
| 5. | 2436U912S5 | [5] | SEAL | KOB Superseded by part number: 2445Z1116 |
| 6. | 2436U912S6 | [2] | O-RING | O-RING |
| 7. | ZD11G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 104.40 ± 0.87 x OD 110mm |
| 8. | ZS23C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08040 | [4] | SCREW,Hex Socket Head, M8 x 40mm | KOBM08x1.25x40mm Superseded by part number: ZS28C08040 |
| 10. | 2436U912S10 | [1] | STEM, F1 ONLY | |
| 11. | 2436U912S11 | [1] | PLATE, THRUST, F1 ONLY | |
| 12. | 2436U912S12 | [1] | COVER | |
| . . | 2436U912R10 | [1] | SEAL KIT | KOBREPAIR,CONSISTS OF ITEM 5 - 7 |
