神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (02-007) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
644 次

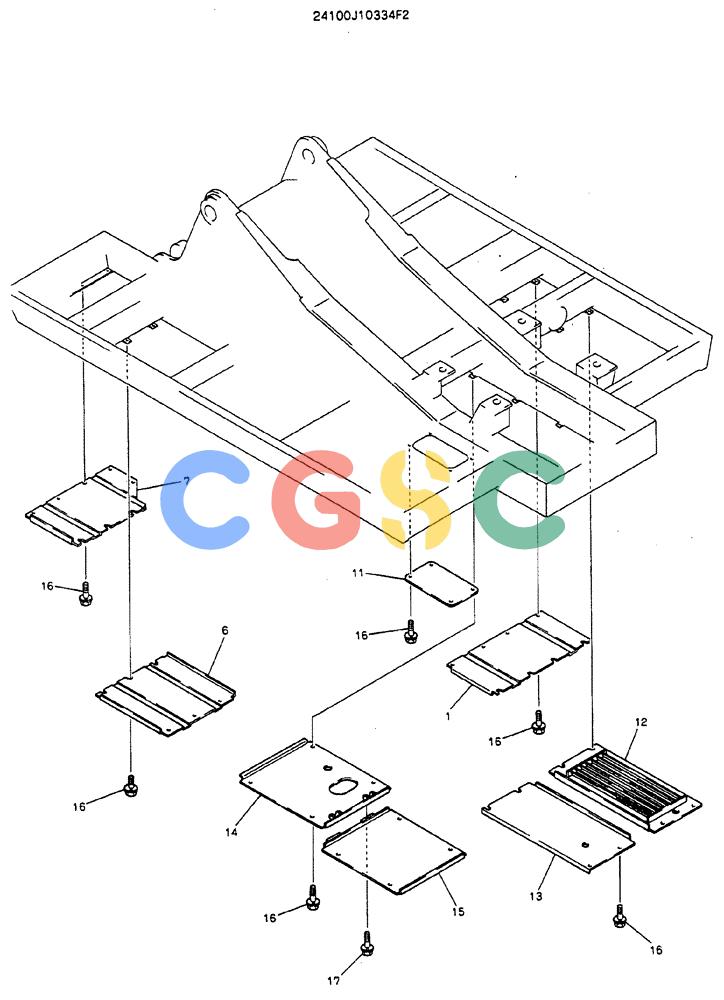

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10334F2 | [1] | COVER ASSY | KOB |
| 1. | 2414P6471 | [1] | COVER | KOB |
| 6. | 2414P6469 | [1] | COVER | KOB |
| 7. | 2414P6470 | [1] | COVER | KOB |
| 11. | 2414T3343 | [1] | COVER | KOB |
| 12. | 2414P6771 | [1] | COVER | KOB |
| 13. | 2414P6772 | [1] | COVER | KOB |
| 14. | 2414P6773 | [1] | COVER | KOB |
| 15. | 2414P6774 | [1] | COVER | KOB |
| 16. | 2420T6787 | [42] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 17. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
