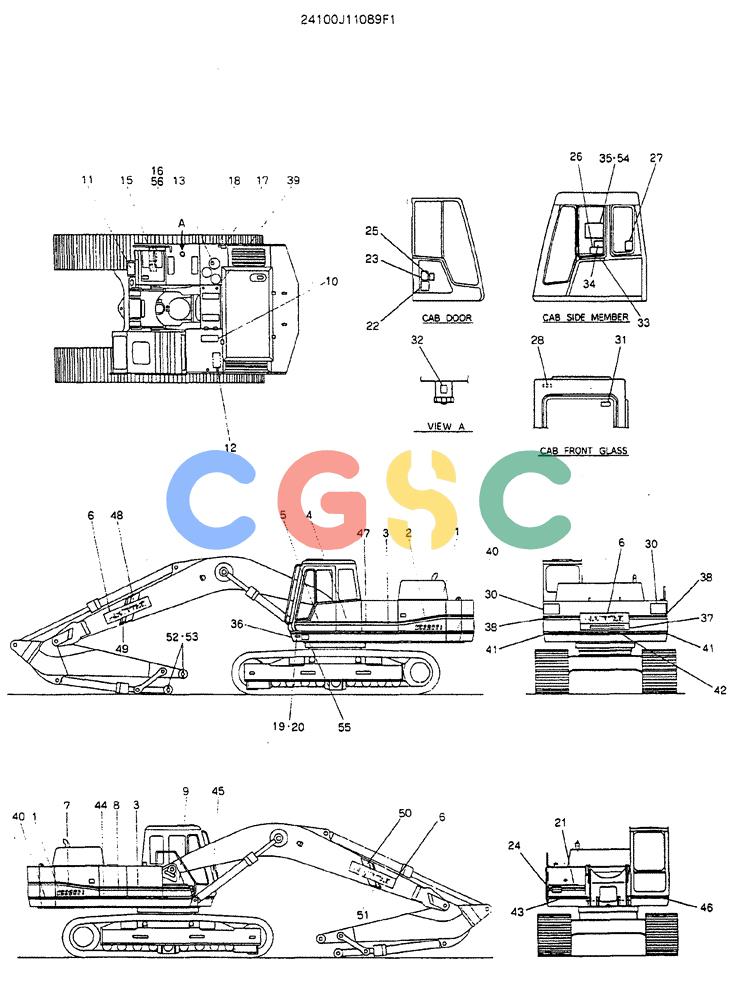

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (10-001) - LABEL, NAME-PLATE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11089F1 | [1] | LABEL | KOB |
| 1. | 2432J1403 | [2] | LABEL | KOB |
| 2. | 2432T4267 | [1] | LABEL | KOB |
| 3. | 2432P1071D10 | [2] | LABEL | KOB |
| 4. | 2432P1071D2 | [1] | LABEL | KOB |
| 5. | 2432T3898 | [1] | LABEL | KOB |
| 6. | 2432J1364 | [3] | LABEL | KOB |
| 7. | 2432T4268 | [1] | LABEL | KOB |
| S. | 2432P1071D6 | [1] | LABEL | LABEL |
| 9. | 2432T3897 | [1] | LABEL | KOB |
| 10. | 2427Z329D2 | [7] | SHEET | KOBAnti-Slip (400x150mm) |
| 11. | 2427Z329 | [1] | SHEET | KOBAnti-Slip (300x150mm) |
| 12. | 2432T1142D3 | [2] | LABEL | KOB |
| 13. | 2432P1064 | [1] | LABEL | KOB |
| 15. | 2432N2054 | [1] | LABEL | KOB |
| 16. | 2432P1054 | [1] | LABEL | KOBYC0301, Serial Range: -YC0701 |
| 17. | 2432T1202 | [1] | PLATE | KOBLABEL |
| 18. | 2432T1231 | [1] | DATA PLAQUE | KOBDecal, Warning - |
| 19. | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 20. | 2432T2526 | [1] | NAME PLATE | NAME PLATE |
| 21. | 2432P1071D1 | [1] | LABEL | KOB |
| 22. | 2432T1759 | [1] | PLATE | KOB |
| 23. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 24. | 2432P1071D13 | [1] | LABEL | KOB |
| 25. | 2432T1426 | [1] | PLATE, CAUTION YC0301, Serial Range: -YC0623 | PLATE, CAUTION YC0301, Serial Range: -YC0623 |
| 26. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 27. | 2432P1065 | [1] | LABEL | KOB |
| 28. | 2432T2341 | [1] | LABEL | KOB |
| 30. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 31. | 2432T892 | [1] | LABEL | KOBPLATE, CAUTION (FRONT WINDOW LOCK) |
| 32. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 33. | 2432T2342 | [1] | LABEL | LABEL |
| 34. | 2432T2532 | [1] | LABEL | KOB |
| 35. | 2432N2055 | [1] | LABEL | KOBYC0301, Serial Range: -YC0596 |
| 36. | 2422T582 | [1] | REWORKS, FRAME | |
| 37. | 2432P1062 | [1] | LABEL | LABEL |
| 38. | 2432P1071D14 | [2] | LABEL | KOB |
| 39. | 2418T10311 | [2] | PLATE | KOBØ30mm round Superseded by part number: 2418T27058 |
| 40. | 2432P1072D19 | [2] | LABEL | KOB |
| 41. | 2432P1072D7 | [2] | LABEL | KOB |
| 42. | 2432P1072D18 | [1] | LABEL | LABEL |
| 43. | 2432P1072D20 | [1] | LABEL | LABEL |
| 44. | 2432P1072D21 | [1] | LABEL | KOB |
| 45. | 2432P1072D6 | [1] | LABEL | LABEL |
| 46. | 2432P1072D7 | [1] | LABEL | KOB |
| 48. | 2432T4032 | [1] | LABEL | KOB |
| 49. | 2432T3918 | [1] | LABEL | KOB |
| 50. | 2432T3916 | [1] | LABEL | KOB |
| 51. | 2432T3917 | [1] | LABEL | KOB |
| 52. | ZS18C20160 | [2] | SCREW,Hex, M20 x 160mm | KOBM20x2.50x160mm |
| 53. | ZN18C20016 | [4] | NUT | KOBM20x2.5mm |
| 54. | 2432N2397 | [1] | LABEL YC0597 to | LABEL YC0597 to |
| 55. | 2432P2434 | [1] | LABEL | KOBDecal, Danger - Death or injury may result from …, Start Serial: YC0624 Superseded by part number: YN20T01006P1 |
| 56. | 2432P2476 | [1] | LABEL | KOBDecal, Precautions - Avoid death or serious injury …, Start Serial: YC0702 |
