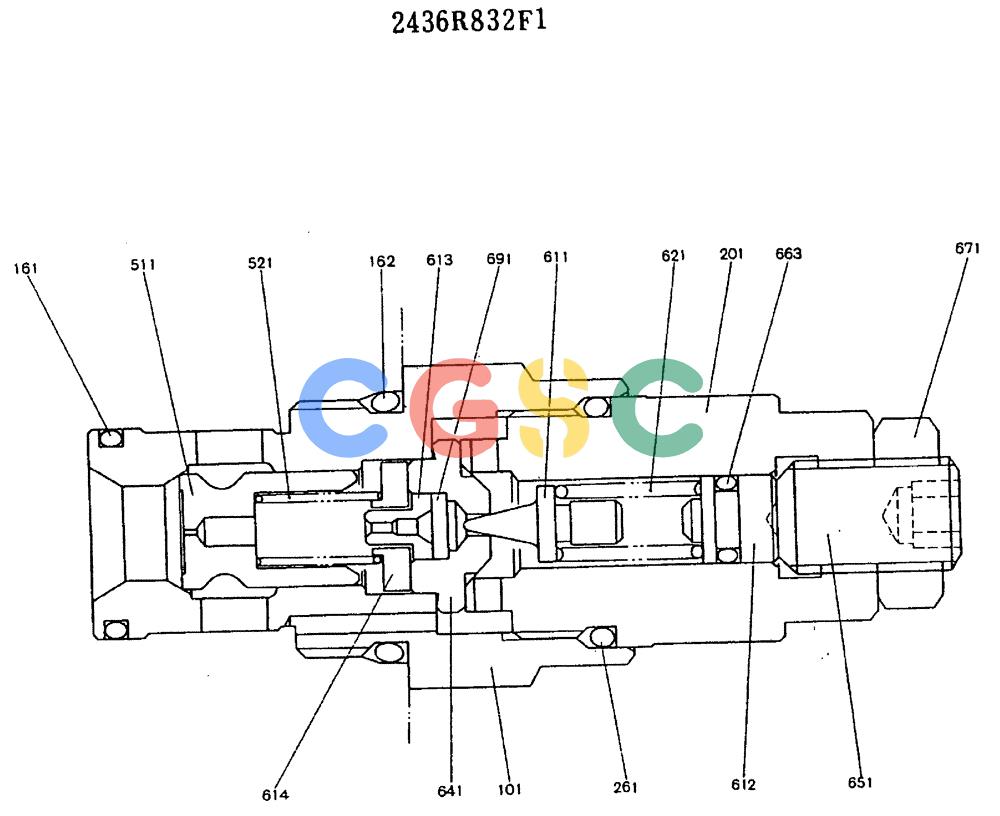

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-007) - VALVE ASSY, RELIEF (PROPELLING) 2436R832 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R832F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 521. | 2436R682S211 | [1] | SPRING | KOB |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING |
| 614. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING |
| 621. | 2436R683S1 | [1] | SPRING | KOB |
| 663. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 671. | ZN11C12007 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| . . | 2436R832R100 | [1] | REPAIR KIT CONSISTS OF REF 101, 511 | |
| . . | 2436R832R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF 613, 641, 691 |
