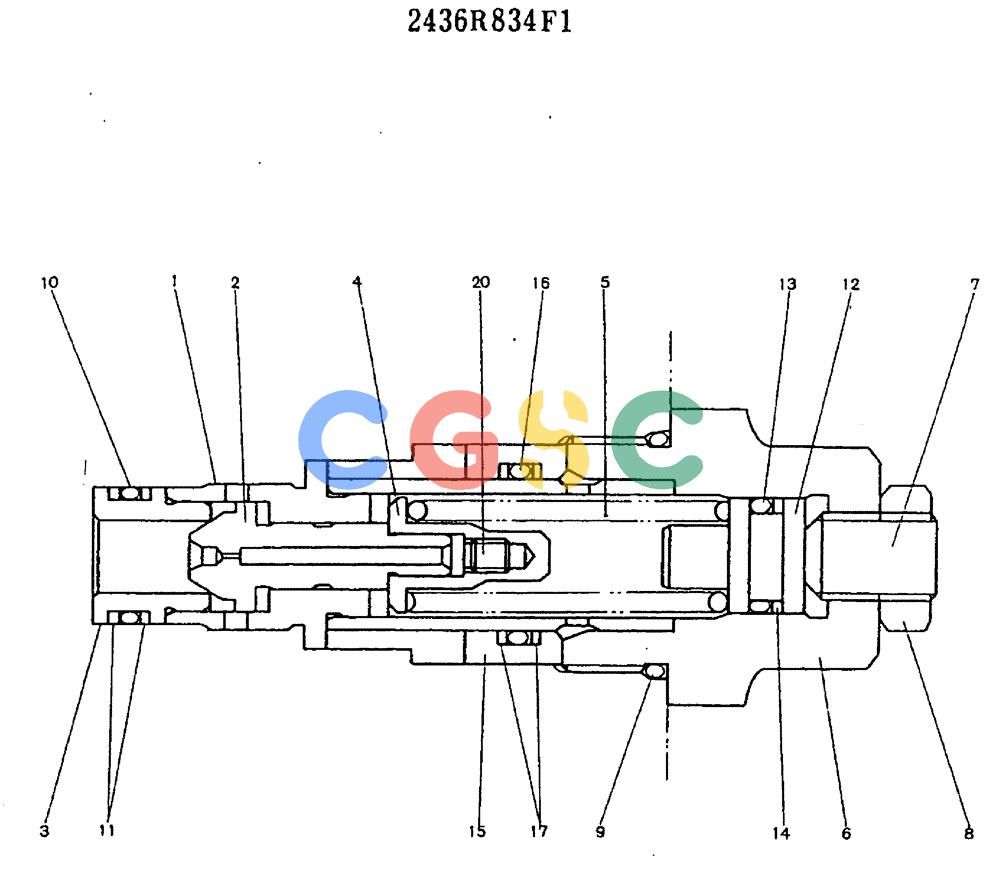

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-008) - VALVE ASSY, RELIEF 2436R834 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R834F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT POPPET |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 9. | 2436R282S1 | [1] | O-RING | KOB Superseded by part number: 2436U388S42 |
| 10. | ZD11P01500 | [1] | O-RING | KOB |
| 11. | ZD85P01500 | [2] | RING | KOB |
| 13. | ZD12P01250 | [1] | O-RING | KOBID 12.3mm X OD 14.7mm |
| 14. | ZD85P01250 | [1] | BACK-UP RING | KOBID 12.50 x OD 16.50 x Th 1.25mm |
| 16. | ZD12P02100 | [1] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 17. | ZD85P02100 | [2] | RING | KOBBack-Up -- ID 21 x OD 25 x Th 1.25mm |
