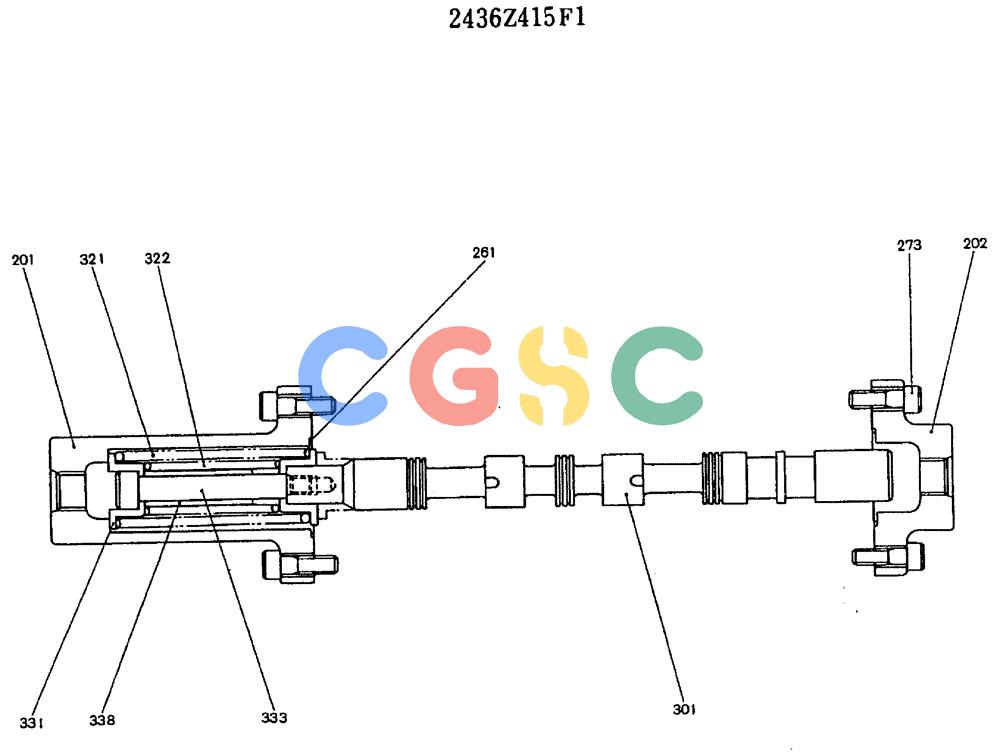

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-022) - SPOOL ASSY 2436Z415 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
489 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436Z415F1 | [1] | SPOOL | KOBCONSISTS OF THE FOLLOWING PARTS |
| 201. | 2436U1434S201 | [1] | COVER | |
| 202. | 2436U1434S202 | [1] | COVER | COVER |
| 261. | 2436U1457S162 | [2] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 273. | ZS23C08025 | [4] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 301. | 2436Z415S301 | [1] | SPOOL | |
| 321. | 2436U1434S321 | [1] | SPRING | |
| 322. | 2436U1434S322 | [1] | SPRING | |
| 331. | 2436U1434S331 | [2] | SPRING SEAT | KOB |
| 333. | 2436U1434S333 | [1] | SET SCREW | KOB |
| 338. | 2436U1434S338 | [1] | STOP | KOB |
