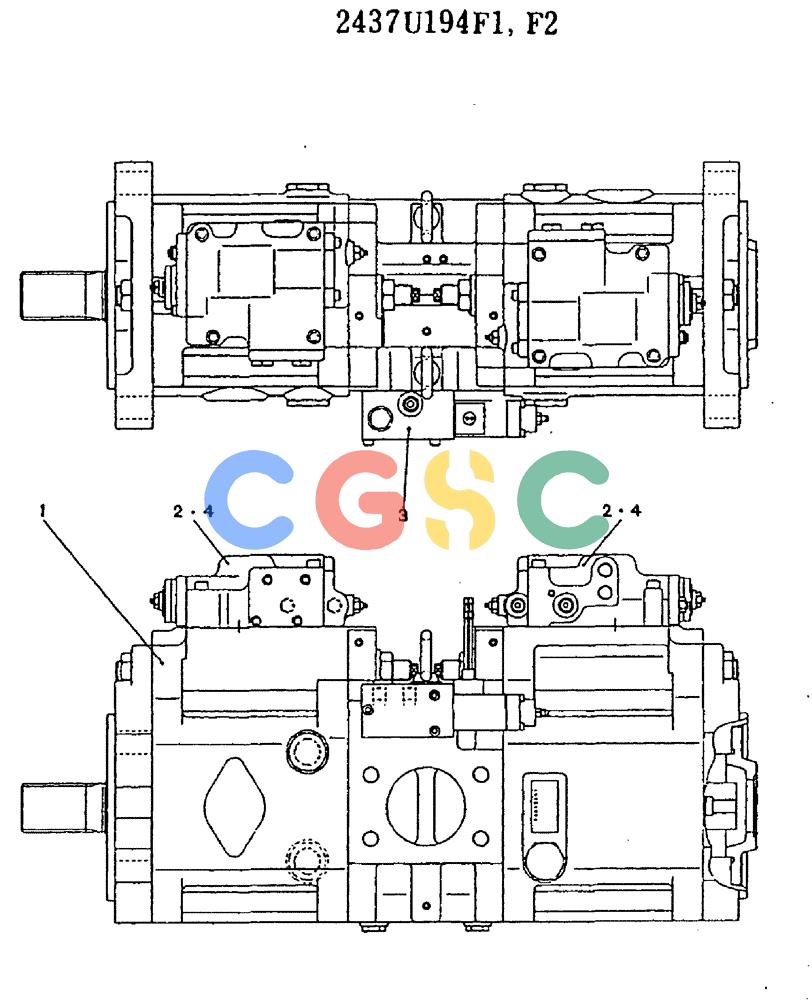

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (11-023) - PUMP ASSY 2437U194 F1, F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U194F1 | [1] | HYDRAULIC PUMP | KOBASSY, CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2437U194F2 |
| . . | 2437U194F2 | [1] | HYDRAULIC PUMP | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2437U214F1 | [1] | PUMP ASSY | PUMP ASSY |
| 2. | 2436U1380F1 | [2] | REGULATOR FOR F1 ONLY | REGULATOR FOR F1 ONLY |
| 3. | 2436U1320F1 | [1] | VALVE | KOB |
| 4. | 2436U1380F2 | [2] | REGULATOR | KOBFOR F2 ONLY |
