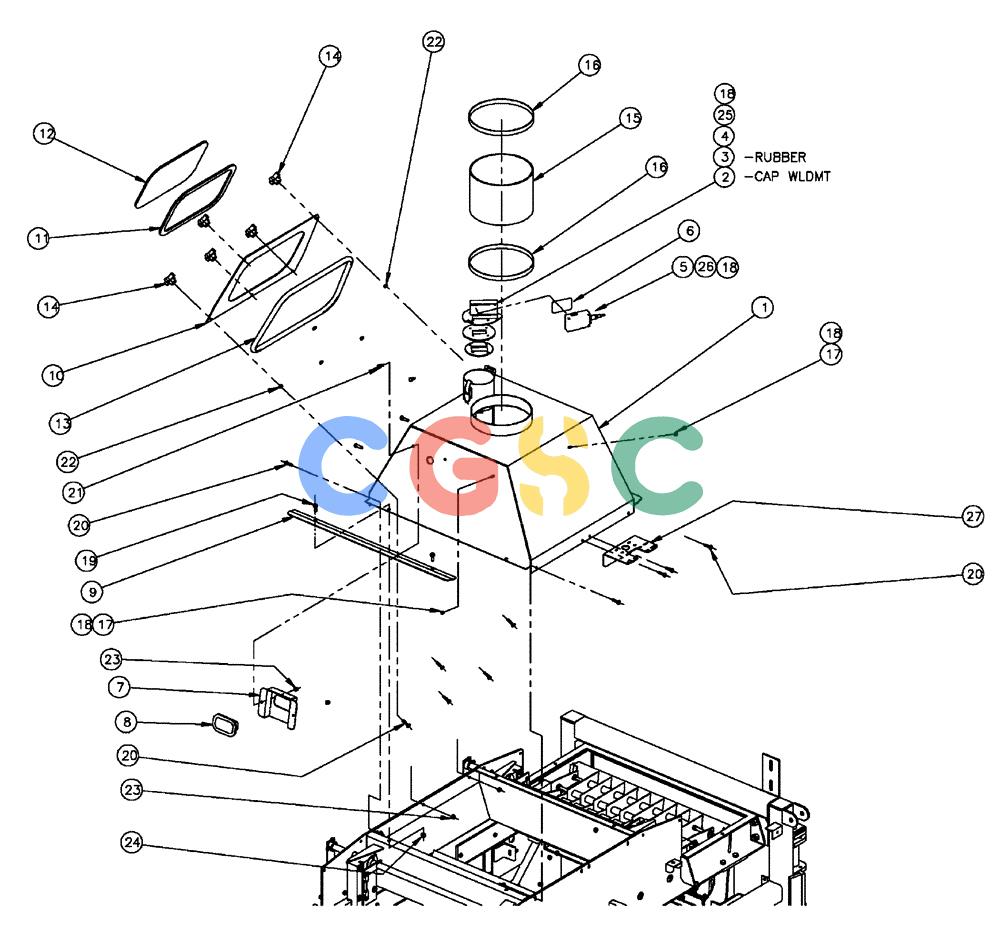

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-010) - HOPPER GROUP, FLEX, 60’ & 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86986109
|
[1] |
HOPPER
|
TYR
Superseded by part number: 84235791
|
| 2. |
86986111
|
[1] |
CAP
|
BN
Cap, RH Mount
|
| 3. |
86986115
|
[1] |
RUBBER SLEEVE
|
BN
Rubber
|
| 4. |
86986114
|
[1] |
PLATE
|
BN
Retainer
|
| 5. |
BN322583
|
[1] |
SENSOR
|
BN
See Fig 13-014
|
| 6. |
BN321167
|
[1] |
GASKET
|
BN
Sensor Cushion
|
| 7. |
BN310644
|
[1] |
MOUNTING PLATE
|
BN
W/M, Bin Lights
|
| 8. |
BN310648
|
[1] |
LIGHT
|
BN
|
| 9. |
BN306990
|
[2] |
STRAP
|
BN
Cover Holddown
|
| 10. |
BN63535
|
[1] |
COVER
|
TYR
Hopper Access
|
| 11. |
84167814
|
[1] |
RUBBER SEAL
|
BN
Conveyor Access
|
| 12. |
87265980
|
[1] |
WINDOW
|
BN
Hopper 12" x 8"
|
| 13. |
BN68012
|
[1] |
SEAL
|
BN
Cover, Conv Access
|
| 14. |
BN313479
|
[5] |
KNOB
|
BN
1/4-20 SS Insert
|
| 15. |
BN69181
|
[1] |
HOSE
|
BN
8" ID x 6.00, Flexible
|
| 16. |
BN85062
|
[2] |
HOSE CLAMP
|
BN
8"
|
| 17. |
BN9990114
|
[2] |
STRAP
|
BN
"Eye Ty" 06205 3M
|
| 18. |
BN310266
|
[8] |
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
|
BN
|
| 19. |
BN50476
|
[4] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 20. |
BN50671
|
[12] |
BOLT,1/4"-20 x 1.00", Stainless Steel
|
BN
|
| 21. |
BN50697
|
[4] |
BOLT,Hex, 1/4" - 20 x 1/2", SST
|
BN
|
| 22. |
BN50054
|
[5] |
NUT,1/4"-20, SS
|
A
|
| 23. |
BN55359
|
[11] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 24. |
BN55361
|
[4] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 25. |
BN2407985
|
[4] |
SCREW,Hex, #10 - 24 x 3/4"
|
BN
10-24 x 3/4", HH, SST
|
| 26. |
BN316803
|
[2] |
SCREW,#10 - 24 x 1 1/2", SST
|
BN
Mach-#10-24 X 1.5SS
|
| 27. |
87266013
|
[1] |
PLATE
|
BN
Solenoid Valve Mount
|
