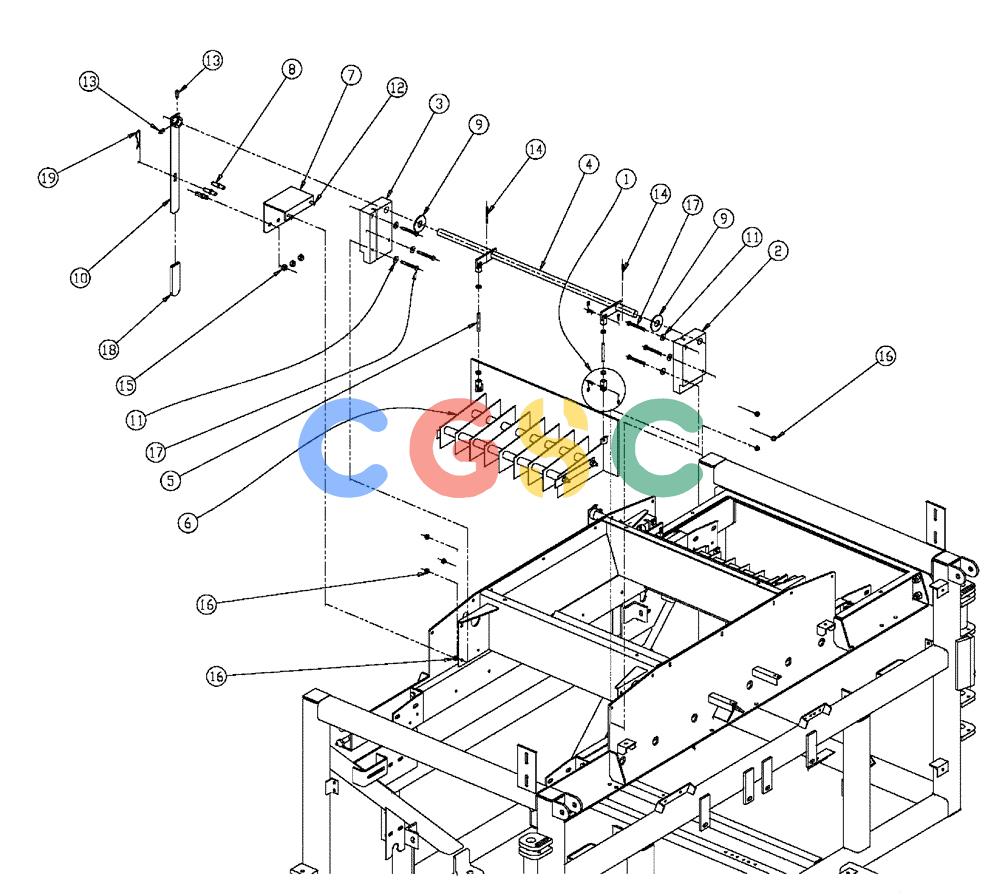

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (01-011) - GATE GROUP, FLEX, 60’ & 70 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300254
|
[8] |
KIT
|
BN
Clevis, .31 Rod
|
| 2. |
BN306615
|
[2] |
SLIDE
|
BN
Meter Gate, RH
|
| 3. |
BN306616
|
[2] |
SLIDE
|
BN
Meter Gate, LH
|
| 4. |
BN307008
|
[2] |
SHAFT
|
BN
Gate
|
| 5. |
BN307011
|
[4] |
ROD
|
BN
Threaded, 5/16, SS
|
| 6. |
BN307012
|
[2] |
GATE ASSY
|
BN
|
| 7. |
BN307046
|
[2] |
MOUNT
|
BN
Mount, Gate Adjust
|
| 8. |
BN307047
|
[6] |
PIN
|
BN
3/8 With Shoulder
|
| 9. |
BN309412
|
[4] |
WASHER,3/4, Stainless Steel
|
BN
|
| 10. |
BN35411
|
[2] |
HANDLE
|
TYR
Gate, Conveyor
|
| 11. |
BN50138
|
[12] |
WASHER,1/4", SS
|
BN
|
| 12. |
BN50212
|
[4] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 13. |
BN50421
|
[4] |
SET SCREW
|
BN
5/16"-18 X 1/2"
|
| 14. |
BN50604
|
[4] |
COTTER PIN
|
BN
1/8 X 1 & 1/2 Superseded by part number: 80708
|
| 15. |
BN50759
|
[6] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 16. |
BN55359
|
[16] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 17. |
BN55379
|
[12] |
BOLT,1/4"-20 X 2-1/4", Stainless Steel
|
BN
|
| 18. |
BN65711
|
[2] |
CAP
|
BN
Rect, 1.25 X. 162 X 4.00
|
| 19. |
BN71007
|
[2] |
CLIP,3/16" Hairpin
|
BN
Hairpin, 3/16" #8
|
