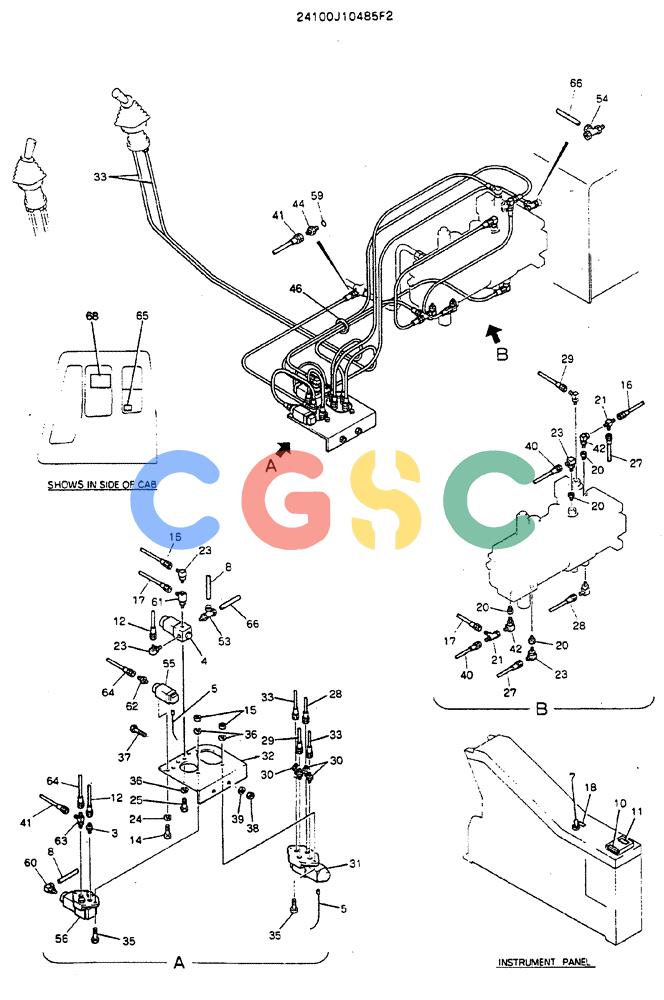

| . . | 24100J10485F2 | [1] | REWORK, CONTROL ASSY | |
| 3. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 4. | 2436U1314F1 | [1] | VALVE | KOB |
| 5. | 2479R1417 | [1] | WIRE HARNESS | KOB |
| 7. | 2479Z1096 | [1] | SWITCH | KOB |
| 8. | ZX15K08014 | [1] | TUBE, NYLON | TUBE, NYLON |
| 10. | 2479U717S6 | [1] | FUSE,10 Amp | KOB10 Amp |
| 11. | 2412T935 | [1] | LABEL | KOB |
| 12. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 14. | ZS13C05050 | [2] | BOLT | BOLT |
| 15. | ZN13C06005 | [4] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 16. | 2420R349D220 | [1] | HOSE,2200.00 mm | KOB Superseded by part number: HX21E04220DX |
| 17. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| 18. | 2432T2527 | [1] | LABEL | KOB, Serial Range: YC0301-YC0573 |
| . . | 2412T980 | [1] | STICKER, Start Serial: YC0574 | STICKER, Start Serial: YC0574 |
| 20. | 2444Z2335 | [4] | CONNECTION | KOB |
| 21. | 2444T3120 | [2] | TEE | KOB |
| 23. | ZH32X04000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 24. | ZW26X05000 | [2] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 25. | ZS23C06016 | [2] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 27. | 2420R349D130 | [1] | FLEXIBLE HOSE | KOB1/4" PF, 1300mm Long (51-3/16 in) |
| 28. | 2420R537D190 | [1] | FLEXIBLE HOSE,9.60mm ID x 1900mm L | KOB1900mm Long (74-13/16 in) Superseded by part number: HX21E06190DX |
| 29. | 2420R537D210 | [1] | HOSE,9.53mm ID x 2100mm L | KOB |
| 30. | ZH42X06000 | [4] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 31. | 2436R732F1 | [1] | SOLENOID VALVE | KOB |
| 32. | 2416P13539 | [1] | BRACKET | KOB |
| 33. | 2420R537D360 | [2] | HOSE,9.60mm ID x 3600mm L | KOB |
| 35. | ZS23C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 36. | ZW22K06000 | [6] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 37. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 38. | ZN13C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 39. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 40. | 2420R349D110 | [1] | HOSE,1100.00 mm | KOB1100mm Long (43-19/64 in) Superseded by part number: HX21E04110DX |
| 41. | ZX56N04150 | [1] | HOSE | HOSE |
| 42. | 2444T3183 | [2] | ELBOW | KOB |
| 44. | ZF23H10004 | [1] | HYD CONNECTOR | KOB |
| 46. | 2432Z290 | [15] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 53. | 2444Z2733 | [1] | TEE | KOB, Serial Range: YC0301-YC0711 |
| . . | 2444T2501D2 | [1] | TEE | KOB, Start Serial: YC0712 |
| 54. | 2444Z2734 | [1] | TEE, Serial Range: YC0301-YC0711 | TEE, Serial Range: YC0301-YC0711 |
| . . | 2444T2501D1 | [1] | TEE | KOB, Start Serial: YC0712 |
| 55. | 2479R1337F1 | [1] | PRESSURE SWITCH | KOB |
| 56. | 2436R757F2 | [1] | VALVE | KOB |
| 59. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 60. | ZH31M08004 | [1] | ELBOW | KOB |
| 61. | 2444T3324 | [1] | TEE | KOB |
| 62. | ZF23G10004 | [1] | HYD CONNECTOR | KOB |
| 63. | 2444Z2538 | [1] | HYD CONNECTOR | KOB |
| 64. | ZX56N04060 | [1] | HOSE | HOSE |
| 66. | ZX15K08250 | [1] | FLEXIBLE HOSE | KOBTUBE, NYLON |
| 68. | 2432N2146 | [1] | LABEL | KOBLABEL |
