神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (03-004) - REWORK, REMOTE CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
660 次

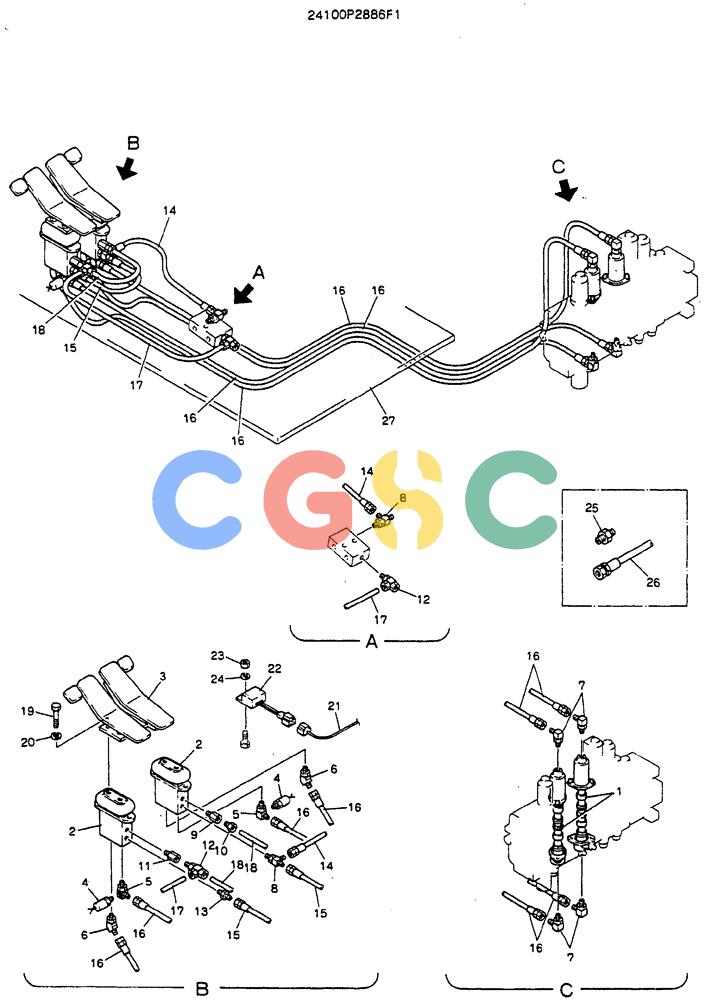

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2886F1 | [1] | REWORK | REWORK |
| 1. | 2436Z415F1 | [2] | SPOOL | KOB |
| 2. | 2436U1354F1 | [2] | PILOT VALVE | KOB |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPEDAL ASSY, SEE FIG 03-005 |
| 4. | 2479Z1099 | [2] | SWITCH | KOB Superseded by part number: 2479Z1099M |
| 5. | 2444Z3336 | [2] | ELBOW | KOB |
| 6. | 2444T3288 | [2] | 45 ELBOW | KOB45° -- (Incls. O-Ring ZD12P01100) |
| 7. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 8. | 2444Z2336 | [2] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 9. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 10. | ZH21M08004 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 11. | 2444Z2516 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 12. | 2444T2501D1 | [2] | TEE | KOB |
| 13. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 14. | 2420R349D100 | [1] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 15. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 16. | 2420R537D350 | [4] | HOSE ASSY.,9.60mm ID x 3500mm L | KOB3500mm Long (137-51/64 in) Superseded by part number: HX21E06350DX |
| 17. | ZX15K08130 | [1] | FLEXIBLE HOSE | KOB |
| 18. | ZX15K08040 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 19. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 20. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 21. | 2479Z1903 | [1] | HARNESS | HARNESS |
| 22. | 2479Z1823 | [1] | RELAY | KOB |
| 23. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 24. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 25. | ZH22F06000 | [4] | CONNECTION | KOB |
| 26. | 2420R537D150 | [4] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| 27. | 2427P3327 | [1] | REWORK, PLATE-FLOOR | |
