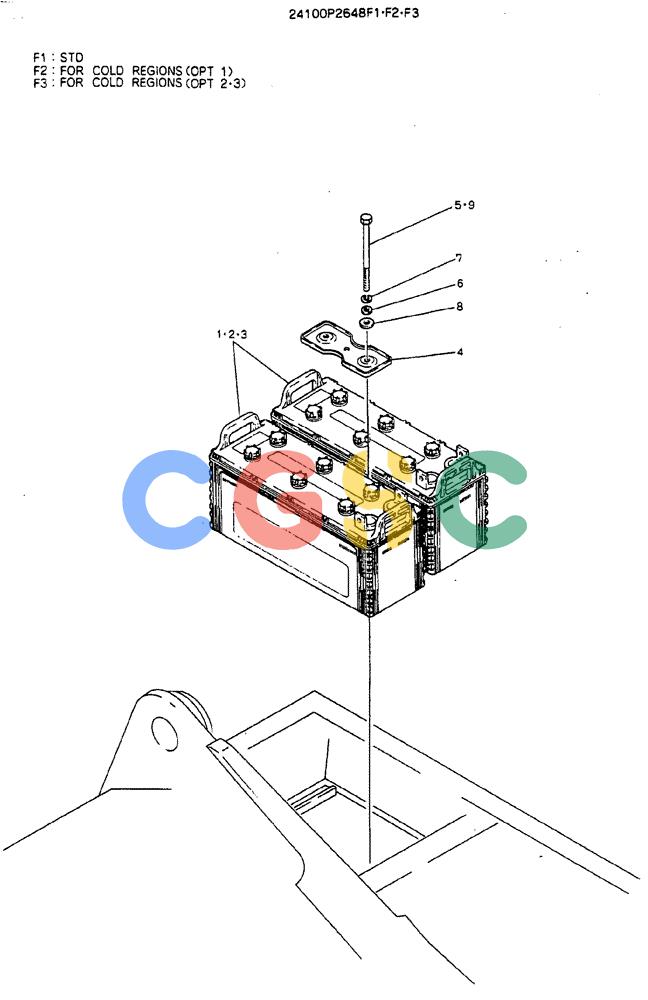

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P2648F1 | [1] | BATTERY ASSY | |
| 1. | 2484U177 | [2] | BATTERY F160-12, Serial Range: YC0301-YC0381 | |
| . . | 2484U178 | [2] | BATTERY FH130F51, Start Serial: YC0382 | |
| 4. | 2418P5535 | [1] | PLATE | KOB |
| 5. | R20T0084D20 | [2] | SCREW | KOBM10x1.50x255mm, Serial Range: YC0301-YC0439 |
| 6. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 7. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | 2418T19527 | [2] | SPACER | KOBYC0301, Serial Range: -C0439 |
| 9. | R20T0084D17 | [2] | CAPSCREW | KOBSCREW M10x1.50x235mm, Start Serial: YC0440 |
| . . | 24100P2648F2 | [1] | BATTERY ASSY | |
| 2. | 2484U176 | [2] | BATTERY 150F51 | |
| . . | 24100P2648F3 | [1] | BATTERY ASSY | |
| 3. | 2484U175 | [2] | BATTERY BATTERY 170F51 | BATTERY BATTERY 170F51 |
