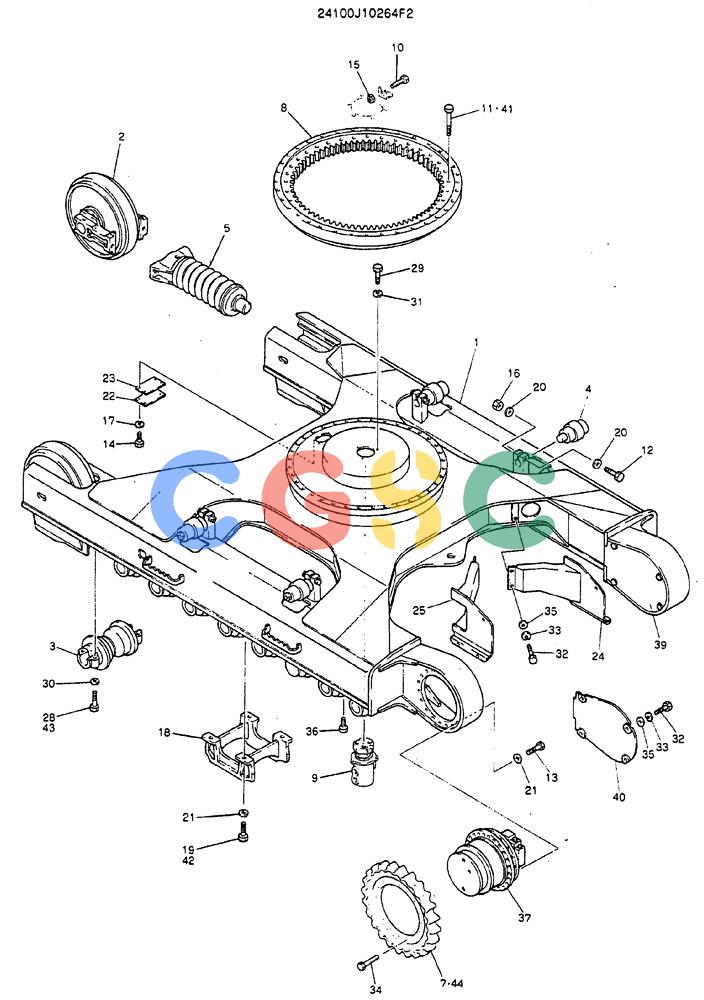

| . . | 24100J10264F2 | [1] | INSTAL, LOW | |
| 1. | 2422J2723 | [1] | FRAME, LOW | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONIDLER ASSY, SEE FIG 06-002 |
| 3. | NSS | [18] | NOT SOLD SEPARAT | CONROLLER ASSY. LOW, SEE FIG 06-003 |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONROLLER ASSY, UPP, SEE FIG 06-004 |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING ASSY, TRACK, SEE FIG 06-005 |
| 7. | 2404N256 | [2] | SPROCKET YC0301, Serial Range: -YC0443 | SPROCKET YC0301, Serial Range: -YC0443 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONRING, SLEWING, SEE FIG 06-006 |
| 9. | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: 24100U1524F1 |
| 10. | ZS18C16120 | [1] | CAPSCREW,Hex, M16 x 120mm | KOBSCREW M16x2.0x120mm |
| 11. | 2420Z1622 | [36] | CAPSCREW, Serial Range: YC0301-YC0439 | CAPSCREW, Serial Range: YC0301-YC0439 |
| 12. | ZS18C20130 | [4] | CAPSCREW,Hex, M20 x 130mm | KOBSCREW M20x2.50x130mm |
| 13. | 2420Z1254 | [36] | SCREW | KOB |
| 14. | ZS18C10014 | [4] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 15. | ZN18C16013 | [1] | NUT | KOBM16x2.0mm |
| 16. | ZN18C20016 | [4] | NUT | KOBM20x2.5mm |
| 17. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | 2414P4770 | [2] | GUIDE | KOB Superseded by part number: 2414P4770K |
| 19. | 2420Z1671 | [8] | CAPSCREW YC0301, Serial Range: -YC0439 | CAPSCREW YC0301, Serial Range: -YC0439 |
| 20. | ZW16H20000 | [8] | WASHER | KOBID 21 x OD 40 x Th 4.5mm YC0301, Serial Range: -YC0439 |
| . . | ZW13H20000 | [8] | WASHER | KOBID 20 x OD 40 x Th 4.5mm YC0440 to |
| 21. | ZW16H24000 | [44] | WASHER | KOBID 25 x OD 48 x Th 6.0mm YC0301, Serial Range: -YC0439 |
| . . | ZW13H24000 | [44] | WASHER | KOBID 24 x OD 39 x Th 4.0mm YC0440 to |
| 22. | 2414T1597 | [1] | COVER | KOB |
| 23. | 2418T8720 | [1] | PACKING | KOB |
| 24. | 2414N1995D1 | [1] | COVER | KOB |
| 25. | 2414N1995D2 | [1] | COVER | KOB |
| 28. | 2420Z1623 | [72] | SCREW | KOBYC0301, Serial Range: -YC0439 Superseded by part number: 2420Z1309 |
| 29. | ZS13C12025 | [3] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 30. | ZW16H22000 | [72] | WASHER | KOBID 23 x OD 44 x Th 6.0mm YC0301, Serial Range: -YC0439 |
| . . | ZW13H22000 | [72] | WASHER | KOBID 22 x OD 44 x Th 6.0mm YC0440 to |
| 31. | ZW11X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 32. | ZS18C16025 | [18] | SCREW,Hex, M16 x 25mm | KOBM16x2.0x25mm |
| 33. | ZW26X16000 | [18] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 34. | ZS18C20050 | [52] | SCREW,Hex, M20 x 50mm | KOBM20x2.50x50mm YC0301, Serial Range: -YC0439 |
| . . | ZS13C20050 | [52] | SCREW | KOBM20x2.50x50mm YC0440 to |
| 35. | ZW16X16000 | [18] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 36. | 2420Z1214 | [8] | SET OF SCREWS | KOB |
| 37. | 2441U787F1 | [2] | HYDRAULIC MOTOR | KOB Superseded by part number: 2441U787F3 |
| 39. | 2414P6519D1 | [1] | COVER | KOB |
| 40. | 2414P6519D2 | [1] | COVER | COVER |
| 41. | 2420Z1307 | [36] | SCREW | KOBYC0440 to |
| 42. | 2420Z1308 | [8] | SCREW | KOBYC0440 to |
| 43. | 2420Z1309 | [72] | SCREW | KOBYC0440 to |
| 44. | 2404N256C2 | [2] | DRIVING SPROCKET | KOBSPROCKET YC0440 to Superseded by part number: LC53DU0001P1 |
