神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
853 次

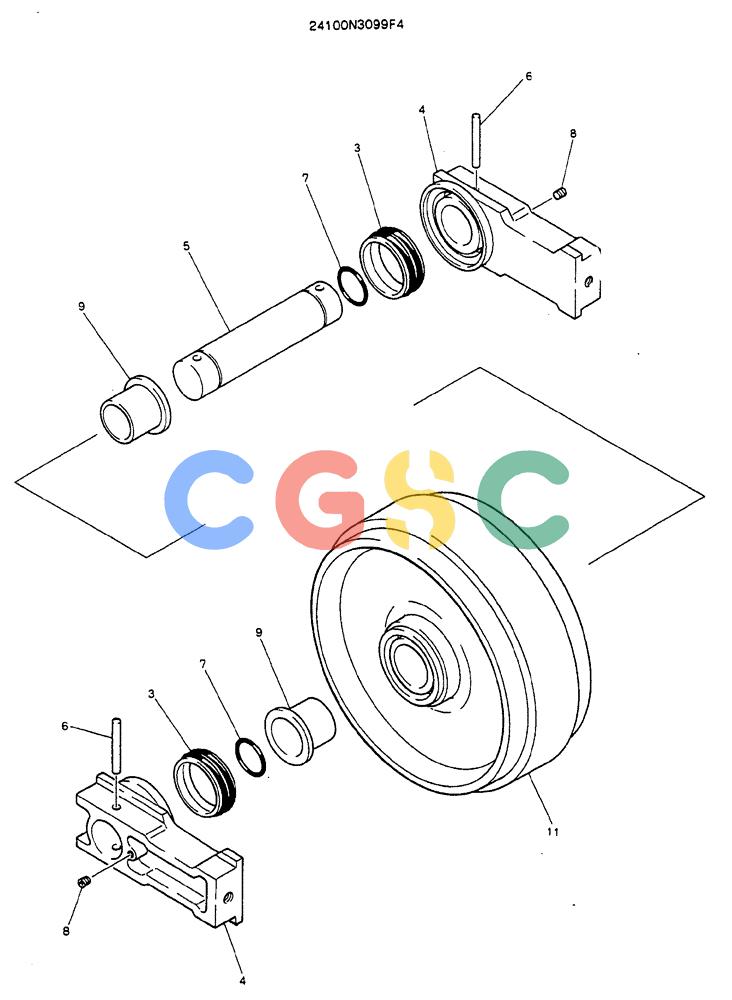

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3099F4 | [1] | IDLER WHEEL | KOB Superseded by part number: LC52DU0001F1 |
| 3. | ZD57F12038 | [2] | SEAL | KOB Superseded by part number: 77275891, ZD58F12038, R45P0018D14 |
| 4. | 2416N2847 | [2] | BLOCK | KOB |
| 5. | 2410P733C1 | [1] | SHAFT | KOB |
| 6. | 2419T2669D4 | [2] | PIN,20mm OD x 110mm L | KOBOD 20 x 110mm Long |
| 7. | ZD11G07500 | [2] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
| 9. | 2405T1101C2 | [2] | BUSHING | KOB Superseded by part number: LC52DU0005P1 |
| 11. | 2413N364D2 | [1] | WHEEL ASSY | KOB Superseded by part number: LC52DU0003P1 |
