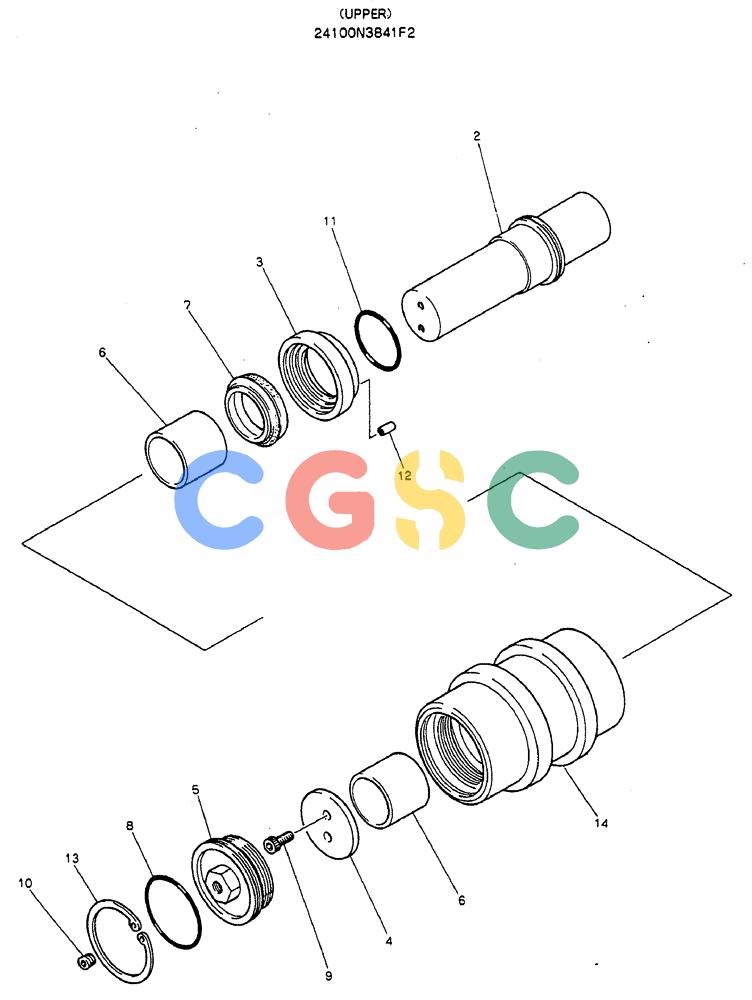

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-004) - ROLLER ASSY (UPPER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3841F2 | [1] | TRACK ROLLER | KOB Superseded by part number: 24100N3841F4 |
| 2. | 2410P669 | [1] | ROLLER SHAFT | KOB Superseded by part number: LC64DU0006P1 |
| 3. | 2418P8204 | [1] | COLLAR CLAMP | KOB Superseded by part number: LC64DU0007P1 |
| 4. | 2418T14311 | [1] | PLATE | KOB Superseded by part number: LC64DU0009P1 |
| 5. | 2414P4451 | [1] | COVER | KOB Superseded by part number: LC64DU0008P1 |
| 6. | 2405T902 | [2] | BUSHING | KOB |
| 7. | R45P0018D6 | [1] | SEAL | KOB Superseded by part number: 2445R439F1 |
| 8. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 9. | ZS23C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 10. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 11. | ZD11G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 12. | ZP26D07018 | [1] | ROLL PIN | KOB |
| 13. | ZR26X09500 | [1] | SNAP RING | KOBRetaining -- ID 95 x OD 98.5 x Th 3.0mm |
| 14. | 2413N596 | [1] | ROLLER | KOB |
