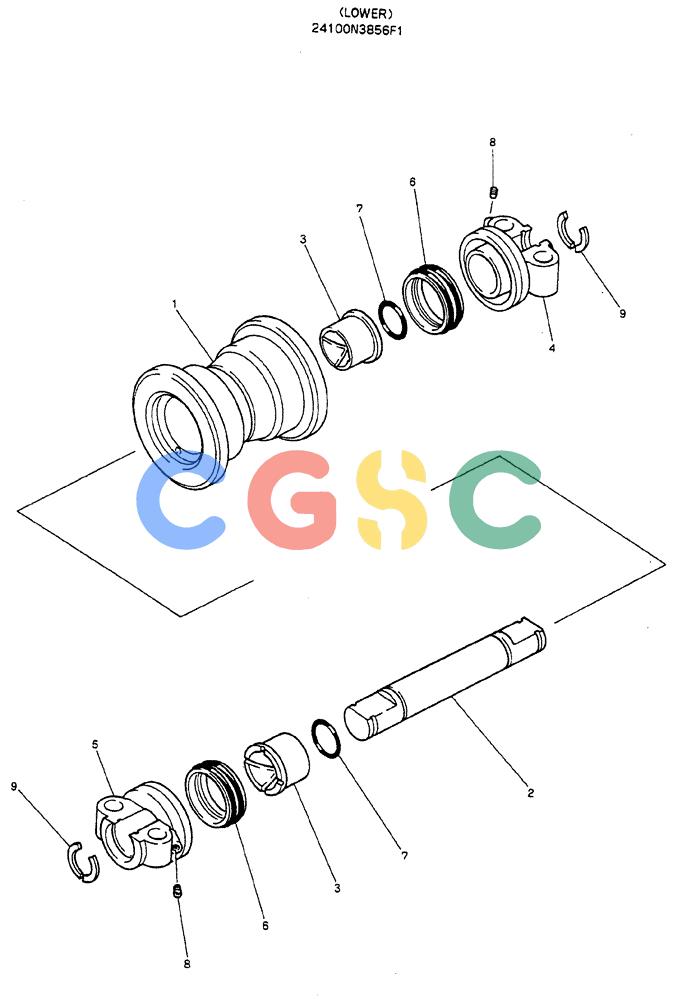

神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-003) - ROLLER ASSY (LOWER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
431 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3856F1 | [1] | TRACK ROLLER | KOB Superseded by part number: 24100N3856F3 |
| 1. | 2413N574 | [1] | ROLLER THRUST PLATE | KOB |
| 2. | 2410P732C2 | [1] | ROLLER SHAFT | KOB Superseded by part number: LC64DU0012P1 |
| 3. | 2405P306 | [2] | BUSHING | KOB Superseded by part number: 2405P482 |
| 4. | 2418N2668D1 | [1] | COLLAR CLAMP | KOB |
| 5. | 2418N2668D2 | [1] | COLLAR CLAMP | KOB |
| 6. | ZD57F11032 | [2] | SEAL | KOB Superseded by part number: ZD58F11032 |
| 7. | ZD11G07000 | [2] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 8. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 9. | 2418T9730 | [4] | LOCKING RING | KOB Superseded by part number: LC64DU0014P1 |
