神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-009) - INSTAL, CRAWLER TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
438 次

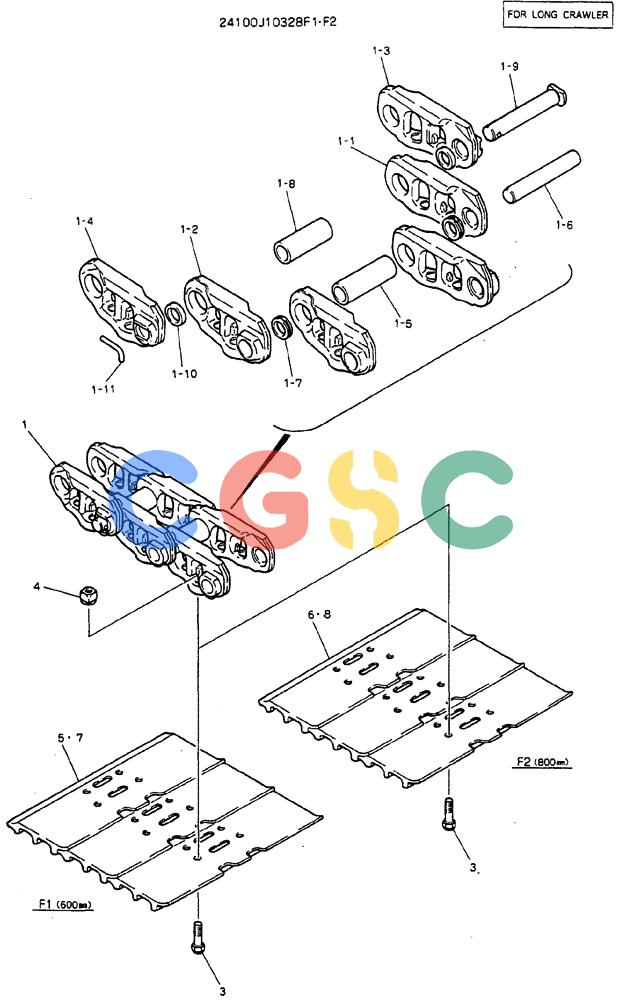

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10328F1 | [1] | INSTAL, TRACK, CRAWL | INSTAL, TRACK, CRAWL |
| 1. | 24100J10382F1 | [2] | CHAIN | KOB Superseded by part number: 24100J10382F3 |
| 1-1. | 2424P104D3 | [49] | CHAIN | KOB |
| 1-2. | 2424P104D4 | [49] | CHAIN | KOB |
| 1-3. | 2424P105D3 | [2] | CONNECTING LINK | KOB |
| 1-4. | 2424P105D4 | [2] | CONNECTING LINK | KOB |
| 1-5. | 2405P508 | [49] | BUSHING | KOB Superseded by part number: 77250360, 2405P709 |
| 1-6. | 2419T4517 | [49] | PIN | KOB |
| 1-7. | 2445Z1427 | [98] | DUST CAP | KOB |
| 1-8. | 2405T1207 | [2] | BUSHING | KOB |
| 1-9. | 2419T4518 | [2] | PIN | KOB Superseded by part number: 2419T7212 |
| 1-10. | 2418T8622 | [4] | COLLAR CLAMP | KOB |
| 1-11. | 2419T3151 | [2] | PIN | KOB |
| 3. | 2420T5546 | [408] | BOLT | KOB |
| 4. | 2420T2751 | [408] | NUT | KOB |
| 5. | 2424N141 | [102] | SHOE | KOB, Serial Range: YC0301-YC0439 Superseded by part number: 2415N371 |
| 7. | 2424N202 | [102] | SHOE | KOB, Start Serial: YC0440 Superseded by part number: 2415N371 |
| . . | 24100J10328F2 | [1] | INSTAL, TRACK, CRAWL CONSISTS OF REF 1, 3, 4, 6, 8 | INSTAL, TRACK, CRAWL CONSISTS OF REF 1, 3, 4, 6, 8 |
| . . | 2424N142 | [102] | SHOE, 800, Serial Range: YC0301-YC0439 | SHOE, 800, Serial Range: YC0301-YC0439 |
| 8. | 2424N203 | [102] | SHOE | KOBSHOE, 800, Start Serial: YC0440 Superseded by part number: 2424N251 |
