神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (06-008) - HYDR LINES, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

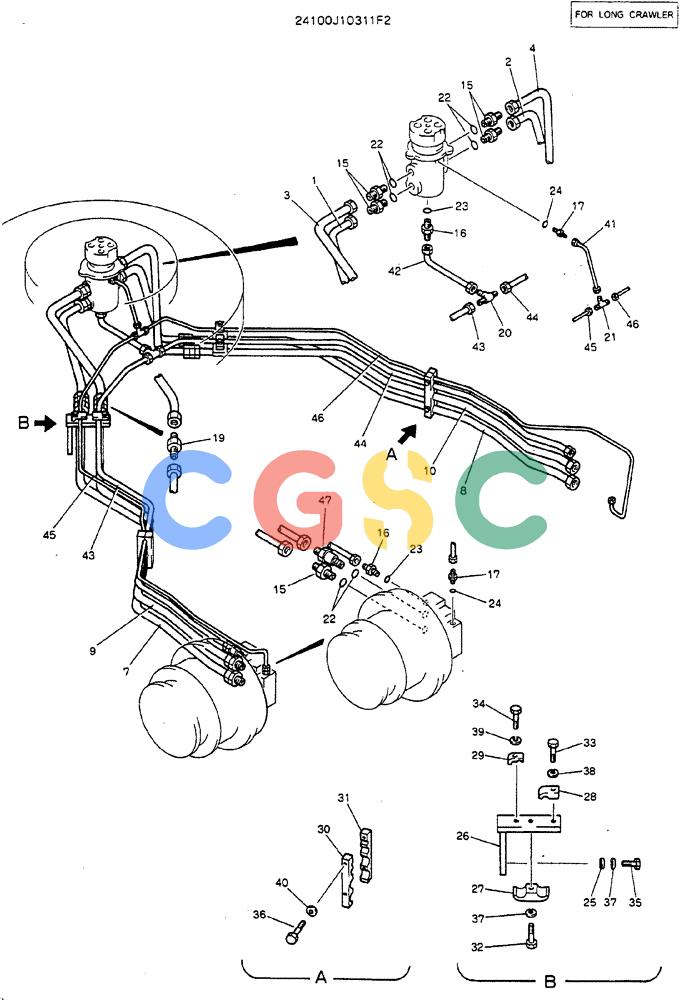

| . . | 24100J10311F2 | [1] | HYDR LINES, LOW | |
| 1. | 2418P19299 | [1] | TUBE | KOB |
| 2. | 2418P19300 | [1] | TUBE | KOB |
| 3. | 2418P19301 | [1] | TUBE | KOB |
| 4. | 2418P19302 | [1] | RIGID TUBE | KOB |
| 7. | 2418N4674D2 | [1] | TUBE | KOB |
| 8. | 2418N4674D1 | [1] | TUBE | KOB |
| 9. | 2418N4675D2 | [1] | TUBE | KOB |
| 10. | 2418N4675D1 | [1] | TUBE | KOB |
| 15. | 2444T1342 | [6] | HYD CONNECTOR | KOB |
| 16. | ZA23F18008 | [3] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 17. | ZA23F10004 | [3] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 19. | ZF23B35000 | [4] | HYD CONNECTOR | KOB |
| 20. | ZA53B18000 | [1] | TEE | KOB |
| 21. | ZA53B10000 | [1] | TEE | KOB(3) M16x1.50x46mm Long (No O-Ring supplied) |
| 22. | ZD12P02900 | [8] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 23. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 24. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 25. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 26. | 2416T21371 | [2] | BRACKET | KOB |
| 27. | ZC37X35114 | [2] | CLAMP | KOB |
| 28. | ZC27X18009 | [2] | CLAMP | KOB |
| 29. | ZC26X10007 | [2] | CLAMP | KOB |
| 30. | 2432T3912 | [2] | CLAMP | KOB |
| 31. | 2432T3913 | [2] | CLAMP | KOB |
| 32. | ZS18C12070 | [2] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 33. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBM08x1.25x45mm |
| 34. | ZS18C06030 | [2] | SCREW,Hex, M6 x 30mm | KOBM06x1.0x30mm |
| 35. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 36. | ZS23C10040 | [4] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 37. | ZW26X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 38. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 39. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 40. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 41. | 2418T19270 | [1] | TUBE | KOB |
| 42. | 2418T19271 | [1] | TUBE | KOB |
| 43. | 2418P20851D2 | [1] | TUBE | KOB |
| 44. | 2418P20851D1 | [1] | TUBE | KOB |
| 45. | 2418P20843 | [1] | TUBE | KOB |
| 46. | 2418P20844 | [1] | TUBE | KOB |
| 47. | 2444T2623 | [2] | HYD CONNECTOR | KOB |
