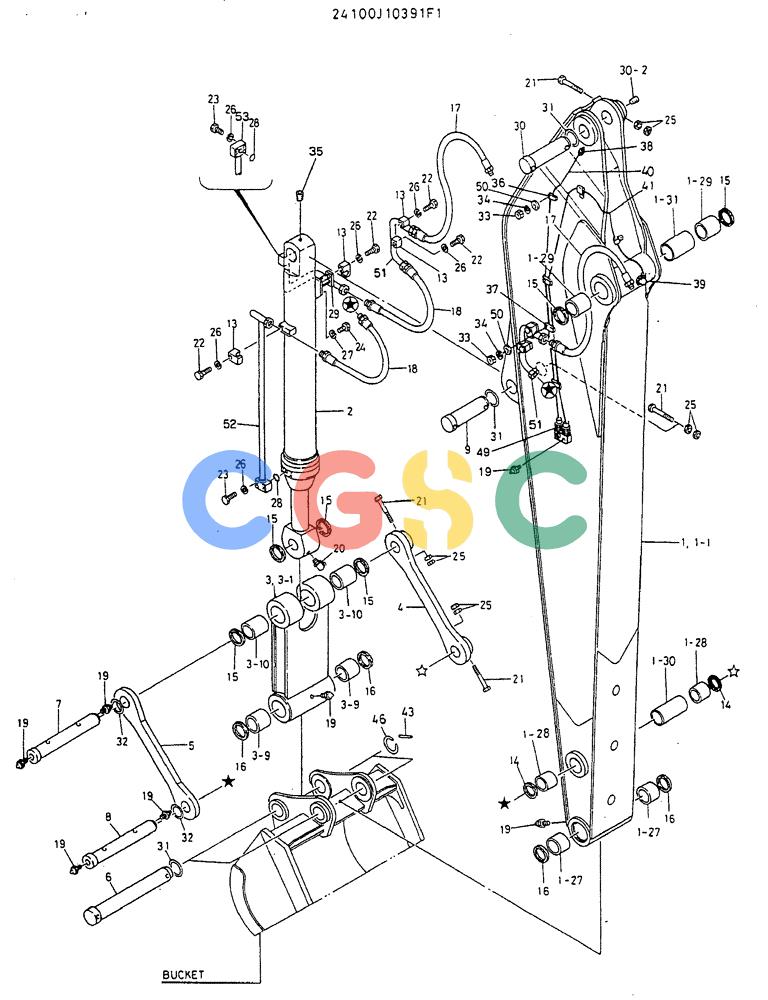

| . . | 24100J10391F1 | [1] | LONG-ARM ASSY, 4.05M | |
| 1. | 2411J3429F1 | [1] | ARM | ARM |
| 1-1. | 2411J3429 | [1] | ARM | |
| 1-27. | 2405T1216 | [2] | BUSHING | KOB Superseded by part number: 2405T1883 |
| 1-28. | 2405T907 | [2] | BUSHING,80mm ID x 95mm OD x 85mm L | KOB |
| 1-29. | 2405T1332 | [2] | BUSHING | KOB |
| 1-30. | 2418T9772 | [1] | SPACER | KOB |
| 1-31. | 2418T9773 | [1] | SPACER | KOB |
| 2. | 2438U1324F2 | [1] | CYLINDER | KOB |
| 3. | 2406N1004F1 | [1] | LINK | KOB |
| 3-1. | 2406N1004 | [1] | LINK | KOB Superseded by part number: 2406N1004F1 |
| 3-9. | 2405T1215 | [2] | BUSHING,90mm ID x 105mm OD x 95mm L | KOB |
| 3-10. | 2405T1109 | [2] | BUSHING | KOB |
| 4. | 2406P3408D1 | [1] | LINK CONROD | KOB |
| 5. | 2406P3408D2 | [1] | LINK CONROD | KOB |
| 6. | 2419P2180 | [2] | PIN | KOB Superseded by part number: 2419P4000 |
| 7. | 2419P2141 | [1] | PIN | KOB |
| 8. | 2419P2142 | [1] | PIN | KOB |
| 9. | 2419P2957 | [1] | PIN | KOB |
| 13. | 2432T1213D2 | [6] | CLAMP | KOB |
| 14. | 2445R138D7 | [2] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 15. | 2445R138D8 | [6] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| 16. | 2445R220D6 | [4] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 17. | ZX58N16160 | [2] | FLEXIBLE HOSE | KOB1600mm Long (63 in) |
| 18. | ZX58N16120 | [2] | HOSE | KOB1200mm Long (47-1/4in) |
| 19. | ZG91U02000 | [8] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 20. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 21. | ZS18C20160 | [4] | SCREW,Hex, M20 x 160mm | KOBM20x2.50x160mm |
| 22. | ZS18C12065 | [6] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 23. | ZS18C12075 | [8] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 24. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 25. | ZN18C20016 | [8] | NUT | KOBM20x2.5mm |
| 26. | ZW16H12000 | [14] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 27. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 28. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 29. | 2416P6907 | [1] | BRACKET | KOB |
| 30. | 2419P3007F1 | [1] | PIN | KOB |
| 30-2. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
| 31. | B16T0442D13 | [8] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 32. | B16T0442D3 | [2] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 33. | ZN18C06005 | [6] | NUT | KOBM06x1.0mm |
| 34. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 35. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
| 36. | ZC45X10009 | [3] | CLIP | KOB, Serial Range: YC0301-YC0430 Superseded by part number: ZC46X10009 |
| . . | 2432R225D3 | [3] | CLAMP | KOBSingle -- ID 10 x 35.8mm Long YC0431 to Superseded by part number: ZC46X10009 |
| 37. | ZC47X10009 | [3] | CLIP | KOBYC0301, Serial Range: -YC0430 Superseded by part number: ZC48X10009 |
| . . | 2432R226D3 | [3] | CLIP | KOBClamp, Double -- ID 10 x 48mm Long, Start Serial: YC0431 Superseded by part number: ZC48X10009 |
| 38. | 2444Z2002 | [1] | HYD CONNECTOR | KOB1/8"PTx1/4"PFx32mm Long |
| 39. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 40. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB2100mm Long (82-11/16 in) |
| 43. | 2418T19567 | [2] | RING | KOB |
| 46. | 2419T6002D4 | [2] | PIN,20mm OD x 125mm L | KOBOD 20 x 125mm Long |
| 49. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 50. | ZW16X06000 | [6] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm, Start Serial: YC0431 Superseded by part number: 86588450 |
| 51. | 2418T21408 | [2] | TUBE | KOB |
| 52. | 2418P20845 | [1] | TUBE | KOB |
| 53. | 2418P19396 | [1] | RIGID TUBE | KOB |
