神钢零件查询(MD320BLC) - EXCAVATOR BTW YC0301 - YC0747 (1/80-12/06) (09-001) - BUCKET ASSY, 1.0M³ (1.31CU.YD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
950 次

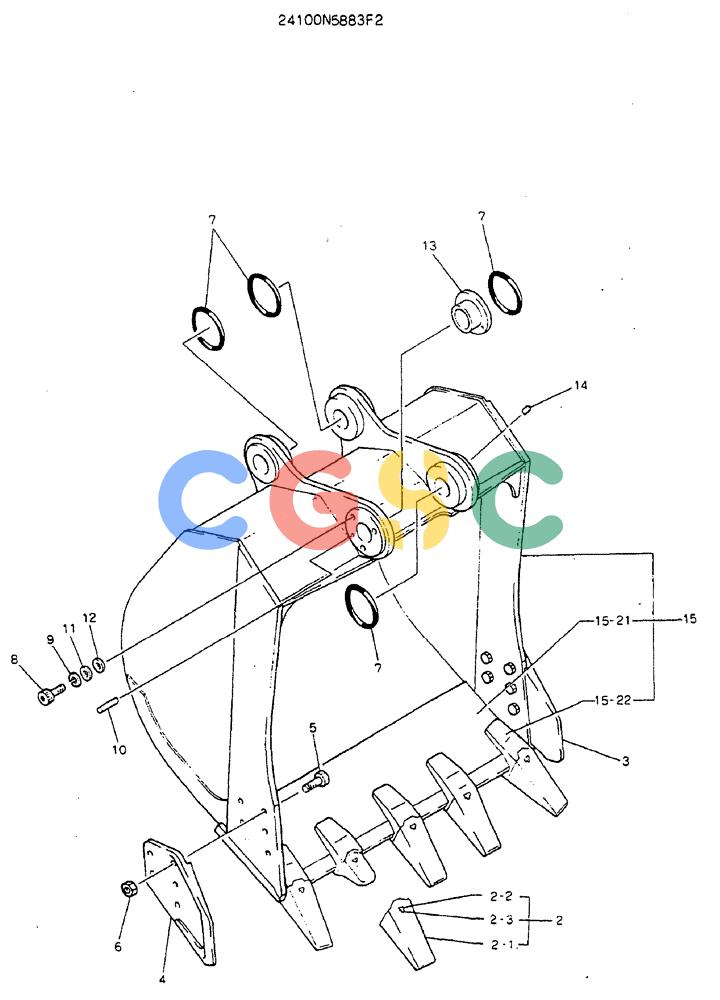

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5881F2 | [1] | BUCKET ASSY, 1.0M³ | |
| 2. | 2412U173F1 | [14] | BUCKET TOOTH POINT | KOBTOOTH ASSY |
| 2-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 2-2. | 2412U62S2 | [1] | PIN | KOB |
| 2-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 3. | 2412J351D1 | [1] | BLADE | KOB |
| 4. | 2412J351D2 | [1] | BLADE | KOB |
| 5. | ZS18C24065 | [10] | SCREW,Hex, M24 x 65mm | KOBM24x3.0x65mm |
| 6. | ZN18C24019 | [10] | NUT | KOBM24x3.0mm |
| 7. | 2445Z1003 | [4] | O-RING | KOB |
| S. | 2420Z1640D4 | [3] | SCREW | KOBM20 x 47mm Long |
| 9. | ZW26K20000 | [3] | WASHER | KOB |
| 10. | 2419T4628D1 | [1] | PIN | KOB |
| 11. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 12. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 13. | 2405T1331 | [1] | BUSHING | KOB |
| 14. | ZP26D04010 | [2] | ROLL PIN | KOB |
| 15. | 2412J1199 | [1] | BUCKET | |
| 15-21. | 2412P992D2 | [1] | EDGE, CUTTING | EDGE, CUTTING |
| 15-22. | 2412U187 | [4] | ADAPTER | KOB |
