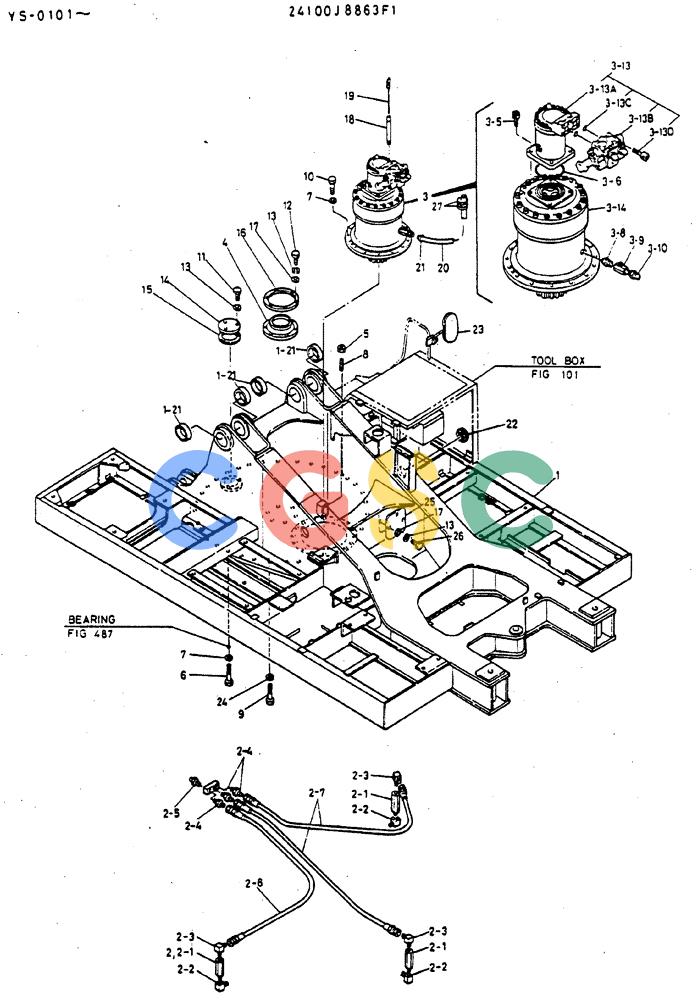

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J8863F1 | [1] | FRAME ASSY, UPP | |
| 1. | 2422X987F1 | [1] | FRAME, UPP | |
| 1-21. | 2405T1232 | [4] | BUSHING | KOB |
| 2. | 24100N3857F1 | [1] | LUBE ASSY | |
| 2-1. | 2444T3138D1 | [3] | HYD CONNECTOR | KOB |
| 2-2. | 2444T1977 | [3] | ELBOW | KOB |
| 2-3. | ZH32Z04000 | [3] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 2-4. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 2-5. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 2-6. | 2420R349D130 | [1] | FLEXIBLE HOSE | KOB1/4" PF, 1300mm Long (51-3/16 in) |
| 2-7. | 2420R349D22 | [2] | HOSE ASSY | HOSE ASSY |
| 3. | 24100J4648F6 | [1] | MOTOR ASSY, SWING | |
| 3-5. | ZS23C16045 | [4] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 3-6. | ZD11G21000 | [1] | O-RING,209.30mm ID x 220.70mm OD x 5.70mm | KOB |
| 3-8. | ZG22E12000 | [1] | NIPPLE | NIPPLE |
| 3-9. | 2436R1108D1 | [1] | COCK, DRAIN | COCK, DRAIN |
| 3-10. | 2444T3117 | [1] | CONNECTOR | CONNECTOR |
| 3-13. | 2441U705F1 | [1] | MOTOR ASSY | |
| 3-13A. | 2441U656F1 | [1] | MOTOR, SWING ASSY, SEE FIGURE (C.P.M) | MOTOR, SWING ASSY, SEE FIGURE (C.P.M) |
| 3-13B. | 2436U1807F1 | [1] | VALVE | KOBCONTROL, SEE (C.P.M) |
| 3-13C. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 3-13D. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 3-14. | 24100J4649F4 | [1] | REDUCTION UNIT SEE FIGURE 01-005 | REDUCTION UNIT SEE FIGURE 01-005 |
| 4. | 2414Z234 | [1] | COVER | KOB |
| 5. | ZN18C24014 | [1] | NUT | KOBM24x3.0mm |
| 6. | 2420Z1620 | [33] | SCREW | KOB |
| 7. | ZW16H24000 | [49] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 8. | 2420T3998D1 | [3] | SETSCREW | SETSCREW |
| 9. | 2420Z1606 | [3] | SPECIAL BOLT | KOB |
| 10. | 2420Z1621 | [16] | SCREW | KOB |
| 11. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 12. | ZS18C10030 | [6] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 13. | ZW26X10000 | [17] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 14. | 2414T3276 | [1] | COVER | COVER |
| 15. | 2414Z257 | [1] | SEAL | KOB |
| 16. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 17. | 2418T5373C2 | [14] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 18. | 2420T4039C2D7 | [1] | RIGID TUBE | KOB |
| 19. | 2420R561D1 | [1] | DIPSTICK | KOBGAUGE, LEVEL |
| 20. | R18P0140D106 | [1] | HOSE | |
| 21. | ZC15X02600 | [1] | CLAMP | KOB |
| 22. | 2420T5653 | [1] | GROMMET | GROMMET |
| 23. | 24100P1868F1 | [1] | MIRROR, BACK, SEE FIGURE 01-006 | |
| 24. | 2418T15235 | [3] | WASHER | KOB |
| 25. | 2414T3472 | [2] | COVER | |
| 26. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 27. | 24322290 | [2] | CLIP | |
