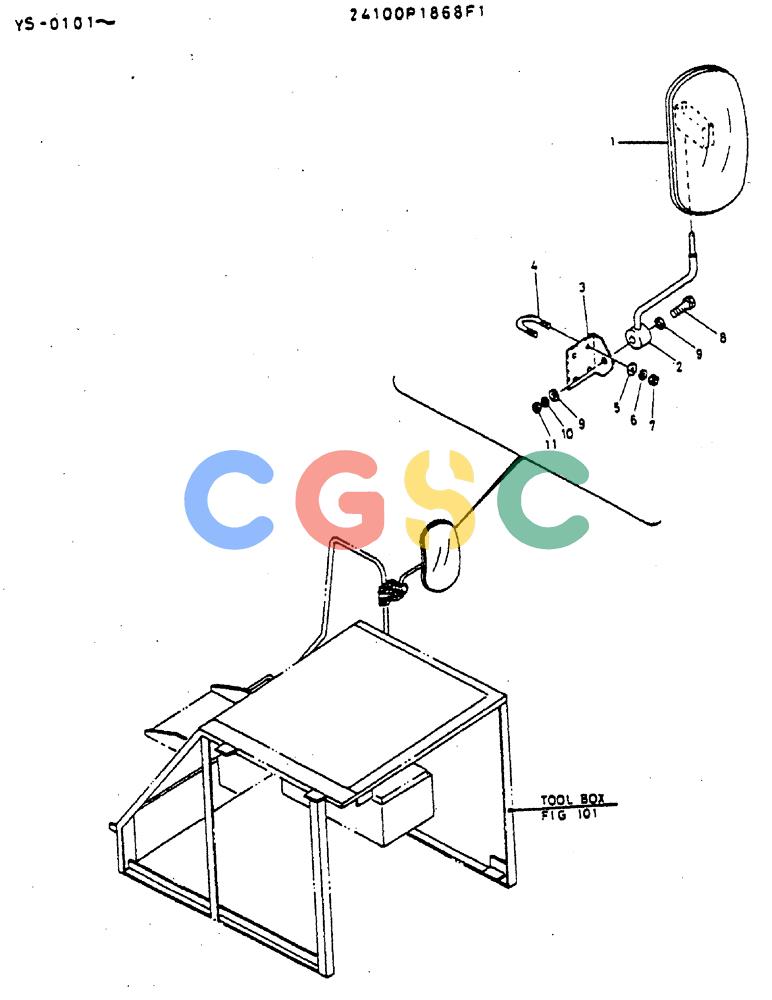

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (01-006) - MIRROR ASSY, BACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1868F1 | [1] | MIRROR ASSY, BACK | |
| 1. | 2456Z253 | [1] | MIRROR | KOB |
| 2. | 2406P2568 | [1] | STAY | KOB |
| 3. | 2416T16275 | [1] | BRACKET | BRACKET |
| 4. | R20P0064D1 | [2] | U-BOLT | U-BOLT |
| 5. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 6. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 7. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 8. | Z318C12055 | [1] | CAPSCREW | |
| 9. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 10. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
