神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (02-001) - INSTAL, CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
459 次

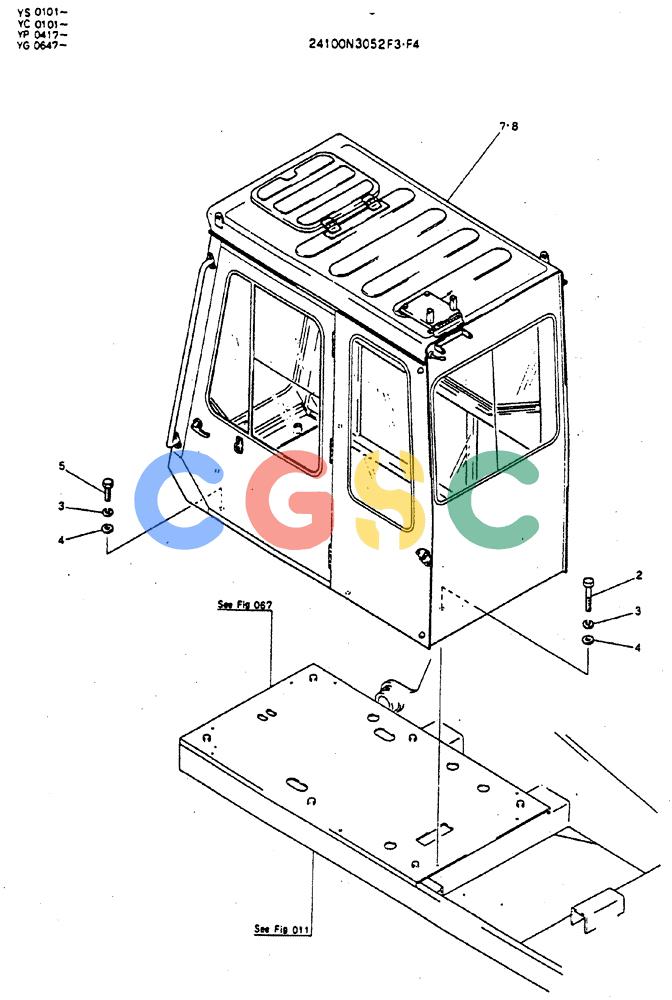

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3052F3 | [1] | INSTAL, CAB, Serial Range: YS.0101-YS.0112 | |
| . . | 24100N3052F4 | [1] | INSTAL, CAB, Start Serial: YS.0113 | |
| 2. | ZS18C12070 | [6] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 3. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 4. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 5. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 7. | 24100J6436F1 | [1] | CAB ASSY SEE FIGURE 02-002, Serial Range: YS.0101-YS.0112 | CAB ASSY SEE FIGURE 02-002, Serial Range: YS.0101-YS.0112 |
| 8. | 24100J6436F2 | [1] | CAB ASSY, SEE FIGURE 02-002, Start Serial: YS.0113 | |
