神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (06-011) - INSTAL, CRAWLER TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
459 次

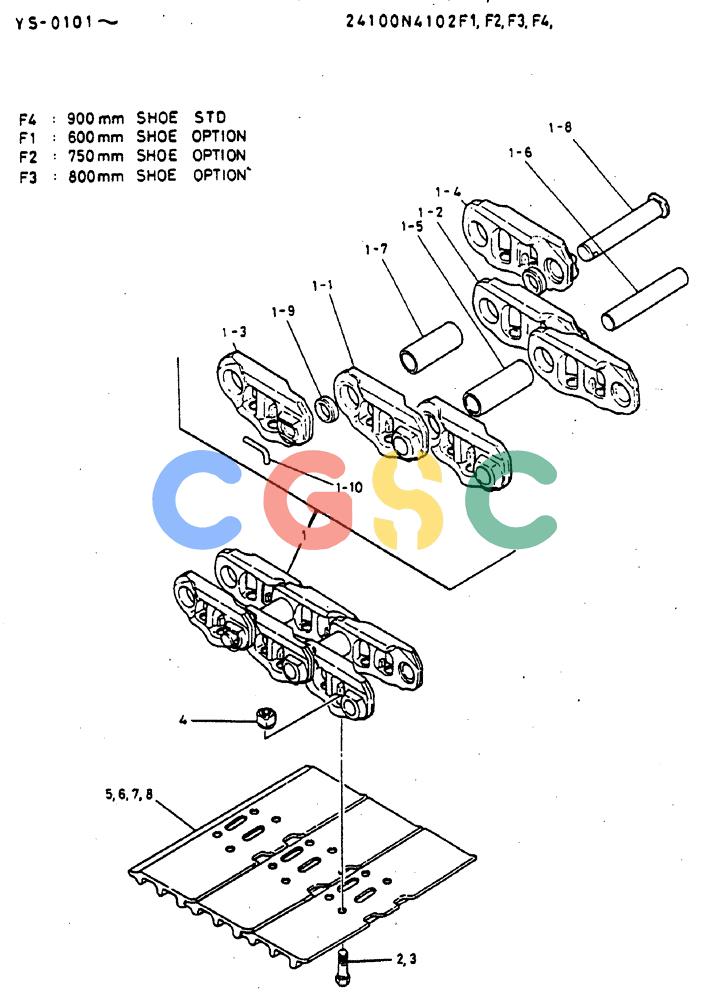

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4102F4 | [1] | TRACK ASSY, CRAWLER | TRACK ASSY, CRAWLER |
| 1. | 24100N4103F1 | [2] | TRACK ASSY | KOB |
| 1-1. | 2424N140D1 | [551] | LINK | KOB |
| 1-2. | 2424N140D2 | [51] | LINK | KOB Superseded by part number: 2424N140D2M |
| 1-3. | 2424P109D1 | [2] | LINK, MASTER | LINK, MASTER |
| 1-4. | 2424P109D2 | [2] | LINK | KOB Superseded by part number: 2424P109D2M |
| 1-5. | 2405T1196 | [51] | BUSHING | KOB |
| 1-6. | 2419P1783 | [51] | PIN | KOB |
| 1-7. | 2405T1195 | [2] | BUSHING | KOB |
| 1-8. | 2419P952 | [2] | PIN | KOB Superseded by part number: 2419T5972, 2419P3804 |
| 1-9. | 2418T4681 | [4] | COLLAR CLAMP | KOB |
| 1-10. | 2419T2051 | [2] | PIN | KOBPIN |
| 3. | 2420T5491D2 | [424] | BOLT | KOB |
| 4. | 2420T2781 | [424] | NUT | KOB |
| 8. | 2424N122D4 | [106] | SHOE | KOB |
| . . | 24100N4102F1 | [1] | INSTAL, CRAWLER TRACK | |
| 2. | 2420T5491D1 | [424] | SCREW | KOB |
| 5. | 2424N185 | [106] | SHOE | KOB Superseded by part number: 2424N246 |
| 6. | 2424N122D2 | [106] | SHOE | KOB |
| 7. | 2424N122D3 | [106] | TRACK SHOE | KOB |
