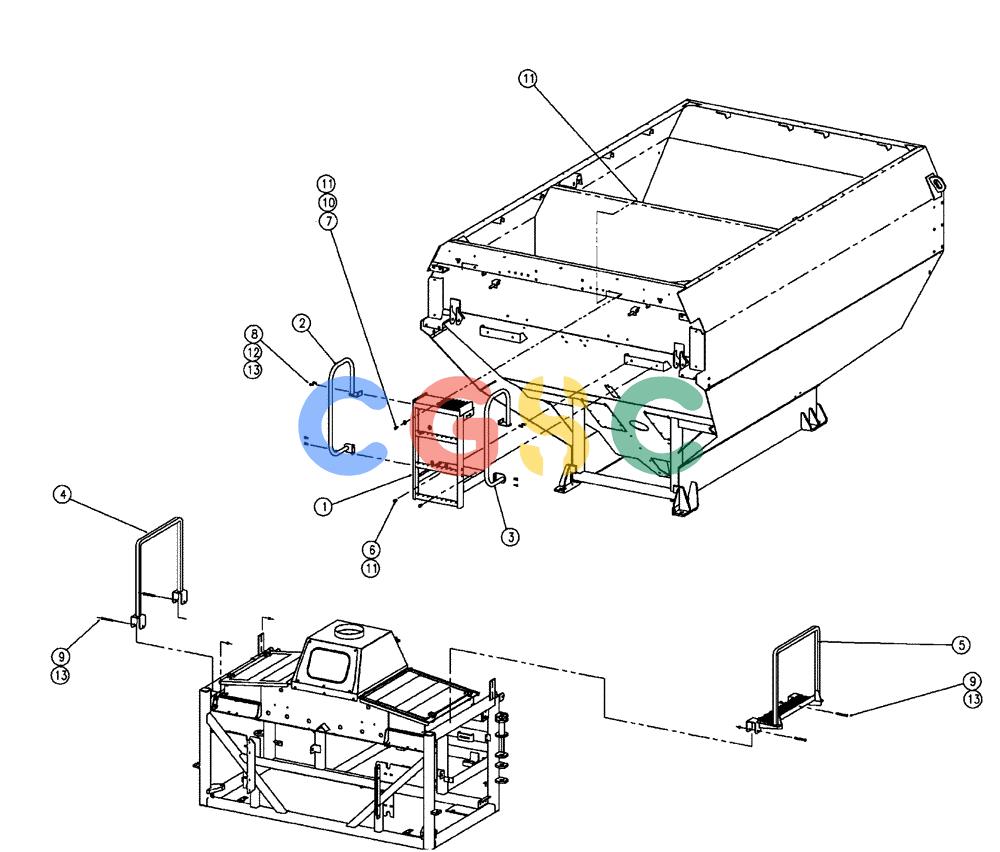

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (02-052) - LADDER GROUP, SINGLE BIN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267597
|
[1] |
LADDER
|
TYR
Single Bin
|
| 2. |
BN313701
|
[1] |
HANDRAIL
|
TYR
Single, LH
|
| 3. |
BN313702
|
[1] |
HANDRAIL
|
TYR
Single, RH
|
| 4. |
BN65393
|
[1] |
HANDRAIL
|
TYR
Flex-Air
|
| 5. |
87267605
|
[1] |
HANDRAIL
|
BN
LH (Outer)
|
| 6. |
BN50250
|
[2] |
BOLT,3/8"-16 x 3/4", Stainless Steel
|
BN
Superseded by part number: 113-2299
|
| 7. |
BN50254
|
[2] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 8. |
BN50476
|
[8] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 9. |
BN50242
|
[4] |
BOLT,5/16"-18 X 3-1/4", Stainless Steel
|
BN
|
| 10. |
BN50146
|
[2] |
WASHER,3/8", Stainless
|
BN
|
| 11. |
BN50759
|
[4] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 12. |
BN50142
|
[8] |
WASHER,5/16", Stainless Steel
|
BN
|
| 13. |
BN55361
|
[12] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
