神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-002) - VALVE ASSY SOLENOID/ P.N. 2436R688F1-F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
620 次

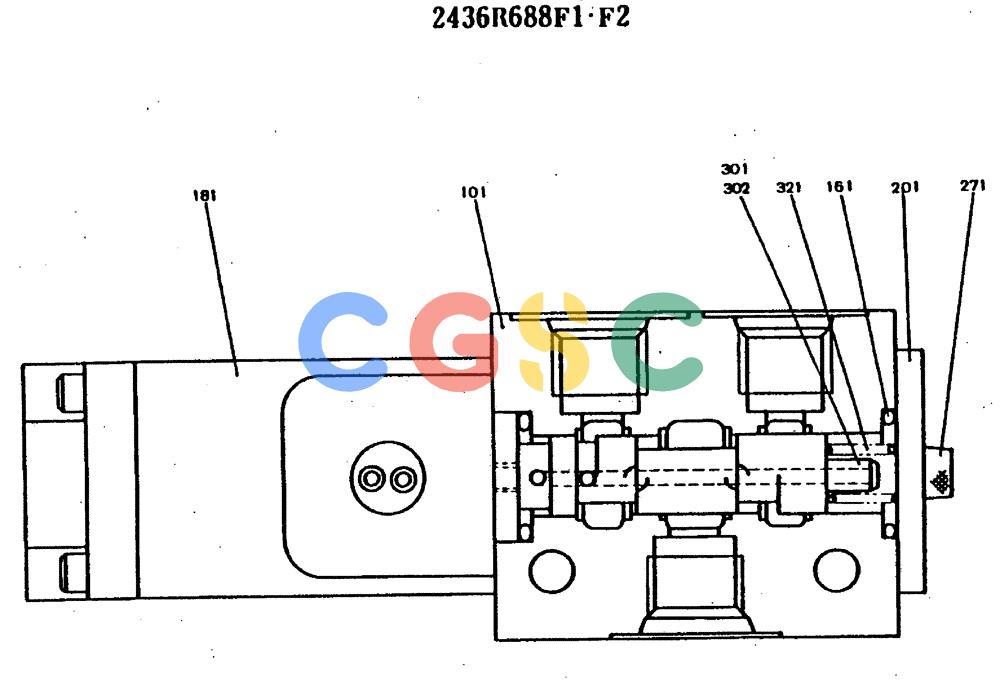

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R688F1-F2 | [1] | VALVE ASSY, SOLENOID CONSISTS OF THE FOLLOWING PARTS | |
| 161. | ZD12P01500 | [2] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 181. | 2436R688S181 | [1] | SOLENOID | KOB |
| 201. | 2436R688S201 | [1] | COVER | |
| 271. | 2436R688S271 | [2] | CAPSCREW | |
| 301. | NNS | [1] | SPOOL 3, F1 ONLY | |
| 302. | NNS | [1] | SPOOL 2, F2 ONLY | |
| 321. | 2436R688S321 | [1] | SPRING | SPRING |
