神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-001) - VALVE ASSY RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
212 次

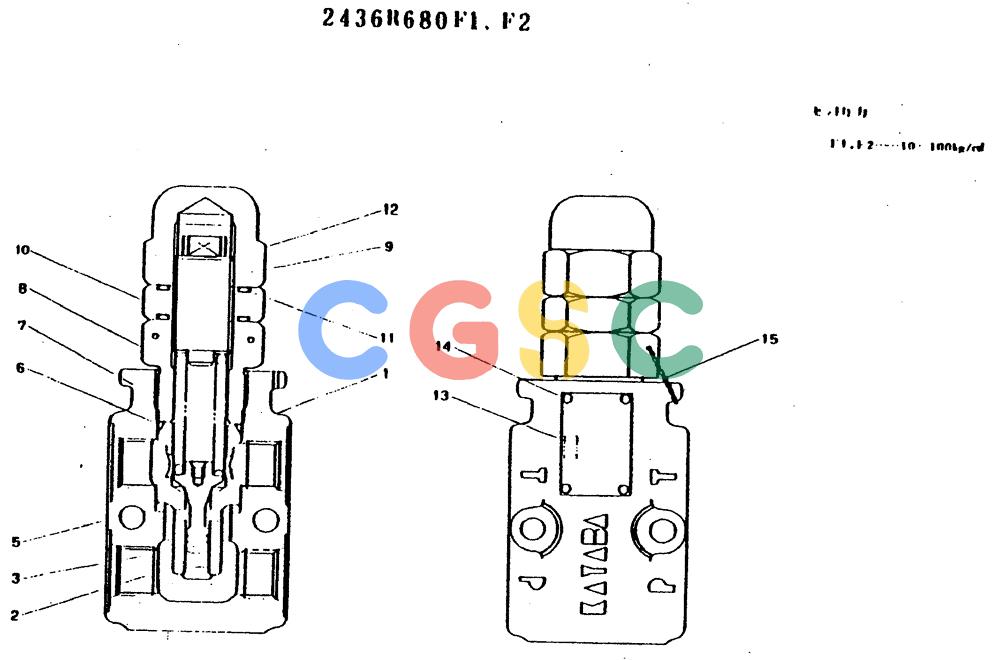

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436N680F1.F2 | [1] | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS | |
| 1. | NNS | [1] | BODY | |
| 2. | 2436R680S2 | [1] | HOUSING | |
| 3. | 2436R1117S3 | [1] | VALVE PRESSURE RELIE | KOB |
| 5. | B36P0048E5 | [1] | SEAT | KOB |
| 6. | B36P0048E6 | [1] | O-RING | KOB |
| 7. | B36P0048E7 | [1] | SPRING | KOB |
| 8. | B36P0048E8 | [1] | SET OF SCREWS | KOB |
| 9. | B36P0048E9 | [1] | SCREW | KOB |
| 10. | B36P0048E10 | [1] | NUT | |
| 11. | ZD11G02500 | [2] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB |
| 12. | B36P0048E12 | [1] | CAP | KOB |
| 13. | NNS | [1] | NAME-PLATE | |
| 14. | NNS | [4] | SCREW, DRIVE | |
| 15. | NNS | [1] | LOCK, WIRE | |
| . . | 2436N680R100 | [1] | REPAIR KIT CONSISTS OF REF 6 - 11 | |
