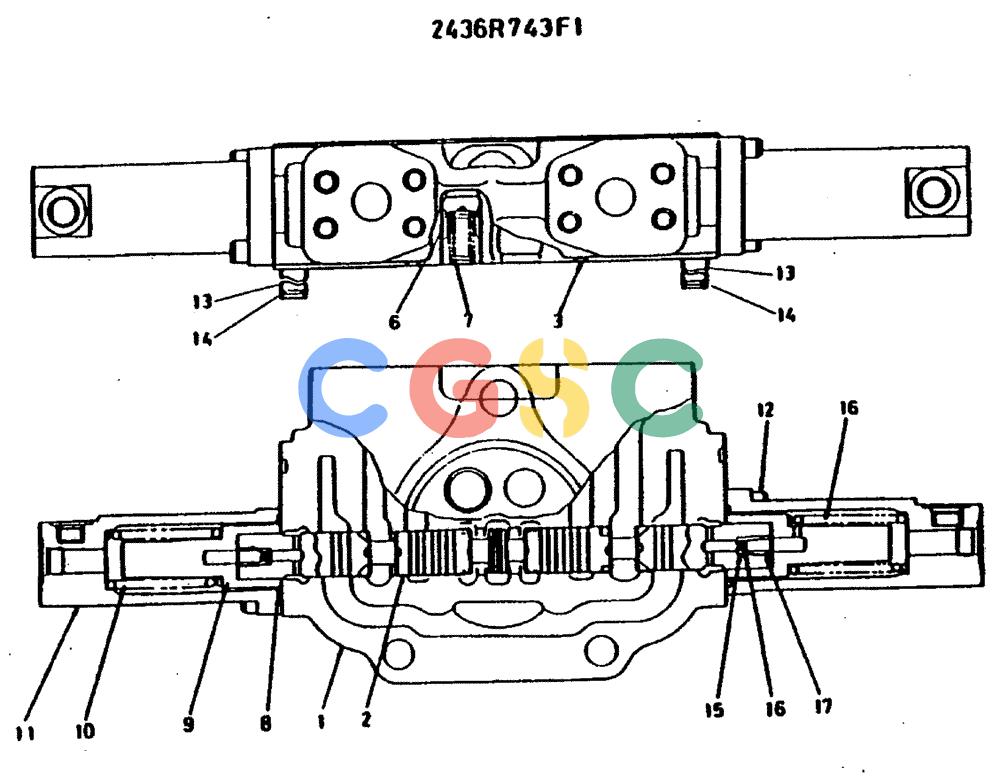

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-013) - SPOOL ASSY/ P.N. 2436R743F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R745F1 | [1] | SPOOL | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | NNS | [1] | HOUSING | |
| 2. | NNS | [1] | SPOOL | |
| 3. | 2436R1049S2 | [1] | O-RING | KOB |
| 6. | 2436R1050S6 | [1] | POPPET | KOB |
| 7. | 2436R1050S7 | [1] | SPRING | KOB |
| 8. | 2414R174S5 | [2] | O-RING | KOB |
| 9. | 2436R743S9 | [2] | SEAT, SPRING | |
| 10. | 2436R743S10 | [2] | SPRING | |
| 11. | 2436R745S13 | [2] | CAP | CAP |
| 12. | 2436R1050S14 | [4] | SCREW | KOB |
| 13. | 2436R745S13 | [2] | CAP | CAP |
| 14. | 2436R1168S21 | [4] | O-RING | KOB |
| 15. | 2436R744S17 | [2] | ORIFICE | KOB |
| 16. | 2436R745S20 | [2] | FILTER | KOB |
| 17. | 2436R745S19 | [2] | PLUG | |
