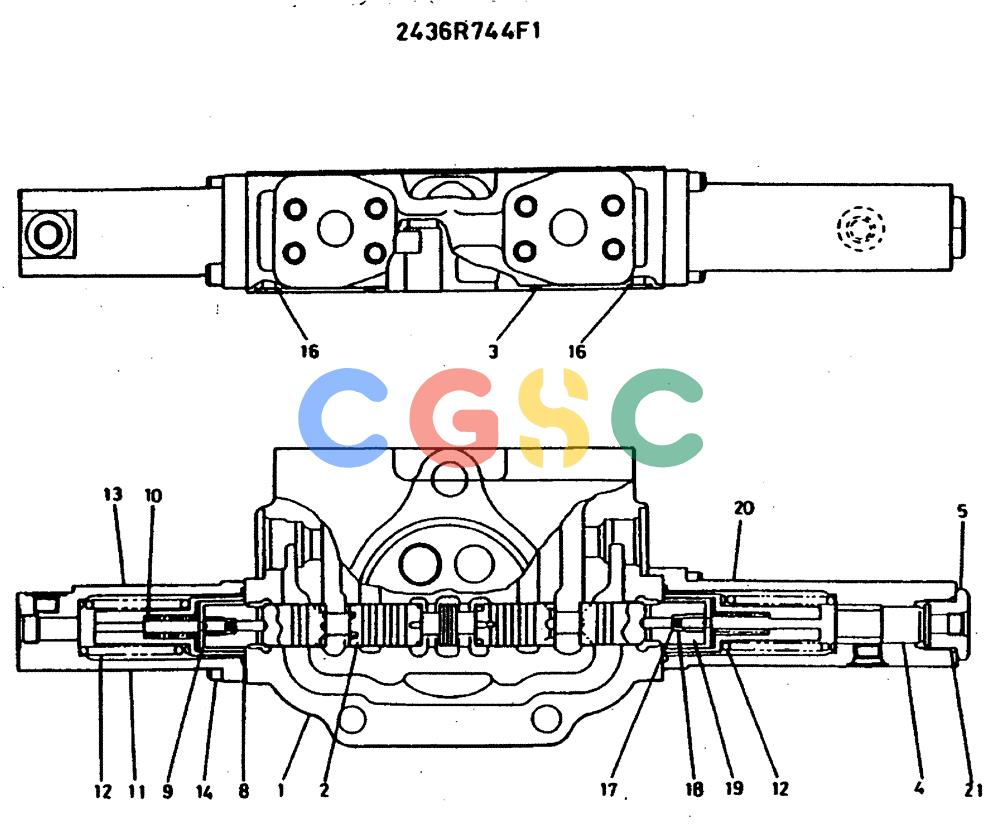

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-014) - SPOOL ASSY/ P.N. 2436R744F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
308 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2434R744F1 | [1] | SPOOL ASSY CONSITS OF THE FOLLOWING PARTS | |
| 1. | NNS | [1] | HOUSING | |
| 2. | NNS | [1] | SPOOL | |
| 3. | 2436R1049S2 | [1] | O-RING | KOB |
| 4. | 2436R744S4 | [1] | PISTON | |
| 5. | 2436R744S5 | [1] | PLUG | KOB |
| 8. | 2414R174S5 | [2] | O-RING | KOB |
| 9. | 2436R1133S9 | [2] | SPRING SEAT | KOB |
| 10. | 2436R1071S10 | [2] | SPRING | KOB |
| 11. | 2436R745S11 | [2] | SPRING SEAT | KOB |
| 12. | 2436R745S12 | [2] | SHPRING | |
| 13. | 2436R745S13 | [1] | CAP | CAP |
| 14. | 2436R1050S14 | [4] | SCREW | KOB |
| 16. | ZD12P01200 | [2] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 17. | 2436R744S17 | [2] | ORIFICE | KOB |
| 18. | 2436R745S20 | [2] | FILTER | KOB |
| 19. | 2436R745S19 | [2] | PLUG | |
| 20. | 2436R744S20 | [1] | CAP | |
| 21. | 2436R718S11 | [1] | O-RING | KOBO-RING Superseded by part number: ZD12P02900 |
