神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-026) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
969 次

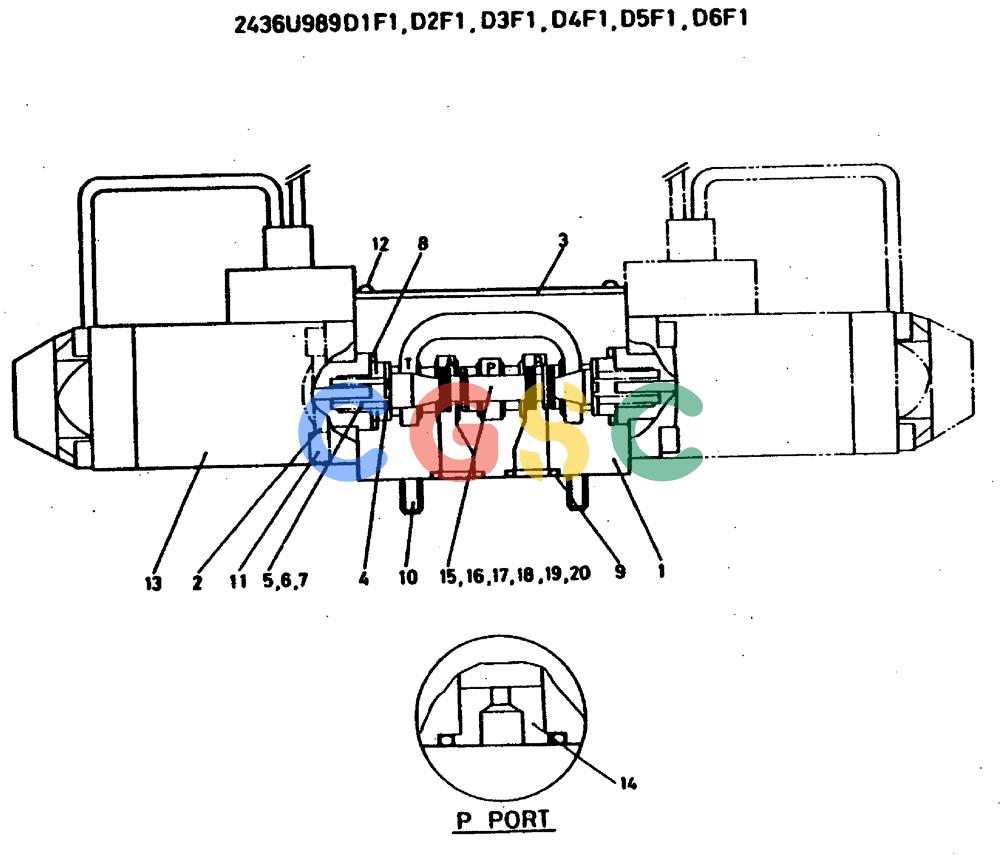

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U989D0F1 | [1] | VALVE ASST, SOLENOID CONSITS OF THE FOLLOWING PARTS | |
| 1. | 2436U989S1 | [1] | CASING | |
| 2. | 2436U989S2 | [1] | COVER | |
| 3. | 2436U989S3 | [1] | NAME-PLATE | |
| 4. | 2436U989S4 | [2] | SEAT | KOB |
| 5. | 2436U989S5 | [2] | SPRING | |
| 6. | 2436U989S6 | [1] | SPRING, F1 D5 ONLY | |
| 7. | 2436U989S7 | [1] | SPRING, F1 D6 ONLY | |
| 8. | 2436U989S8 | [2] | O-RING | KOB |
| 9. | 2436U989S9 | [4] | O-RING | KOB Superseded by part number: ZD12A01200 |
| 10. | 2436U989S10 | [4] | CAPSCREW | |
| 11. | 2436U989S11 | [4] | CAPSCREW | |
| 12. | 2436U989S12 | [4] | VIES | |
| 13. | 2436U989S13 | [1] | SOLENOID VALVE | KOB |
| 14. | 2436U989S14 | [1] | THROTTLE F1 D6 ONLY | |
| 15. | 2436U989S15 | [1] | SPOOL F1 D1 ONLY | |
| 16. | 2436U989S16 | [1] | SPOOL F1 D2 ONLY | |
| 17. | 2436U989S17 | [1] | SPOOL F1 D3 ONLY | |
| 18. | 2436U989SI8 | [1] | SPOOL F1 D4 ONLY | |
| 19. | 2436U989S19 | [1] | SPOOL F1 D5 ONLY | |
| 20. | 2436U989S20 | [1] | SPOOL F1 D6 ONLY | |
| . . | 2436U989D100 | [1] | REPAIR KIT REPAIR KIT CONSISTS OF REF 8 -9 | REPAIR KIT REPAIR KIT CONSISTS OF REF 8 -9 |
| . . | 2445R273D1 | [1] | HYDRAULIC VALVE | KOBREPAIR KIT CONSISTS OF REF 8 -13 |
| . . | 2436U989R110 | [1] | REPAIR KIT | KOBREPAIR KIT CONSITS OF REF 8 - 25 |
