神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-027) - JOINT ASSY, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
163 次

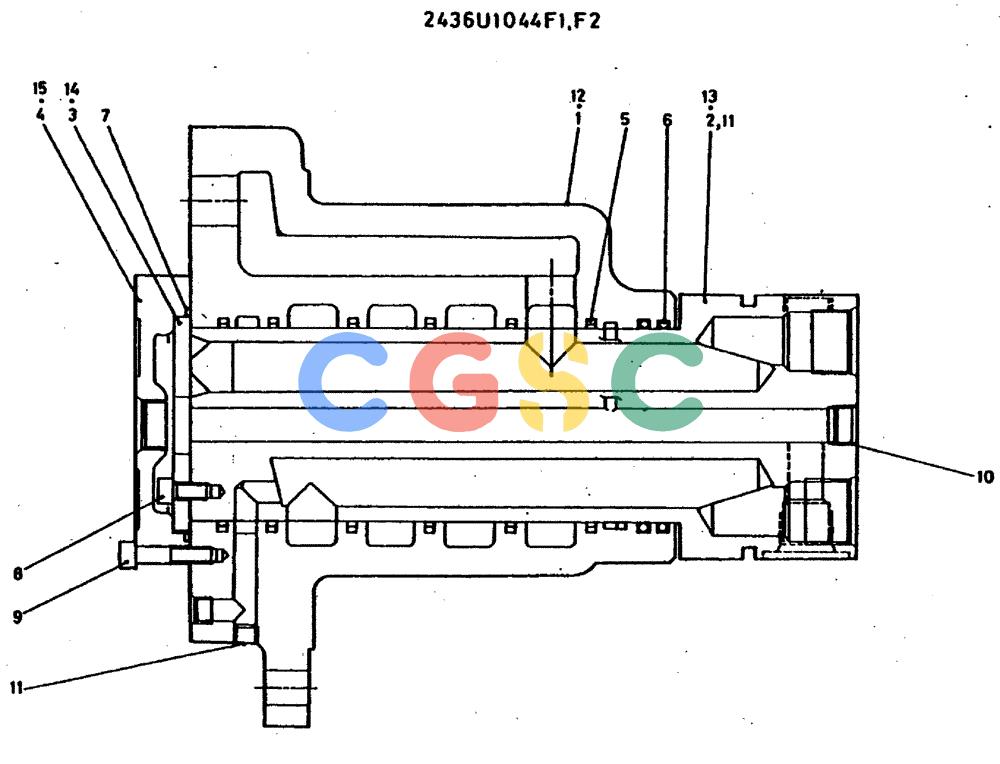

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1044F1.F2 | [1] | JOINT ASSY, SWIVEL CONSITS OF THE FOLLOWING PARTS | |
| 1. | 2436U1044S1 | [1] | BODY F2 ONLY | BODY F2 ONLY |
| 2. | 2436U1044S2 | [1] | STEP | KOBF2 ONLY Superseded by part number: 2436J182 |
| 3. | 2436U1044S3 | [1] | PLATE, THRUST F2 ONLY | PLATE, THRUST F2 ONLY |
| 4. | 2436U1044S4 | [1] | COVER | |
| 5. | 2436U453S8 | [6] | SEAL | KOB Superseded by part number: 2445Z1019 |
| 6. | 2445R152D5 | [2] | GASKET | KOBO-Ring -- ID 99.6 ± 0.40 x OD 111mm |
| 7. | ZD11G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 8. | ZS23C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08040 | [4] | SCREW,Hex Socket Head, M8 x 40mm | KOBM08x1.25x40mm Superseded by part number: ZS28C08040 |
| 10. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 11. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 12. | 2436U1044S12 | [1] | BODY | |
| 13. | 2436U1044S13 | [1] | STEM F1ONLY | |
| 14. | 2436U1044314 | [1] | PLATE, THRUST F1 ONLY | |
| 15. | 2436U1044S15 | [1] | COVER, F1 ONLY | |
| . . | 2436U1044R100 | [1] | SEAL KIT | KOBREPAIR KIT CONSITS OF REF 5 -7 |
