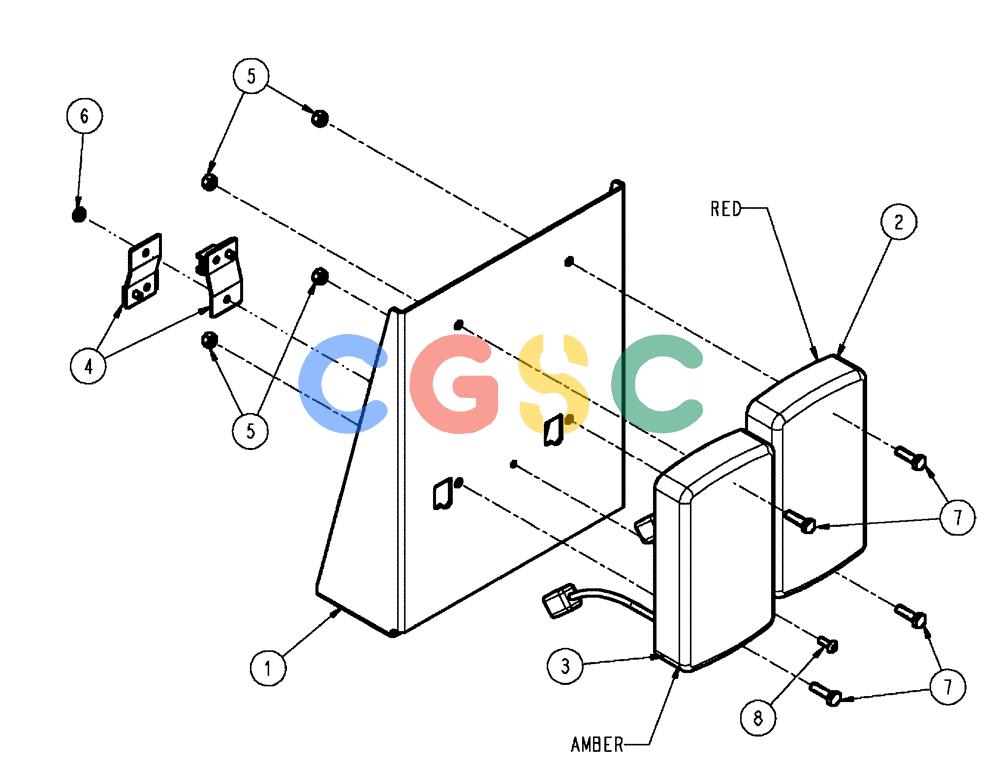

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (05-005) - TAILLIGHT ASSEMBLY, LEFT REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
343771A1
|
[1] |
BRACKET, SUPPORTING
|
TYR
Mount, Tail Light, Flex
|
| 2. |
BN325077
|
[1] |
LAMP, TAIL
|
BN
LIGHT, TAIL Led Red, 12V, 36 LED Pattern Superseded by part number: 84385294
|
| 2. |
84385294
|
[1] |
LAMP
|
BN
LED Red, 12V, 24 LED Pattern
|
| 3. |
BN325078
|
[1] |
LIGHT
|
BN
Turn, Led Amber, 12V, 36 LED Pattern Superseded by part number: 84385299
|
| 3. |
84385299
|
[1] |
LAMP
|
BN
Turn, LED Amber, 12V, 24 LED Pattern
|
| 4. |
87267088
|
[2] |
RETAINER
|
BN
Assembly, Deutsch RH Superseded by part number: 87716495, 87267086, 87029192B
|
| 5. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 6. |
BN50050
|
[1] |
NUT
|
CUR
10-32 HEX Superseded by part number: 225-30210
|
| 7. |
120100
|
[4] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 8. |
BN52348
|
[1] |
BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless
|
CUR
10-32 X 1/2 SSPH, Phillip
|
