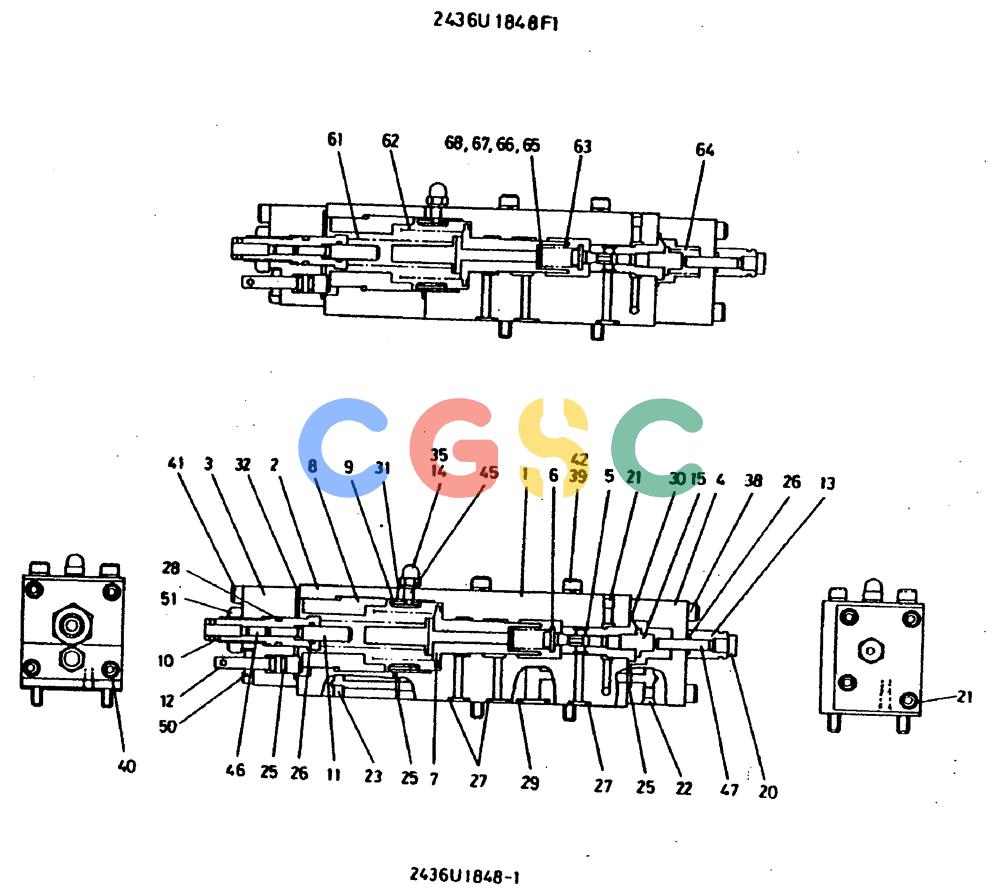

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-037) - VALVE ASSY/ P.N. 2436U1848F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
523 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1848F1 | [1] | VALVE | KOBAssy, CONSITS OF THE FOLLOWING PARTS |
| 1. | 2436U1848S1 | [1] | BODY | |
| 2. | 2436U1848S2 | [1] | CASE | |
| 3. | 2436U1848S3 | [1] | COVER | |
| 4. | 2436U1848S4 | [1] | COVER | |
| 5. | 2436U1848S5 | [1] | SEAT, VALVE | SEAT, VALVE |
| 6. | 2436U169S7 | [1] | PISTON | |
| 7. | 2436U1848S7 | [1] | PISTON | |
| 8. | 2436U1848S8 | [1] | PISTON | |
| 9. | 2436U1848S9 | [1] | SCREW, ADJUST | |
| 10. | 2436U1848S10 | [1] | SCREW | KOB |
| 11. | 2436U1848S11 | [1] | SCREW, ADJUST | |
| 12. | 2436U1848S12 | [1] | SCREW, ADJUST | |
| 13. | 2436U1692S8 | [1] | NUT | |
| 14. | 2436U1696S25 | [1] | NUT, CAP | |
| 15. | 2436U1848S15 | [1] | PLUG | KOB |
| 20. | 24100U448S12 | [1] | PLUG | KOB |
| 21. | 2436U1692S28 | [2] | PLUG | |
| 22. | 2436U1691S33 | [1] | PLUG | KOB |
| 23. | 2436U1848S23 | [1] | PLUG | |
| 25. | ZD12P00700 | [3] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 26. | ZD11P00800 | [2] | O-RING | HIT |
| 27. | ZD12P00900 | [3] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 28. | ZD11P01200 | [1] | O-RING | KOB |
| 29. | ZD11P01400 | [1] | O-RING | KOBID 13.8 ± 0.19 x OD 18.6mm |
| 30. | 2444T3275S2 | [1] | O-RING | KOB |
| 31. | 2436U1696S17 | [1] | O-RING | O-RING |
| 32. | 2436U1848S32 | [1] | O-RING | O-RING |
| 35. | 2436U1696S22 | [1] | FASTENER | |
| 38. | ZS23C06040 | [4] | SCREW,Hex Socket Head, M6 x 40mm | KOBM06x1.0x40mm |
| 39. | 2436U1848S39 | [5] | CAPSCREW | CAPSCREW |
| 40. | 2436U1848S40 | [2] | CAPSCREW | |
| 41. | 2436U1848S41 | [2] | CAPSCREW | |
| 42. | ZW22K06000 | [5] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 45. | ZS73C06016 | [1] | SETSCREW | |
| 46. | 2436U1846S46 | [1] | SETSCREW | |
| 47. | 2436U1846S47 | [1] | SETSCREW | |
| 50. | 2436U1696S11 | [1] | NUT | |
| 51. | 2436U1848S51 | [1] | NUT | |
| 61. | 2436U1848S61 | [1] | SPRING | |
| 62. | 2436U1848S62 | [1] | SPRING | |
| 63. | 2436U1848S63 | [1] | SPRING | |
| 64. | 2436U1848S64 | [1] | SPRING | |
| 65. | 2436U1696S33 | [1] | SHIM | |
| 66. | 2436U1696S34 | [1] | SHIM | |
| 67. | 2436U1848S67 | [1] | SHIM | |
| 68. | 2436U1848S68 | [1] | SHIM | |
| . . | 2436U1848R100 | [1] | SPRING KIT REPAIR KIT CONSITS OF REF 1, 2, 4, 5, 21, 22, & 23 | SPRING KIT REPAIR KIT CONSITS OF REF 1, 2, 4, 5, 21, 22, & 23 |
