神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-039) - VALVE ASSY, CUT OF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
969 次

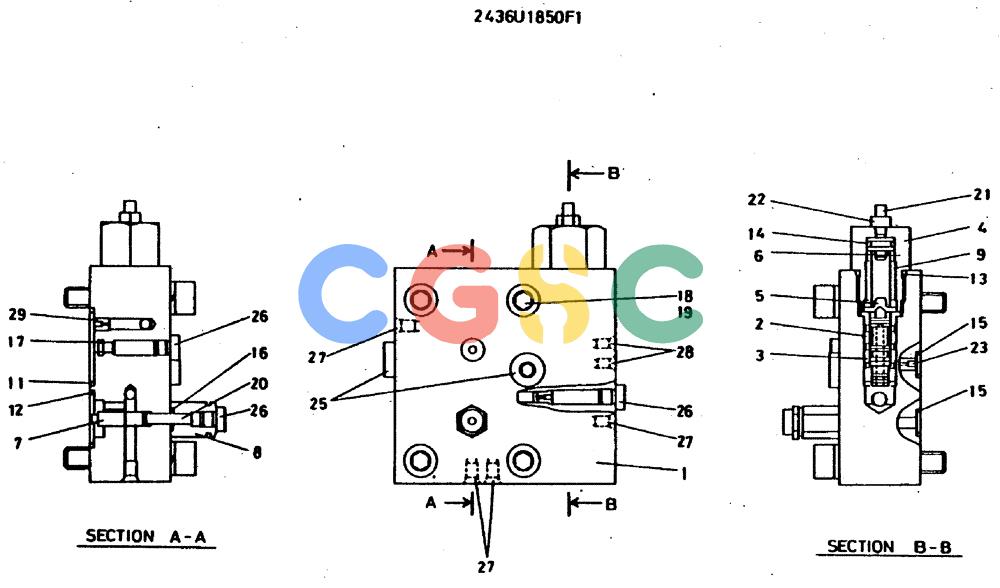

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1850F1 | [1] | X | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | 2436U1850S1 | [1] | COVER | |
| 2. | 2436U1692S2 | [1] | SPOOL | |
| 3. | 2436U1692S3 | [1] | BUSHING | |
| 4. | 2436U1692S4 | [1] | PLUG | |
| 5. | 2436U1692S5 | [1] | RETAINER | |
| 6. | 2436U1692S6 | [1] | RETAINER | |
| 7. | 2436U1692S7 | [1] | ROD | |
| 8. | 2436U1692S8 | [1] | NUT | |
| 9. | 2436U1692S9 | [1] | SPRING | |
| 11. | 2436U1694S11 | [1] | O-RING | KOB |
| 12. | 2436U1692S12 | [1] | O-RING | KOB |
| 13. | ZD11P02100 | [1] | O-RING | KOB |
| 14. | ZD11P01090 | [1] | O-RING | KOB |
| 15. | ZD12P01000 | [2] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 16. | ZD11P00800 | [1] | O-RING | HIT |
| 17. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 18. | ZS23C10055 | [4] | SCREW,Hex Socket Head, M10 x 55mm | KOBM10x1.50x55mm |
| 19. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 20. | ZS83C06025 | [1] | SETSCREW | |
| 21. | ZS83C06016 | [1] | SETSCREW | |
| 22. | 2436U1692S22 | [1] | NUT | |
| 23. | 2436U1691S34 | [1] | ORIFICE | ORIFICE |
| 25. | 2436U1691S31 | [2] | PLUG | |
| 26. | 24100U448S12 | [3] | PLUG | KOB |
| 27. | 2436U1691S33 | [2] | PLUG | KOB |
| 28. | 2436U1692S28 | [1] | PLUG | |
| 29. | 2436U1694S29 | [1] | ORIFICE | |
