神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-042) - VALVE ASSY, SHUTTLE/ P.N. 2436U1891F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
866 次

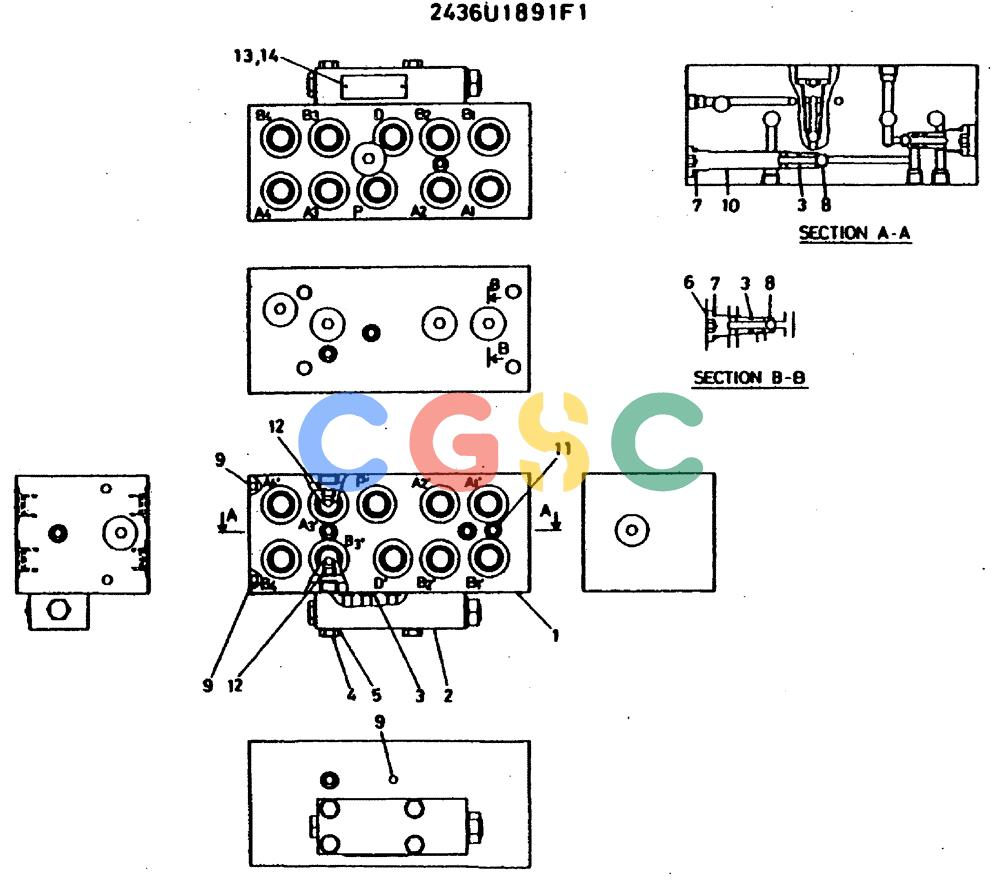

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1891F1 | [1] | VALVE ASSY, CONTROL CONSITS OF THE FOLLOWING PARTS | VALVE ASSY, CONTROL CONSITS OF THE FOLLOWING PARTS |
| 1. | NNS | [1] | BODY | |
| 2. | 2436U947R120 | [1] | REPAIR KIT | KOBVALVE |
| 3. | ZD12P00700 | [11] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 4. | 2436U1706S4 | [4] | BOLT | |
| 5. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 6. | 2436U946S6 | [6] | PLUG | PLUG |
| 7. | 2483U283S9 | [7] | O-RING | KOB Superseded by part number: ZD12P01100 |
| 8. | 2436U281S37 | [7] | BALL | KOB |
| 9. | NNS | [3] | BALL | |
| 10. | 2436U1706S9 | [1] | PLUG | |
| 1 1. | 2436U1707S12 | [8] | PLUG | |
| 12. | NNS | [2] | ORIFICE ASSY | |
| 13. | NNS | [1] | NAME-PLATE | |
| 14. | NNS | [2] | SCREW, DRIVE | |
