神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-041) - VALVE ASSY, SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
619 次

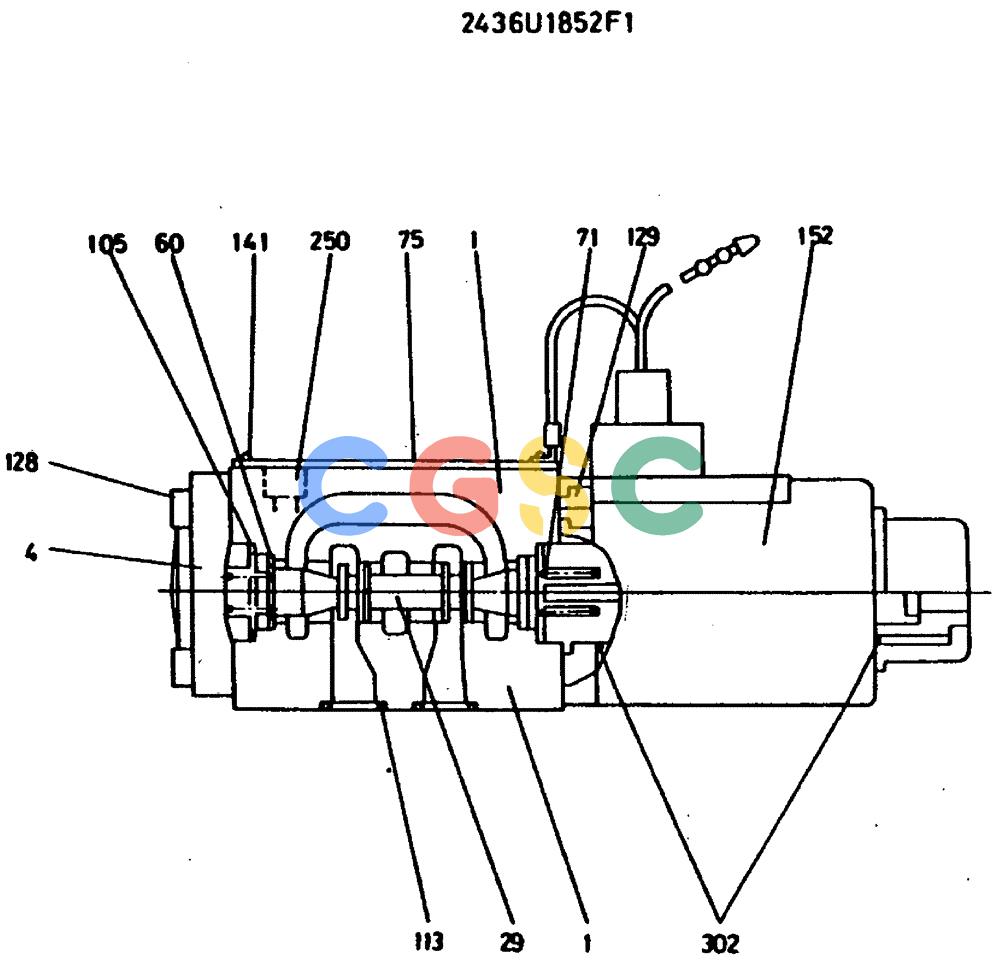

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1852F1 | [1] | SOLENOID VALVE | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | 24346U1852S1 | [1] | BODY | |
| 4. | 2436U1852S4 | [1] | COVER | |
| 29. | 2436U1695S4 | [1] | SPOOL | |
| 60. | 2436U1852S60 | [2] | RETAINER | |
| 71. | 2436U1852S71 | [2] | SPRING | |
| 75. | 2436U1852S75 | [1] | NAME-PLATE | |
| 105. | 2436U1852S105 | [2] | O-RING | KOB |
| 113. | 2436U1695S15 | [4] | O-RING | KOB |
| 128. | 2436U1852S128 | [4] | CAPSCREW | |
| 129. | 2436U1852S129 | [4] | CAPSCREW | |
| 141. | 2436U1852S141 | [2] | MACHINESCREW | |
| 152. | 2436U1852S152 | [1] | SOLENOID VALVE | KOB |
| 250. | 2436U1695S9 | [4] | CAPSCREW | |
| 302. | 2436U1852S302 | [2] | O-RING | KOB |
