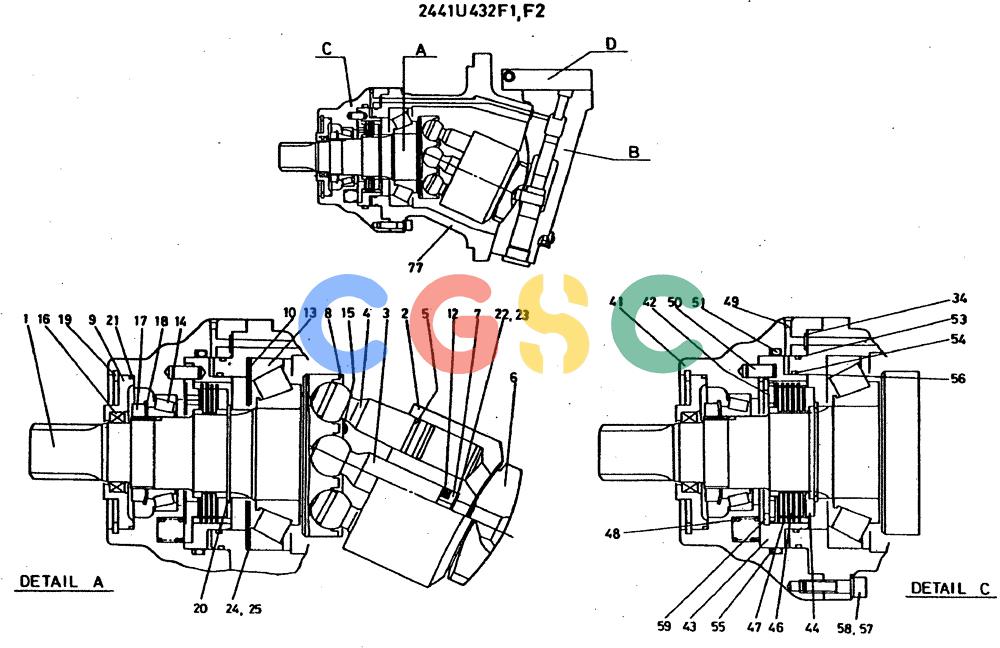

| . . | 2441U432F1, F2 | [1] | MOTOR ASSY, CONSITS OF THE FOLLOWING PARTS | |
| 1. | 2441U432S1 | [1] | SHAFT | SHAFT |
| 2. | 2441U432S2 | [1] | BLOCK CYLINDER | BLOCK CYLINDER |
| 3. | 2441U432S3 | [1] | PIN | PIN |
| 4. | 2441U432S4 | [7] | PISTON | KOB |
| 5. | 2441U432S5 | [7] | PISTON RING | KOB |
| 6. | 2441U432S6 | [1] | PLATE | PLATE |
| 7. | 2441U432S7 | [1] | RETAINER | RETAINER |
| 8. | 2441U658S12 | [1] | PLATE | KOB |
| 9. | 2441U432S78 | [1] | CASE | KOB |
| 10. | 2441U432S10 | [1] | SHIM | KOB |
| 12. | 2441U432S12 | [4] | SPRING | KOB |
| 13. | 2441U432S13 | [1] | TAPERED BEARING | KOB |
| 14. | 2441U432S14 | [1] | BEARING | KOB |
| 15. | 2441U658S25 | [14] | SCREW | KOB |
| 16. | 2441U432S16 | [1] | SEAL KIT | KOB Superseded by part number: 2441U383S212 |
| 17. | 2441U432S17 | [1] | NUT | KOB |
| 18. | 2441U432S18 | [1] | LOCK WASHER | KOB |
| 19. | 2441U404S215 | [1] | RETAINER | KOB |
| 20. | 2441U432S20 | [1] | RING | KOB |
| 21. | 2441U404S217 | [1] | O-RING | KOB |
| 22. | 2441U432S22 | [1] | SHIM | KOB |
| 23. | 2441U432S23 | [1] | SHIM | KOB |
| 24. | 2441U658S27 | [2] | SHIM | KOB |
| 25. | 2441U658S28 | [1] | SHIM | KOB |
| 27. | 2441U432S27 | [1] | BODY | |
| 28. | 2441U432S28 | [1] | MANIFOLD | MANIFOLD |
| 29. | 2441U432S29 | [1] | ROD | ROD |
| 30. | 2441U432S30 | [1] | RETAINER | RETAINER |
| 31. | 2441U432S31 | [1] | PLUG | PLUG |
| 32. | 24100U448S12 | [1] | PLUG | KOB |
| 33. | 24100U448S16 | [1] | PLUG | KOB |
| 34. | ZD12P01000 | [2] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 35. | ZS23C16080 | [2] | CAPSCREW,Hex Socket Head, M16 x 80mm | KOBSCREW M16x2.0x80mm |
| 36. | ZS23C16035 | [6] | SCREW,Hex Socket Head, M16 x 35mm | KOBM16x2.0x35mm |
| 37. | ZW22K16000 | [8] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 38. | ZS73C08012 | [1] | CAPSCREW M08x1.25x12mm | CAPSCREW M08x1.25x12mm |
| 39. | 2441U658S46 | [2] | PIN | PIN |
| 41. | 2441U432S41 | [1] | HOUSING | HOUSING |
| 42. | 2441U432S42 | [1] | PLATE | PLATE |
| 43. | 2441U432S43 | [1] | RETAINER | KOB |
| 44. | 2441U432S44 | [1] | PIECE | PIECE |
| 46. | 2441U432S46 | [5] | PLATE | KOB |
| 47. | 2441U432S47 | [5] | PLATE | KOB |
| 48. | 2441U432S48 | [8] | SPRING | KOB |
| 49. | 2436U1692S28 | [1] | PLUG | |
| 50. | 2441U432S50 | [2] | PIN | KOB |
| 51. | ZD12G15000 | [1] | O-RING,149.30mm ID x 160.70mm OD x 5.70mm | KOBID 149.30 ± 1.19 x OD 160mm |
| 53. | ZD12G14500 | [1] | O-RING,144.40mm ID x 150.60mm OD x 3.10mm | KOBID 144.40 ± 1.16 x OD 150mm |
| 54. | ZD12G12000 | [1] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 55. | ZD75G15000 | [1] | BACK-UP RING | KOB |
| 56. | ZD75G12000 | [1] | BACK-UP RING | KOB |
| 57. | ZS23C10035 | [12] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 58. | ZW22K10000 | [12] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 59. | 2441U721S28 | [1] | RING | KOB |
| 61. | 2441U432S61 | [1] | COVER | |
| 62. | 2441U432S62 | [1] | SPOOL | |
| 63. | 2441U432S63 | [2] | PLUG | |
| 64. | 2441U432S64 | [2] | GUIDE | |
| 65. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 66. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 67. | ZD11P02100 | [1] | O-RING | KOB |
| 68. | ZD12P00900 | [2] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 69. | 2436U1691S31 | [2] | PLUG | |
| 70. | 2436U1691S33 | [7] | PLUG | KOB |
| 71. | 2441U432S71 | [1] | PIN | |
| 72. | 2441U432S72 | [1] | SPRING | |
| 73. | ZS23C10055 | [6] | SCREW,Hex Socket Head, M10 x 55mm | KOBM10x1.50x55mm |
| 74. | 2441U432S74 | [2] | BALL | |
| 75. | 2436U1692S28 | [1] | PLUG | |
| 77. | 2441U432S77 | [1] | HOUSING | HOUSING |
| . . | 2441U432R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 1 - 10, 12, & 13 |
| . . | 2441U432R110 | [1] | REPAIR KIT REPAIR KIT CONSISTS OF REF 27 - 39 | REPAIR KIT REPAIR KIT CONSISTS OF REF 27 - 39 |
| . . | 2441U432R120 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 51, 53 - 59 |
| . . | 2441U432R130 | [1] | REPAIR KIT REPAIR KIT CONSISTS OF REF 49. 61 - 74, & 76 | REPAIR KIT REPAIR KIT CONSISTS OF REF 49. 61 - 74, & 76 |
