神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-050) - CYLINDER ASSY, ARM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

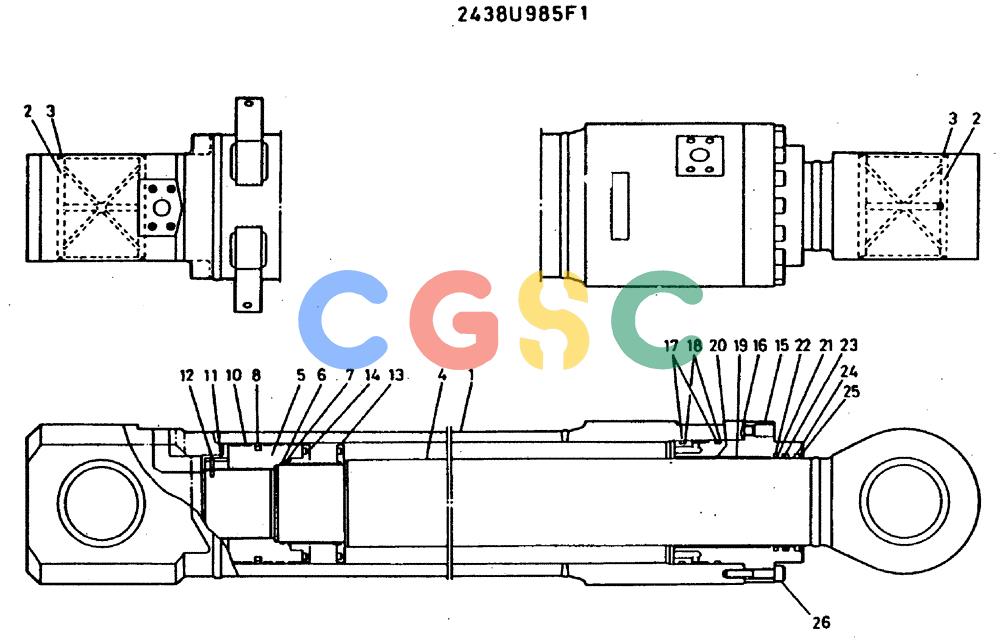

| . . | 2438U985F1 | [1] | ARM | KOBCONSITS OF THE FOLLOWING PARTS |
| 1. | 2438U1343S1 | [1] | TUBE | KOB |
| 2. | 2438U1343S2 | [2] | BUSHING | KOB |
| 3. | 2438U662S3 | [4] | SEAL | KOB Superseded by part number: 2445R138D10 |
| 4. | 2438U1343S27 | [1] | PISTON ROD | KOB |
| 5. | 2438U985S3 | [1] | MANIFOLD | MANIFOLD |
| 6. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 7. | ZD75G11500 | [2] | BACK-UP RING | KOB |
| 8. | 2438U985S8 | [1] | SEAL | KOB |
| 10. | R45T0014D9 | [4] | WEAR RING | KOB |
| 11. | 2438U1343S11 | [1] | NUT | KOB |
| 12. | 2438U664S12 | [1] | WEAR RING | KOB |
| 13. | 2438U985S13 | [1] | PLATE | PLATE |
| 14. | 2438U324S38 | [1] | SPRING | KOB |
| 15. | 2438U1343S15 | [1] | COVER, ROD | COVER, ROD |
| 16. | 2438U1343S16 | [1] | O-RING | KOB |
| 17. | ZD12G17500 | [2] | O-RING,174.30mm ID x 185.70mm OD x 5.70mm | KOB |
| 18. | 2438U1343S18 | [2] | BACK-UP RING | KOB |
| 19. | 2438U402S13 | [1] | BUSHING | KOBBUSHING |
| 20. | 2438U333S19 | [1] | CLIP | KOB Superseded by part number: 2438U1260S13 |
| 21. | R45P0050D13 | [1] | SEAL | KOB |
| 22. | R45P0051D27 | [1] | O-RING | KOB |
| 23. | 2418U130D29 | [1] | PACKING | KOB |
| 24. | 2438U1343S28 | [1] | DUST CAP | KOB |
| 25. | 2438U402S18 | [1] | CLIP | KOB |
| 26. | ZS23C16070 | [16] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| . . | 2438U1343R120 | [1] | SEAL KIT | KOBREPAIR KIT CONSISTS OF REF 16, 17, 18, 21, 22, 23, & 28 |
| . . | 2438U985R200 | [1] | REPAIR KIT REPAIR KIT CONSISTS OF REF 6, 7, 8, & 10 | REPAIR KIT REPAIR KIT CONSISTS OF REF 6, 7, 8, & 10 |
