神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-052) - MOTOR ASSY, SWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
746 次

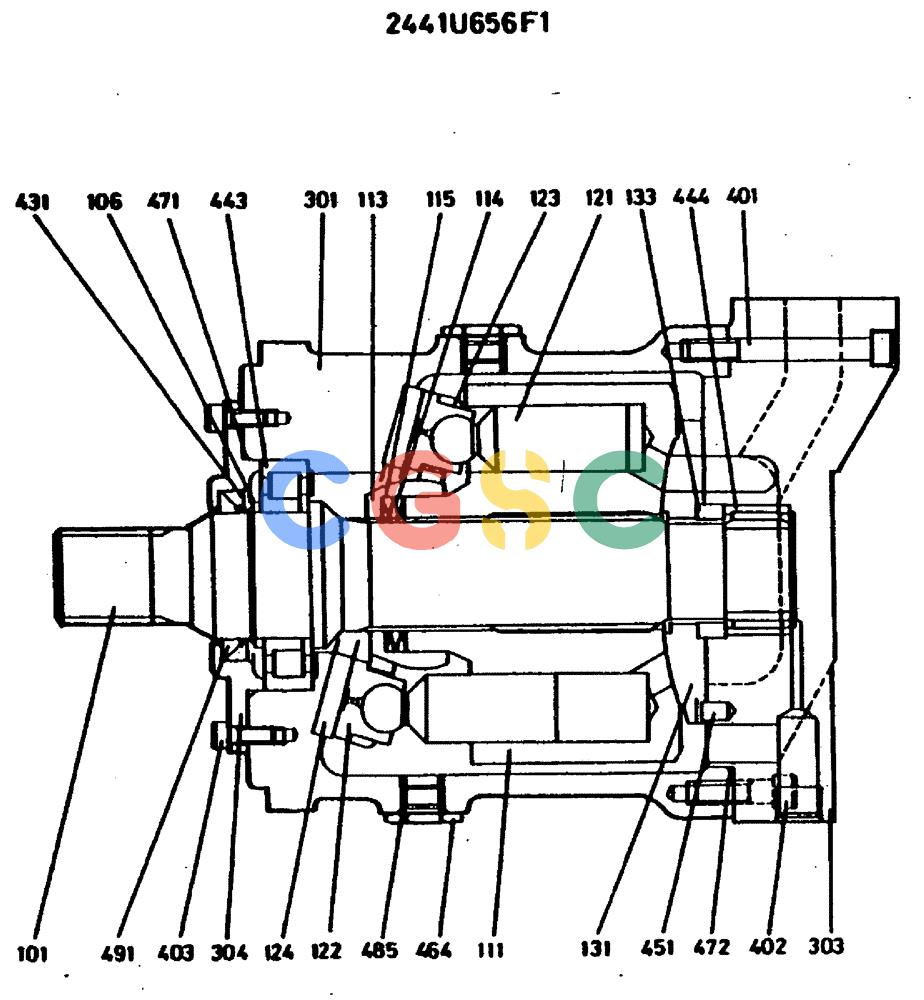

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U456F1 | [1] | MOTOR ASSY SWING CONSISTS OF THE FOLLOWING PARTS | |
| 101. | 2441U667S101 | [1] | SHAFT | SHAFT |
| 111. | 2441U667S111 | [1] | CYLINDER | |
| 113. | 2441U667S113 | [1] | HOLDER | |
| 114. | 244IU667S114 | [4] | SPRING | |
| 115. | 2441U667S115 | [1] | SHIM | KOB |
| 121. | 2441U667S121 | [9] | PISTON | |
| 122. | 2441U667S122 | [9] | SHOE | |
| 123. | 2441U667S123 | [1] | PLATE | PLATE |
| 124. | 2441U667S124 | [1] | PLATE | KOB |
| 131. | 2441U667S131 | [1] | PLATE, VALVE | |
| 133. | 2441U667S133 | [1] | GUIDE RING | KOB |
| 301. | 2441U667S301 | [1] | BELT | BELT |
| 303. | 2441U656S303 | [1] | COVER, VALVE | COVER, VALVE |
| 304. | 2441U667S304 | [1] | COVER | COVER |
| 401. | ZS23C10085 | [3] | SCREW,Hex Socket Head, M10 x 85mm | KOBM10x1.50x85mm |
| 402. | ZS23C10035 | [13] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 403. | ZS23C08020 | [6] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 431. | ZR16X06000 | [1] | RING | KOBRING, SNAP |
| 443. | 2441U667S443 | [1] | BEARING | KOBBEARING |
| 444. | 2441U667S444 | [1] | ROLLER CAGE BEARING | KOB |
| 451. | 2441U474S888 | [1] | PIN | KOB |
| 464. | 2441U436S468 | [2] | PLUG | KOB |
| 471. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBID 109.4 ± 0.91 x OD 115mm |
| 472. | 2441U413S748 | [1] | O-RING | KOB |
| 485. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 491. | 2441U667S491 | [1] | SEAL KIT | KOB |
| . . | 2441U667R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 111, 121, 122, & 131 |
| . . | 2441U667R110 | [1] | PLATE | KOBREPAIR KIT CONSISTS OF REF 113 & 123 |
| . . | 2441U656R120 | [1] | COVER ASSY | KOBREPAIR KIT CONSISTS OF REF 133. 303, 451 |
