神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (09-053) - PUMP ASSY, HYDRAULIC Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
880 次

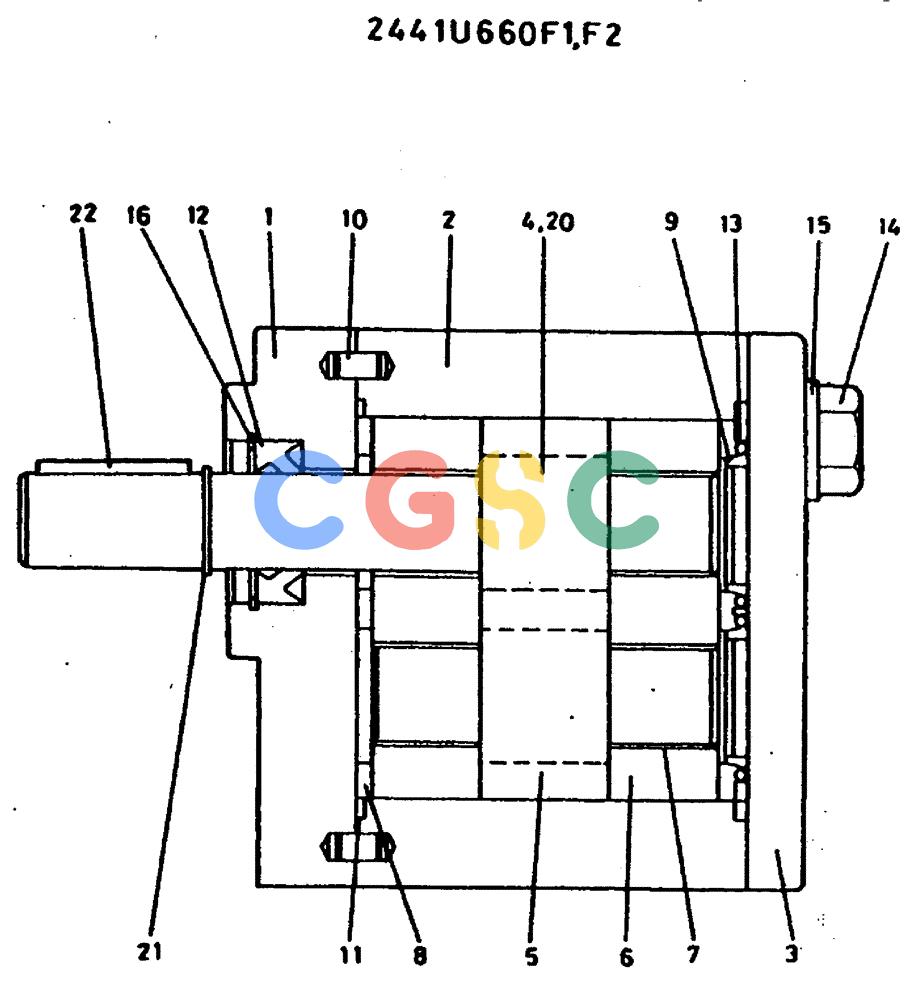

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U660F1, F2 | [1] | CONSITS OF THE FOLLOWING PARTS | |
| 1. | 2441U661S1 | [1] | FRAME | KOBFRAME |
| 2. | 2441U660S2 | [1] | CASE | |
| 3. | 2441U661S3 | [1] | COVER | |
| 5. | 2441U660S5 | [1] | GEAR | |
| 6. | 2441U660S6 | [2] | PLATE, SLIDE | |
| 7. | 2441U466S46 | [4] | BUSHING | KOB |
| 8. | 2441U661S8 | [2] | PLATE | KOB |
| 9. | 2441U466S48 | [2] | GUIDE | KOB |
| 10. | 2441U661S10 | [2] | PIN | KOBPIN |
| 11. | 2441U661S11 | [2] | RING | KOB |
| 12. | 2441U661S12 | [1] | OIL SEAL | KOB |
| 13. | 2441U661S13 | [2] | O-RING | KOB |
| 14. | 2441U660S14 | [2] | CAPSCREW | |
| 15. | ZW11X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 16. | ZR26X03000 | [1] | SEAL RETAINER | KOB |
| 20. | 2441U660S20 | [1] | KEY F2 ONLY | KEY F2 ONLY |
| 21. | 2441U661S21 | [1] | SNAP RING | KOBF2 ONLY |
| 22. | 2441U661S22 | [1] | KEY | KOBF2 ONLY |
