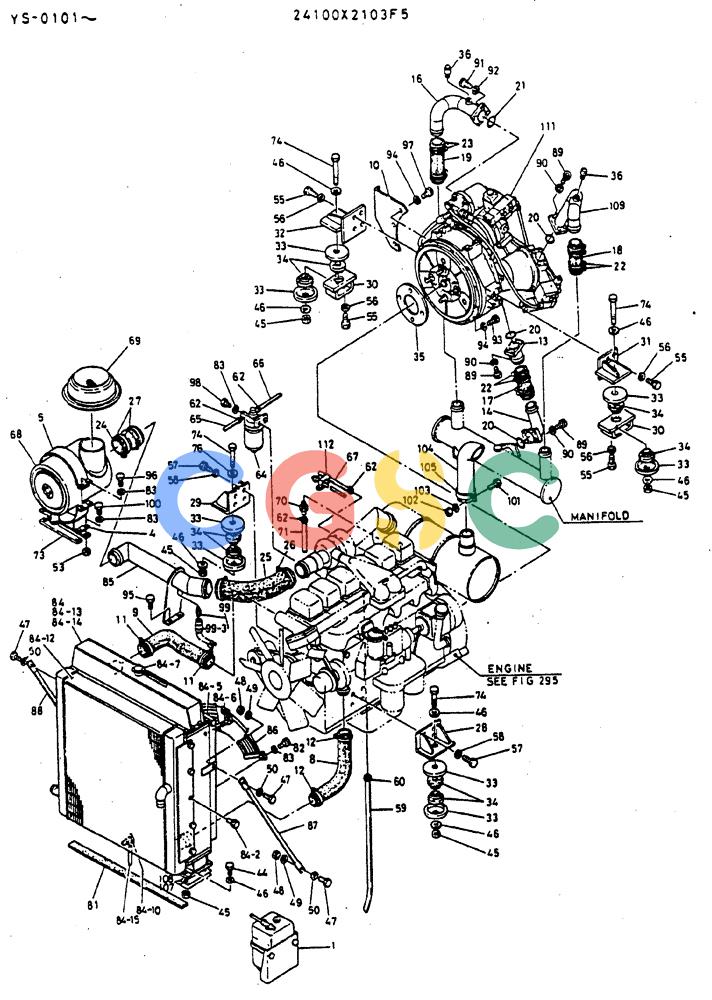

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-001) - POWER-PLANT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X2103F5 | [1] | POWER-PLANT ASSY | |
| 1. | 24100N3847F1 | [1] | TANK | KOBSEE FIGURE 05-006 |
| 4. | 2416N2661 | [1] | BRACKET | BRACKET |
| 5. | 2432P1144 | [1] | BAND | KOB |
| 8. | 2420R530D2 | [1] | HOSE | KOB |
| 9. | 2420R521 | [1] | FLEXIBLE HOSE | KOB |
| 10. | 2416T10512D2 | [1] | BRACKET | |
| 11. | ZC15X07000 | [2] | CLIP | KOB |
| 12. | ZC15X08000 | [2] | CLIP | KOB |
| 13. | 2418T9432 | [1] | TUBE | |
| 14. | 2418T9433 | [1] | TUBE | |
| 15. | 2418P17252 | [1] | TUBE | |
| 16. | 2418P8904 | [1] | TUBE | |
| 17. | R18T0028D3 | [1] | HOSE | KOB |
| 18. | R18T0028D1 | [1] | HOSE | KOB |
| 19. | 2444Z1712D1 | [1] | HOSE | KOB |
| 20. | ZD11608500 | [3] | O-RlNG | |
| 21. | ZD11607500 | [1] | O-RING | |
| 23. | ZC15X09000 | [4] | CLAMP | KOB |
| 24. | 2444Z1909 | [1] | REDUCER | KOB |
| 25. | 2444R738D3 | [1] | HOSE | KOB |
| 27. | ZC15X13000 | [1] | CLIP | KOBCLAMP |
| 28. | 2416P10144 | [1] | BRACKET | BRACKET |
| 29. | 2416P10116 | [1] | BRACKET BRACKET | BRACKET BRACKET |
| 30. | 2416P10115 | [2] | BRACKET | BRACKET |
| 31. | 2416P7072D1 | [1] | BRACKET | BRACKET |
| 32. | 2416P7072D2 | [1] | BRACKET | BRACKET |
| 33. | 2414T3328 | [8] | COVER | KOB |
| 34. | 2416R155 | [8] | RUBBER MOUNTING | KOBMTG |
| 35. | 2418P7485D2 | [1] | FLANGE | KOB |
| 36. | 2436Z2777 | [2] | BLEEDER | |
| 44. | ZS18C20055 | [4] | SCREW,Hex, M20 x 55mm | KOBM20x2.50x55mm |
| 45. | ZN18C20016 | [8] | NUT | KOBM20x2.5mm |
| 46. | ZW16H20000 | [16] | WASHER | KOBID 21 x OD 40 x Th 4.5mm |
| 47. | ZS18C16040 | [4] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 48. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| 49. | ZW26X16000 | [4] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 50. | ZW16X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 53. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 55. | 2420Z1215 | [12] | SCREW | KOB |
| 56. | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 57. | ZS18C14030 | [8] | SCREW,Hex, M14 x 30mm | KOBM14x2.0x30mm |
| 58. | ZW16H14000 | [8] | WASHER | KOBID 15 x OD 29 x Th 3.2mm |
| 62. | ZC15X01300 | [7] | CLIP | KOB |
| 65. | 4018Z1D10 | [1] | FLEXIBLE HOSE | KOB |
| 66. | 4018Z1D8 | [1] | TUBE | KOB |
| 67. | 4018Z1D22 | [1] | RIGID TUBE | KOB |
| 70. | 2444Z1293D10 | [1] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 71. | 2420Z795D2 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 77254532, HX11Y07100DX |
| 73. | 2418T13212 | [2] | SPACER | SPACER |
| 74. | 2420Z1595 | [4] | SCREW | KOB |
| 81. | 2416Z379D1 | [1] | INSULATOR | |
| 82. | ZS18F10020 | [3] | BOLT,Hex, M10 x 20mm | KOBM10x1.25x20mm |
| 84. | 2452U288F2 | [1] | RADIATOR | RADIATOR |
| 84-2. | 2452U16032 | [18] | CAPSCREW ASSY | |
| 84-5. | 2452U28859 | [1] | SHROUD | |
| 84-7. | 2414Z216 | [1] | CAP | KOB |
| 84-10. | 2452U136521 | [1] | COCK, DRAIN | |
| 84-12. | 2452U288S12 | [1] | COOLER ASSY. | KOB |
| 84-13. | 2452U288513 | [1] | RADIATOR ASSY | |
| 84-14. | 2452U288S14 | [1] | RADIATOR | KOB |
| 84-15. | 2452U288515 | [1] | PIPE | |
| 85. | 2418P15752 | [1] | PIPE | PIPE |
| 86. | 24I4N3279 | [1] | GUARD, FAN | |
| 87. | 2416P7334D2 | [1] | STAY | |
| 88. | 2416P7334D3 | [1] | STAY | |
| 89. | 2420N458D14035 | [12] | CAPSCREW | |
| 90. | ZW26K16000 | [12] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 91. | 2420N458D17030 | [4] | CAPSCREW, SOCKET | |
| 92. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 93. | 2420N456010040 | [9] | CAPSCREW | |
| 94. | ZW26K10000 | [12] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 95. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 97. | 2420N458010050 | [3] | CAPSCREW | |
| 98. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 99. | 2479R686F7 | [1] | INDICATOR | |
| 99-3. | 2450U5D13 | [1] | INDICATOR, TURN SIGN | KOB |
| 101. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 102. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 103. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 104. | 2418P15862 | [1] | PIPE | KOB |
| 105. | 2432T2007 | [1] | CLAMP | KOB |
| 106. | ZC13X10500 | [11] | CLIP | |
| 107. | 2420T5896D1 | [2] | SHIM | |
| 108. | 2420T5896D2 | [2] | SHIM | |
| 111. | 2441U732F1 | [1] | PUMP ASSY SEE FIGURE 04-004 | |
| 112. | ZC47X16011 | [4] | CLIP | KOB |
| 59. | ME058989 | [1] | HOSE | SUMBLEEDER (MITSUBISHI PARTS. NO.) Superseded by part number: 240047A1 |
| 60. | M5666012 | [1] | CLAMP (MITSUBISHI PARTS. NO.) | |
| 64. | ME069670 | [1] | SEPARATOR, WATER (MITSUBISHI PARTS. NO.). | |
| 66. | ME58613 | [1] | CLEANER ASSY, AIR (MITSUBISHI PARTS. NO.) | |
