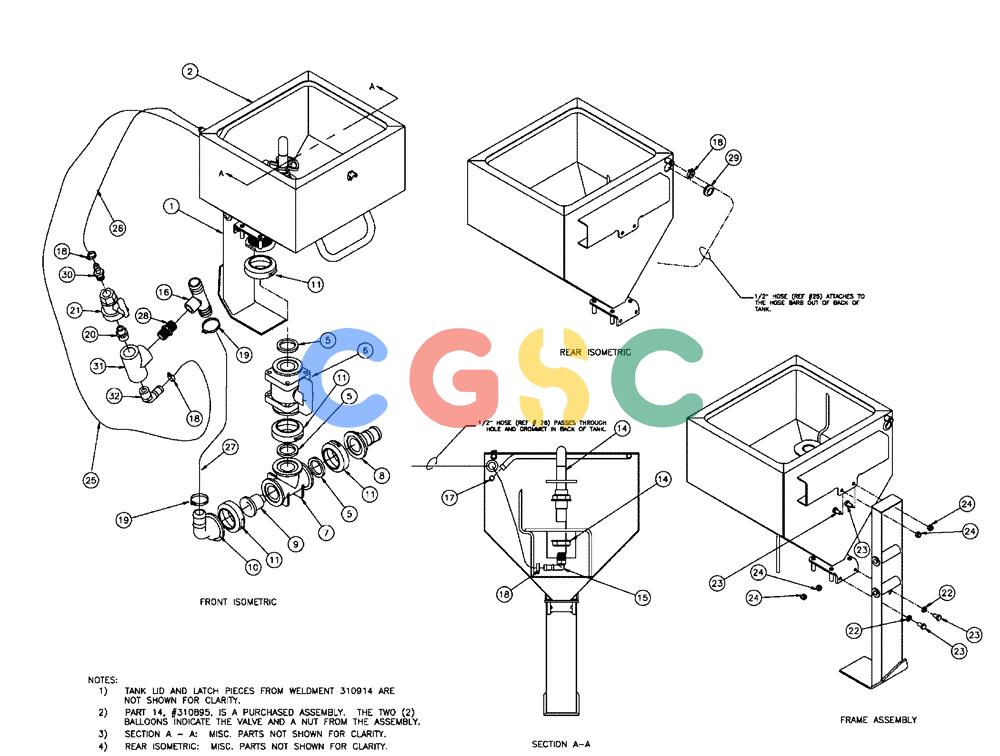

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (11-001) - CHEMICAL EDUCTOR TANK ASSY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN313388
|
[1] |
SUPPORT
|
BN
Eductor
|
| 2. |
BN320983
|
[1] |
TANK
|
BN
Inductor 2
|
| 5. |
BN303204
|
[3] |
GASKET,41.4mm ID x 55.63mm OD x 6.35mm Thk
|
BN
2" Flange, EPDM
|
| 6. |
BN304328
|
[1] |
VALVE
|
BN
2" FL, W/T Handle
|
| 7. |
405779A1
|
[1] |
TEE
|
FLX
Poly 2" Flange Manifold
|
| 8. |
434039A1
|
[1] |
FITTING
|
FLX
2" Manifold x 1-1/2" Hose Barb, Poly
|
| 9. |
BN313919
|
[1] |
VENTURI
|
BN
Chemical Eductor, 1/4
|
| 10. |
BN303189
|
[1] |
ELBOW,2" Flange x 1-1/4" Hose Barb, Poly
|
BN
2" Flange x 1-1/4" Hose Barb, Poly Superseded by part number: 405783A1
|
| 11. |
BN303199
|
[4] |
CLAMP,2" Flange
|
BN
2" Standard Flange Superseded by part number: 400502A1
|
| 14. |
BN310895
|
[1] |
VALVE
|
BN
Eductor Jug Rinse
|
| 15. |
BN73511
|
[1] |
FITTING
|
BN
90° 1/2" Female NPT x 1/2" Male NPT Superseded by part number: 87414643
|
| 16. |
BN311026
|
[1] |
TEE
|
BN
1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly
|
| 17. |
BN311050
|
[1] |
PLUG
|
BN
Pipe, 1/8" poly hex
|
| 18. |
BN75956
|
[4] |
CLAMP
|
BN
ADJ #10SS
|
| 19. |
BN76084
|
[2] |
HOSE CLAMP
|
BN
Adj. #24, SS Superseded by part number: 87485002
|
| 20. |
BN73572
|
[1] |
NIPPLE, LUBE
|
BN
NIPPLE 3/4-1/2, Poly Superseded by part number: 406147A1
|
| 21. |
BN311100
|
[1] |
VALVE
|
BN
Ball, 1/2" Poly Superseded by part number: 34308003
|
| 22. |
BN300497
|
[2] |
WASHER,M8, 10.9
|
BN
Superseded by part number: 896-15008
|
| 23. |
16043224
|
[4] |
BOLT,Hex, M8 x 16mm, Cl 8.8
|
NH
|
| 24. |
86528579
|
[4] |
NUT,M8 x 1.25
|
WIN
|
| 25. |
BN311185
|
[1] |
HOSE,0.50" ID x 24.00"
|
BN
EPDM
|
| 26. |
BN311186
|
[1] |
HOSE,0.50" ID x 41.00"
|
BN
EPDM
|
| 27. |
BN24530
|
[1] |
HOSE
|
BN
1 1/4" EPDM x 6"
|
| 28. |
BN73565
|
[1] |
NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly
|
BN
3/4" Short Pipe, Poly Superseded by part number: 405788A1
|
| 29. |
BN85855
|
[1] |
GROMMET
|
BN
Lg, for 1/2" hose
|
| 30. |
BN73510
|
[1] |
HOSE
|
BN
barb, 1/2" X 1/2" Poly Superseded by part number: 426779A1
|
| 31. |
BN73560
|
[1] |
TEE
|
BN
3/4" NPT, Poly Superseded by part number: 321991A1
|
| 32. |
BN73578
|
[1] |
FITTING
|
BN
Barb, 3/4 NPT x 1/2 HB, 90
|
