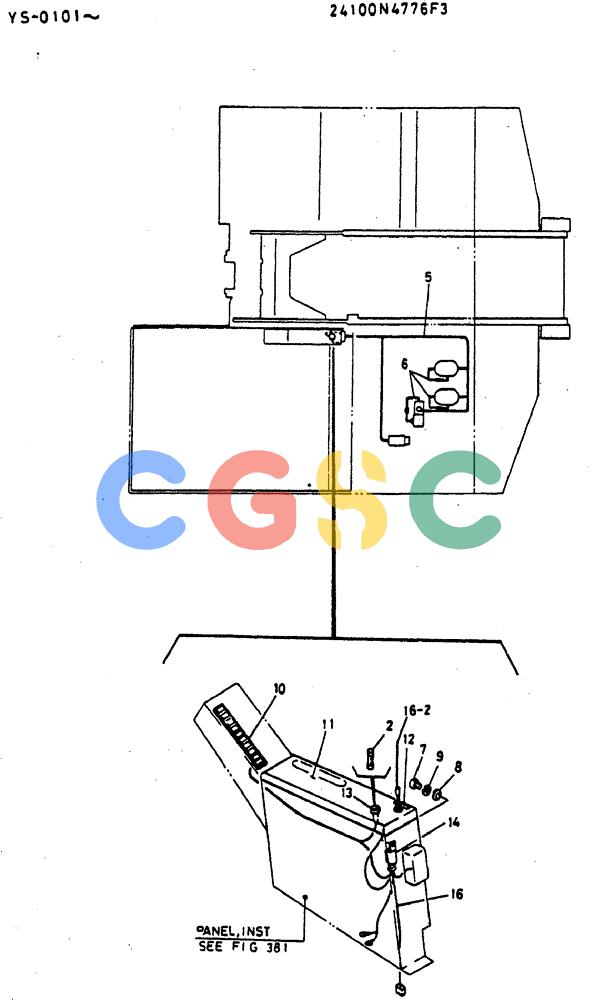

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-013) - WIRING ASSY/ P.N. 24100N4776F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4776F3 | [1] | WIRING ASSY | |
| 2. | 2479R714S3 | [1] | FUSE | KOB |
| 5. | 2479Z1427 | [1] | WIRE HARNESS | KOB |
| 6. | 2479Z977 | [3] | HARNESS | KOB |
| 7. | ZS31C06012 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 8. | ZW16K06000 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 9. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 10. | 2456Z320 | [1] | LENS | KOB |
| 11. | 2427T894 | [1] | REWORK, PANEL | REWORK, PANEL |
| 12. | 2432T2341 | [1] | LABEL | KOB |
| 13. | 2487Z71 | [1] | DIVIDER | DIVIDER |
| 14. | 2479U229 | [1] | RELAY | KOB |
| 16. | 2479R1356 | [1] | WIRE HARNESS | KOB |
| 16-2. | 2479Z1078 | [1] | SWITCH | SWITCH |
