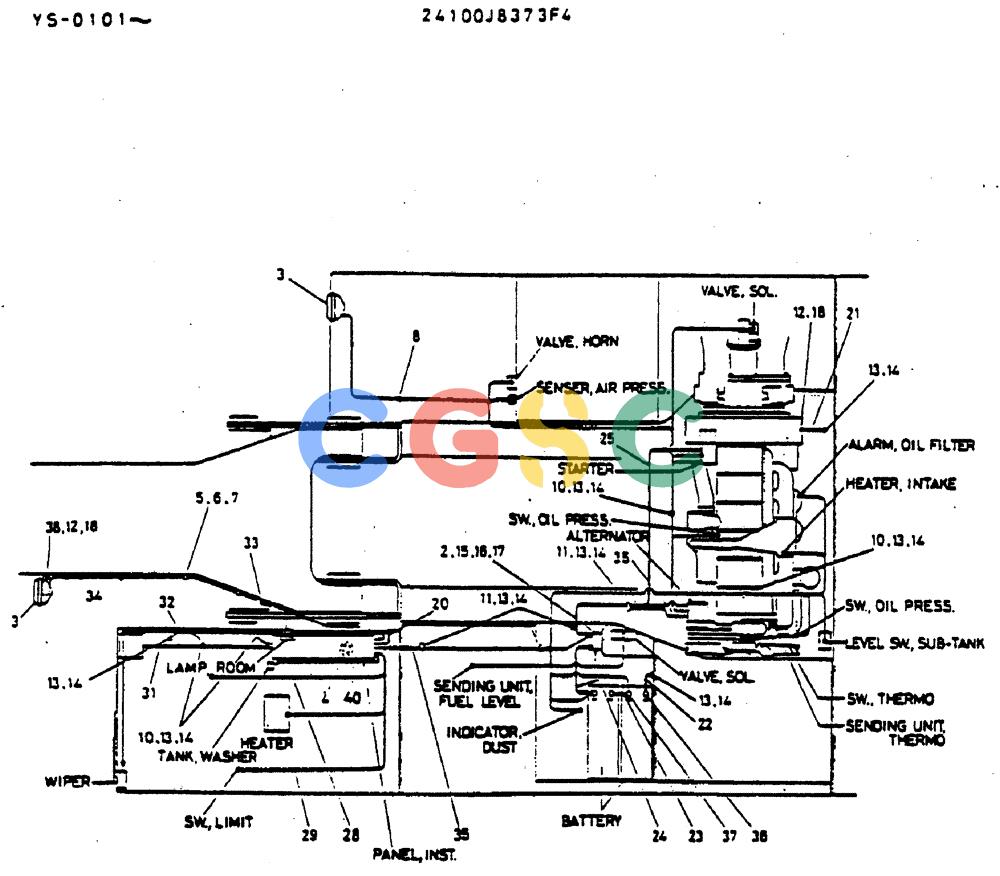

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (05-012) - WIRING ASSY, ELEC/ P.N. 24100J8373F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
580 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J8373F4 | [1] | WIRE HARNESS | KOB |
| 2. | 2479U185 | [1] | RELAY | KOBSEE FIGURE 05-015 YS., Serial Range: 0101-0142 Superseded by part number: 2479R1368 |
| 3. | 2456R229F3 | [2] | CAP SEE FIGURE 05-016 YS., Start Serial: 0143 | CAP SEE FIGURE 05-016 YS., Start Serial: 0143 |
| . . | 2456U74F1 | [1] | LIGHT ASSY. | KOBHEAD Superseded by part number: 2456U74F3 |
| 4. | 2420Z699 | [1] | GROMMET | KOB |
| 5. | 2432Z270 | [4] | CLAMP | KOB |
| 6. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 7. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 8. | 2432Z309D1 | [10] | CLAMP | KOB |
| 9. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 10. | ZC45X22011 | [2] | CLIP | KOBClamp -- Ø22mm Single Cable Superseded by part number: ZC46X22011 |
| 11. | ZC45X29011 | [4] | CLIP | KOBClamp -- ID 29 x 54.5mm Single Cable Superseded by part number: ZC46X29011 |
| 12. | ZS18C12020 | [2] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 13. | ZN18C10008 | [9] | NUT | KOBM10x1.50mm |
| 14. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 15. | ZS18C08035 | [2] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| 16. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 17. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 18. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 19. | 2479Z994 | [1] | WIRE HARNESS | KOBYS., Serial Range: 0101-0102 |
| 20. | 2479R656 | [1] | WIRE HARNESS | KOB |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS, (E/G) |
| 22. | 2479T1549D2 | [1] | WIRE HARNESS | KOB |
| 23. | 2479T1549D1 | [1] | HARNESS | HARNESS |
| 24. | 2479T1545D3 | [1] | WIRE HARNESS | KOB |
| 25. | 2479T1545D5 | [1] | WIRE HARNESS | KOB |
| 27. | 2479T1634 | [1] | WIRE HARNESS | KOB |
| 28. | 2479T1608 | [1] | WIRE HARNESS | KOB |
| 29. | 2479T1608 | [1] | WIRE HARNESS | KOB |
| 30. | 2479Z970 | [1] | WIRE HARNESS | KOBYS., Serial Range: 0101-0102 |
| 31. | 2479N373 | [1] | WIRE HARNESS | KOB |
| 32. | 2479T1550 | [1] | WIRE HARNESS | KOB |
| 33. | 2479T845 | [1] | HARNESS | KOB |
| 34. | 2479T1564 | [1] | WIRE HARNESS | KOB |
| 35. | 2479N205 | [1] | WIRE HARNESS | KOB |
| 36. | 2487Z11 | [2] | COVER | KOB |
| 37. | 2487Z11D2 | [2] | COVER | KOB |
| 38. | 2416T15739 | [1] | BRACKET | KOB |
| 40. | 2479Z1076 | [1] | WIRE HARNESS | KOBYS., Start Serial: 0103 |
