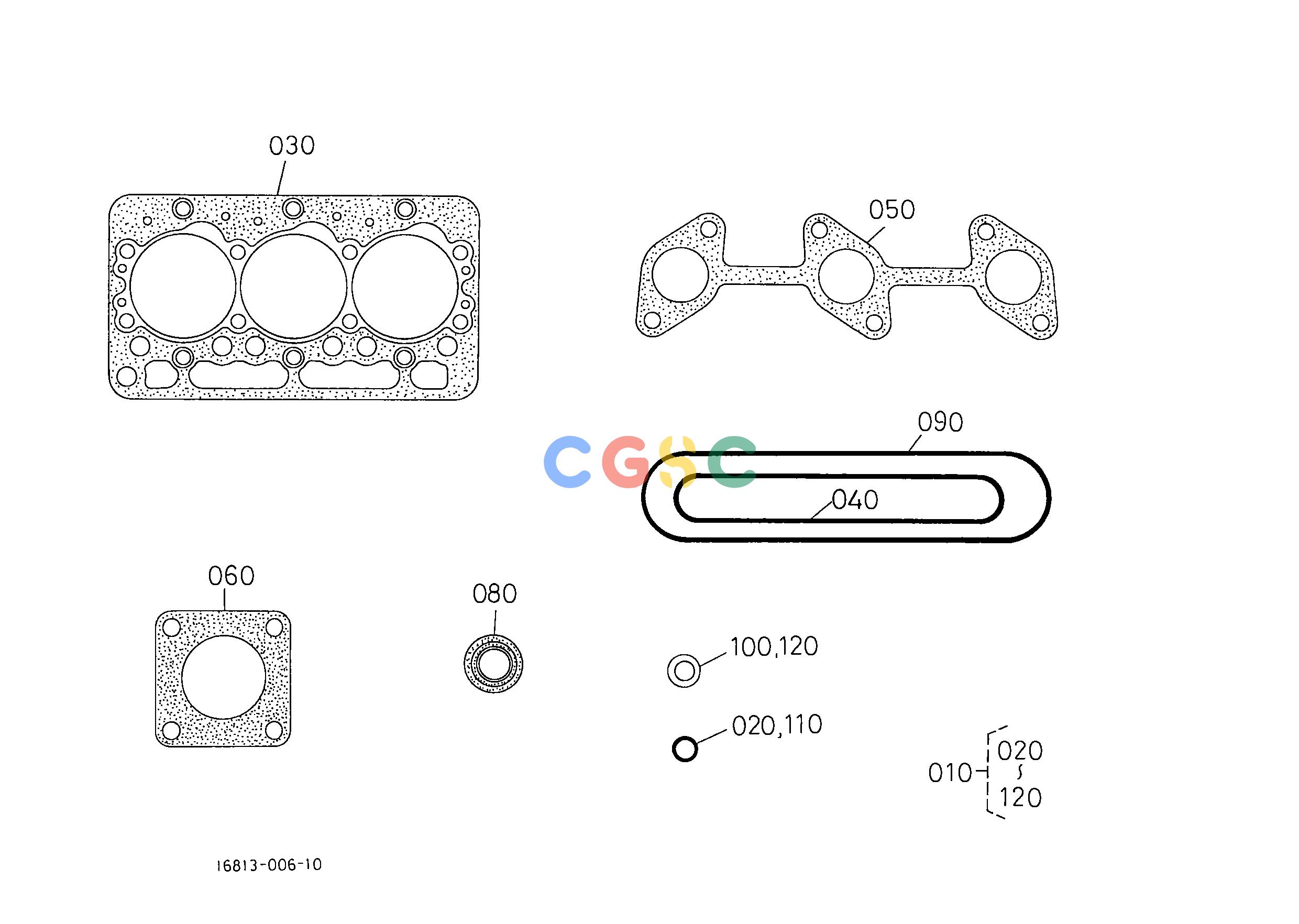

久保田零件查询T02500 UPPER GASKET KIT ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0791629475
|
[1] |
KIT GASKET UPPER
|
0.4180(lbs); 0.190
|
| 020. |
1522133700
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
1687103310
|
[1] |
GASKET CYLINDER HEAD
|
0.1826(lbs); 0.083
|
| 040. |
1586111820
|
[1] |
GASKET IN-MANIFOLD
|
0.0022(lbs); 0.001
|
| 050. |
1586212350
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 060. |
1526312370
|
[1] |
GASKET MUFFLER NA
|
0.0330(lbs); 0.015
|
| 080. |
1584113150
|
[6] |
SEAL VALVE STEM
|
0.0330(lbs); 0.015
|
| 090. |
1686114520
|
[1] |
GASKET HEAD COVER
|
0.0000(lbs); 0.000
|
| 090. |
1686114522
|
[1] |
GASKET HEAD COVER
|
0.0440(lbs); 0.020
|
| 100. |
1560196650
|
[3] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0481450300
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 120. |
1584153622
|
[3] |
GASKET
|
0.0044(lbs); 0.002
|
