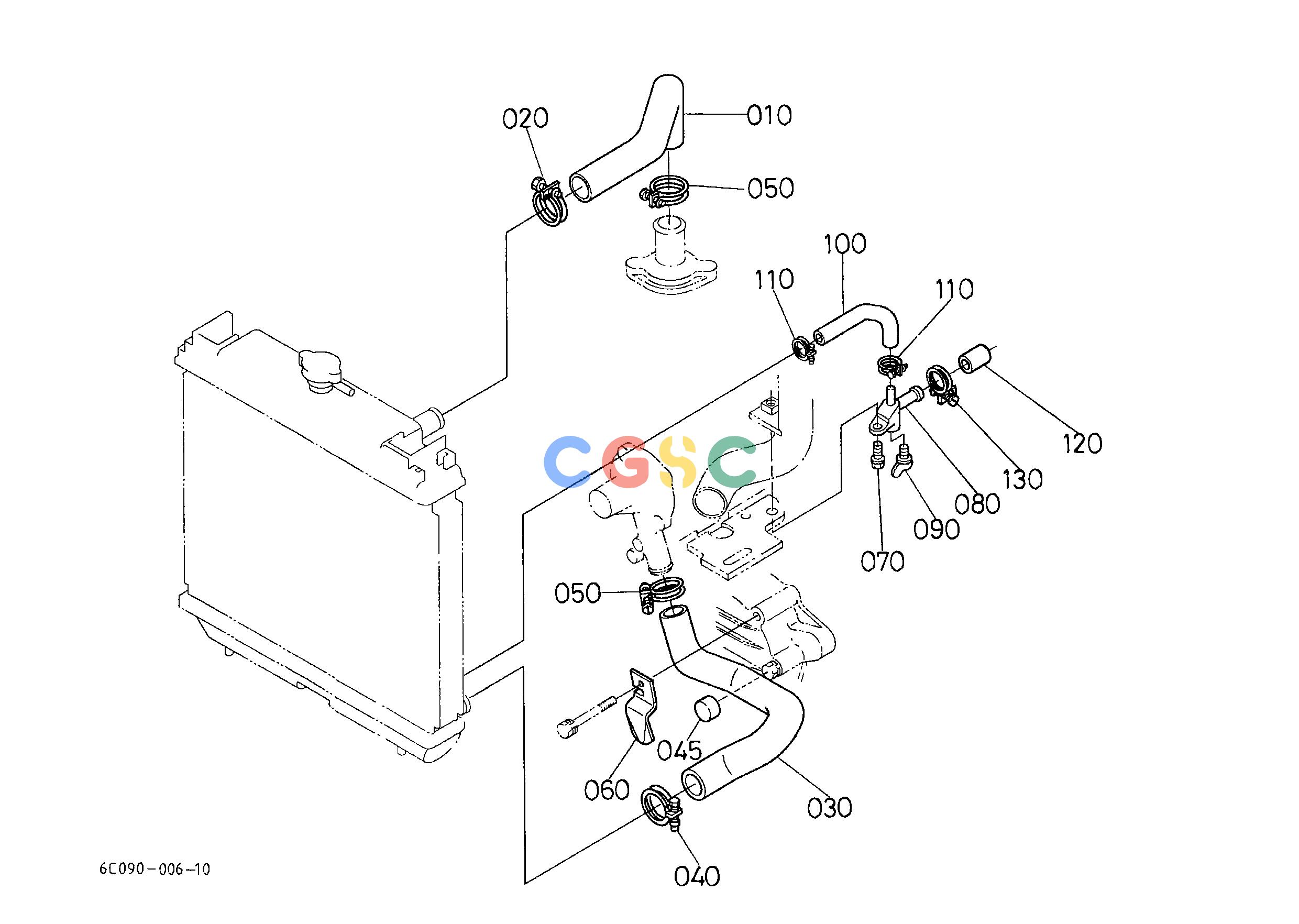

久保田零件查询T03000 WATER PIPE COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09058630
|
[1] |
HOSE WATER
|
0.1980(lbs); 0.090
|
| 020. |
6795558630
|
[1] |
CLAMP HOSE
|
0.0550(lbs); 0.025
|
| 030. |
6C09058570
|
[1] |
HOSE WATER
|
0.3080(lbs); 0.140
|
| 040. |
6795558630
|
[1] |
CLAMP HOSE
|
0.0550(lbs); 0.025
|
| 045. |
3F76056750
|
[1] |
CAP
|
0.0022(lbs); 0.001
|
| 050. |
0931889030
|
[2] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 060. |
6C09058642
|
[1] |
CLAMP WATER HOSE
|
0.0000(lbs); 0.000
|
| 070. |
0112550822
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
6C04058650
|
[1] |
COCK
|
0.0374(lbs); 0.017
|
| 090. |
5536482110
|
[1] |
COCK DRAIN
|
0.0110(lbs); 0.005
|
| 100. |
6C09058680
|
[1] |
HOSE DRAIN
|
0.0550(lbs); 0.025
|
| 110. |
6C04058720
|
[2] |
CLAMP HOSE
|
0.0374(lbs); 0.017
|
| 120. |
6C09058690
|
[1] |
CAP DRAIN
|
0.0154(lbs); 0.007
|
| 130. |
6C04058730
|
[1] |
CLAMP HOSE
|
0.0374(lbs); 0.017
|
