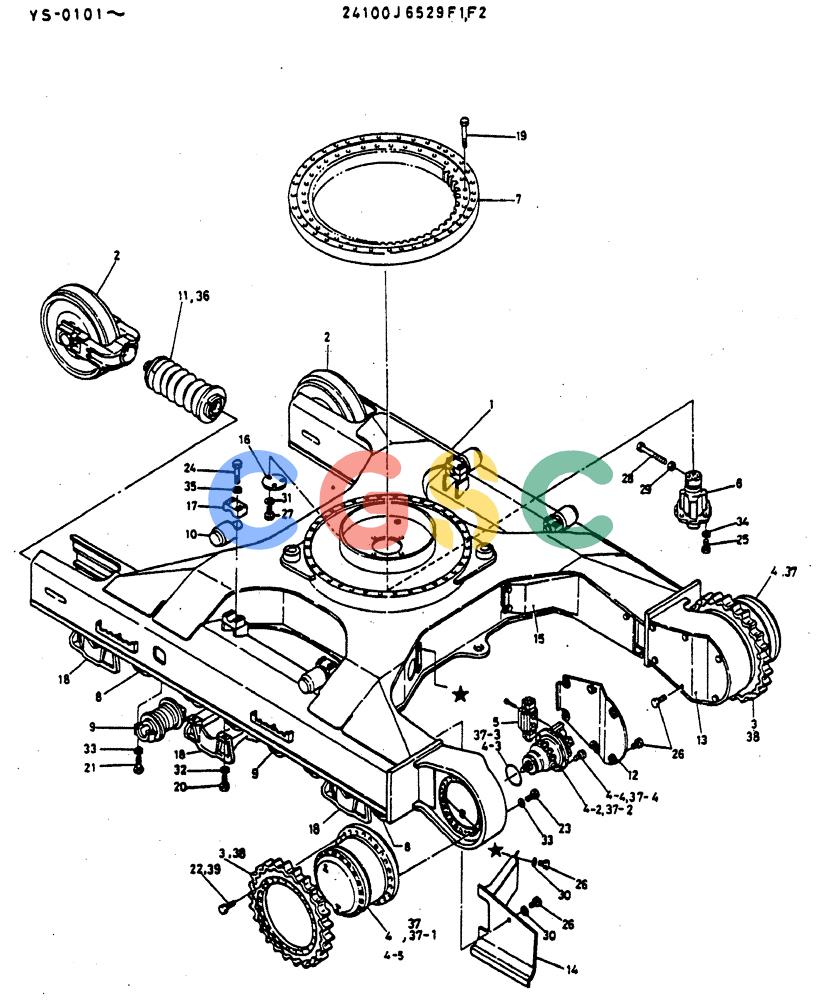

| . . | 24100J6529F1 | [1] | INSTAL, LOW, Serial Range: YS.0101-YS.0163 | |
| . . | 24100J6529F2 | [1] | INSTAL, LOW, Start Serial: YS.0101 | |
| 1. | 2422J1829 | [1] | FRAME, LOW | |
| 2. | 24100J4658F2 | [2] | IDLER WHEEL | KOBSEE FIGURE 06-003 |
| 3. | 2404J131 | [2] | DRIVING SPROCKET | KOB, Serial Range: YS.0101-0163 |
| 4. | 24100N3638F2 | [2] | REDUCTION ASSY MOTOR ASSY, Serial Range: YS.0101-0163 | REDUCTION ASSY MOTOR ASSY, Serial Range: YS.0101-0163 |
| 4-2. | 2441U432F2 | [1] | HYDRAULIC PUMP | KOBSEE FIGURE (C.P.M.), Serial Range: YS.0101-0163 |
| 4-3. | ZD11G28000 | [1] | O-RING,279.30mm ID x 290.70mm OD x 5.70mm | KOB, Serial Range: YS.0101-0163 |
| 4-4. | ZS23C16050 | [6] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm, Serial Range: YS.0163-0163 |
| 4-5. | 24100X1998F2 | [1] | REDUCER | KOBSEE FIGURE 06-007, Serial Range: YS.0101-0163 |
| 5. | 2436U856F2 | [2] | VALVE, COUNTERBLANCE SEE FIGURE (C.P.M.) | VALVE, COUNTERBLANCE SEE FIGURE (C.P.M.) |
| 6. | 2436U1044F2 | [1] | HYDRAULIC SWIVEL | KOBSEE FIGURE (C.P.M.) Superseded by part number: LS55V00001F1 |
| 7. | 24100N3815F1 | [1] | RING, SLEWING BEARING ASSY, SEE FIGURE 06-009 | RING, SLEWING BEARING ASSY, SEE FIGURE 06-009 |
| 8. | 24100J4396F6 | [9] | TRACK ROLLER | KOBSEE FIGURE 06-004 Superseded by part number: 24100J4396F10 |
| 9. | 24100J4396F3 | [10] | ROLLER ASSY, SEE FIGURE 06-004 | |
| 10. | 24100N3841F2 | [4] | TRACK ROLLER | KOBSEE FIGURE 06-005 Superseded by part number: 24100N3841F4 |
| 11. | 24100J7702F1 | [2] | TRACK ASSY | KOBSEE FIGURE 06-006, Serial Range: YS.0101-0163 |
| 12. | 2414N2905D1 | [1] | COVER | |
| 13. | 2414N2905D2 | [1] | COVER | COVER |
| 14. | 2414N3921D2 | [1] | | |
| 15. | 2414N3921D1 | [1] | COVER | COVER |
| 16. | 2414T1412 | [1] | COVER | KOB |
| 17. | 2416T10484 | [4] | SUPPORT | SUPPORT |
| 18. | 2414P4776 | [6] | GUIDE | KOB Superseded by part number: 2414P4776K |
| 19. | 2420Z1627 | [36] | SCREW | KOB Superseded by part number: 2420Z1331 |
| 20. | 2420Z1621 | [24] | SCREW | KOB |
| 21. | 2420Z1629 | [72] | SCREW | KOB Superseded by part number: 2420Z1313 |
| 22. | ZS18C22065 | [48] | SCREW,Hex, M22 x 65mm | KOB |
| 23. | ZS18C22070 | [48] | CAPSCREW, Serial Range: YS.0101-0163 | |
| 24. | ZS18C22085 | [16] | SCREW,Hex, M22 x 85mm | KOB |
| 25. | ZS18C16050 | [4] | SCREW,Hex, M16 x 50mm | KOBM16x2.0x50mm |
| 26. | ZS18C16025 | [22] | SCREW,Hex, M16 x 25mm | KOBM16x2.0x25mm |
| 27. | ZS18C10014 | [3] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 28. | ZS18C24170 | [1] | SCREW,Hex, M24 x 170mm | KOBM24x3.0x170mm |
| 29. | ZN18C24019 | [1] | NUT | KOBM24x3.0mm |
| 30. | ZW26X16000 | [10] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 31. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW16H24000 | [24] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 33. | ZW16H22000 | [120] | WASHER | KOBID 23 x OD 44 x Th 6.0mm |
| 34. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 35. | ZW16H20000 | [16] | WASHER | KOBID 21 x OD 40 x Th 4.5mm |
| 36. | 24100J7702F2 | [2] | SPRING ASSY, TRACK, SEE FIGURE 06-008, Start Serial: YS.0164 | |
| 37. | 24100N5519F1 | [2] | MOTOR ASSY, Start Serial: YS.0164 | |
| 37-1. | 24100J10265F1 | [1] | REDUCER | KOBSEE FIGURE 06-008, Start Serial: YS.0164 |
| 37-2. | 2441U432F2 | [1] | HYDRAULIC PUMP | KOBSEE FIGURE (C.P.M.), Start Serial: YS.0164 |
| 37-3. | ZD11G28000 | [1] | O-RING,279.30mm ID x 290.70mm OD x 5.70mm | KOB, Start Serial: YS.0164 |
| 37-4. | ZS23C16050 | [6] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm, Start Serial: YS.0164 |
| 38. | 2404N258 | [2] | SPROCKET, Start Serial: YS.0164 | SPROCKET, Start Serial: YS.0164 |
| 39. | ZS18C24065 | [48] | SCREW,Hex, M24 x 65mm | KOBM24x3.0x65mm, Start Serial: YS.0164 |
