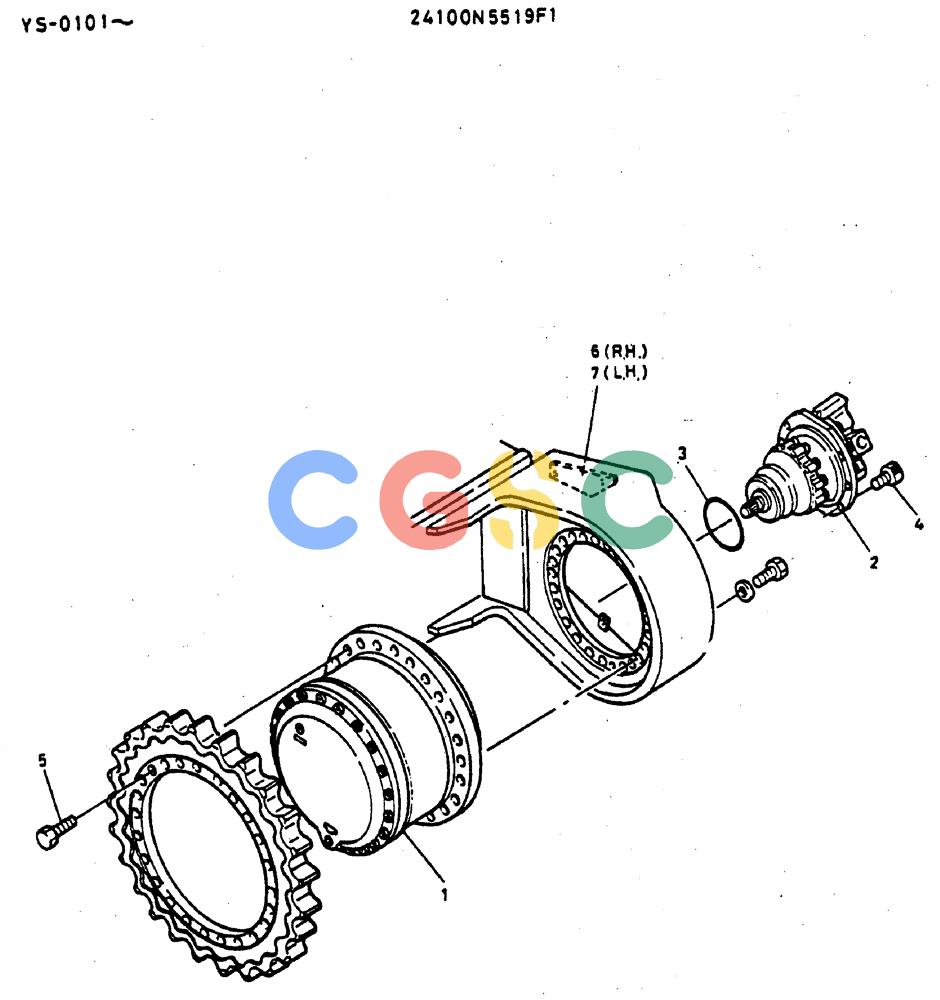

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (06-002) - MOTOR ASSY, PROPEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
901 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5519F1 | [1] | MOTOR ASSY, PROPEL | |
| 1. | 24100J10265F1 | [1] | REDUCER | KOBSEE FIGURE 06-008 |
| 2. | 2441U432F2 | [1] | HYDRAULIC PUMP | KOBMOTOR, SEE FIGURE (C.P.M.) |
| 3. | ZD11G28000 | [1] | O-RING,279.30mm ID x 290.70mm OD x 5.70mm | KOB |
| 4. | ZS23C16050 | [6] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 5. | ZS18C24065 | [48] | SCREW,Hex, M24 x 65mm | KOBM24x3.0x65mm |
| 6. | 2414J1851D1 | [1] | REWORK, HOUSING | |
| 7. | 2414J1851D2 | [1] | REWORK, HOUSING | |
