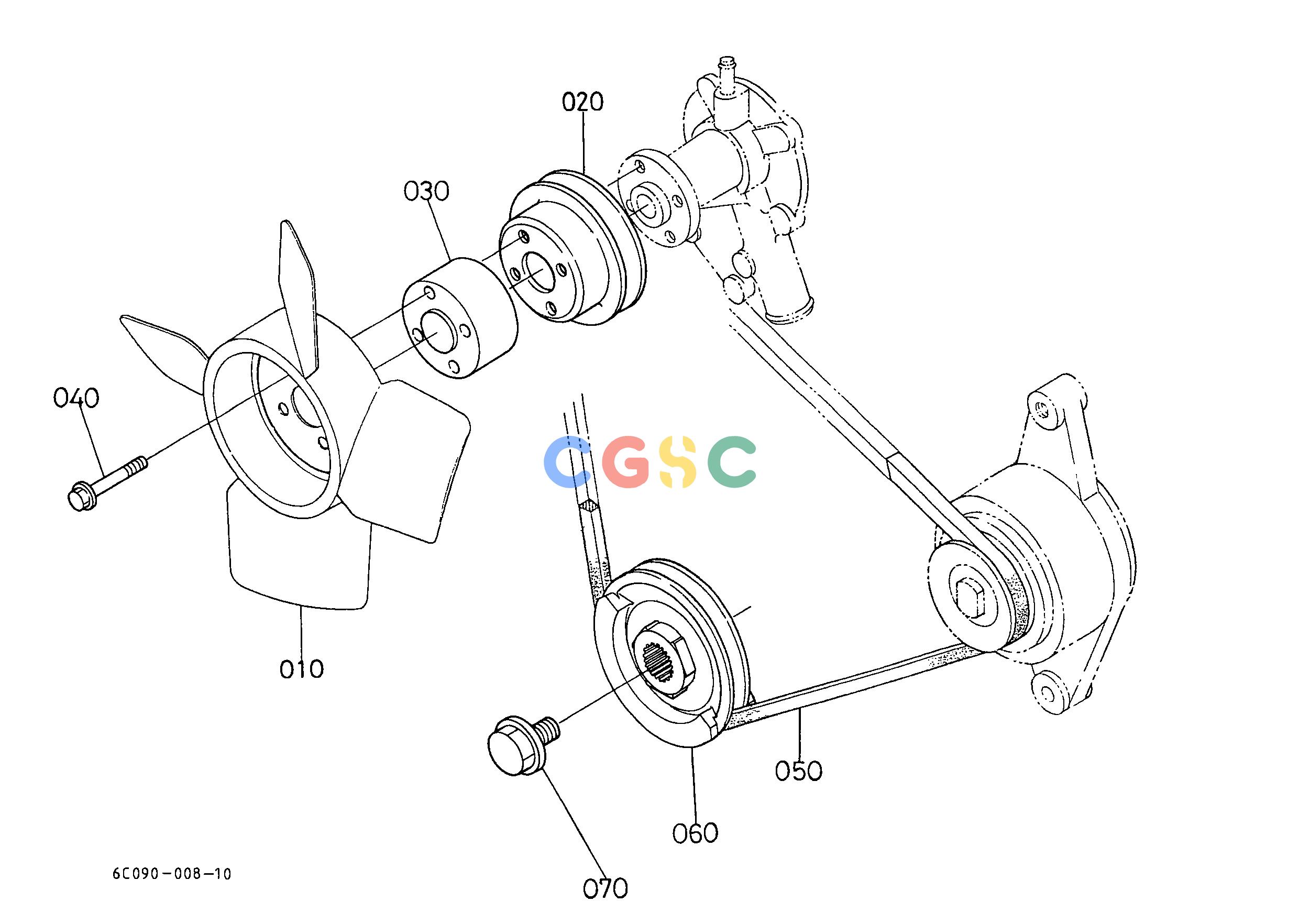

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1587274110 | [1] | FAN | 0.5500(lbs); 0.250 |
| 020. | 1584174250 | [1] | PULLEY FAN | 0.4180(lbs); 0.190 |
| 030. | 1567974150 | [1] | COLLAR FAN | 0.2860(lbs); 0.130 |
| 040. | 1568791020 | [4] | BOLT FLANGE | 0.0220(lbs); 0.010 |
| 050. | 1588197010 | [1] | V BELT | 0.1760(lbs); 0.080 |
| 060. | 1687574280 | [1] | PULLEY FAN DRIVE | 1.8150(lbs); 0.825 |
| 070. | 1588191030 | [1] | BOLT | 0.1320(lbs); 0.060 |
